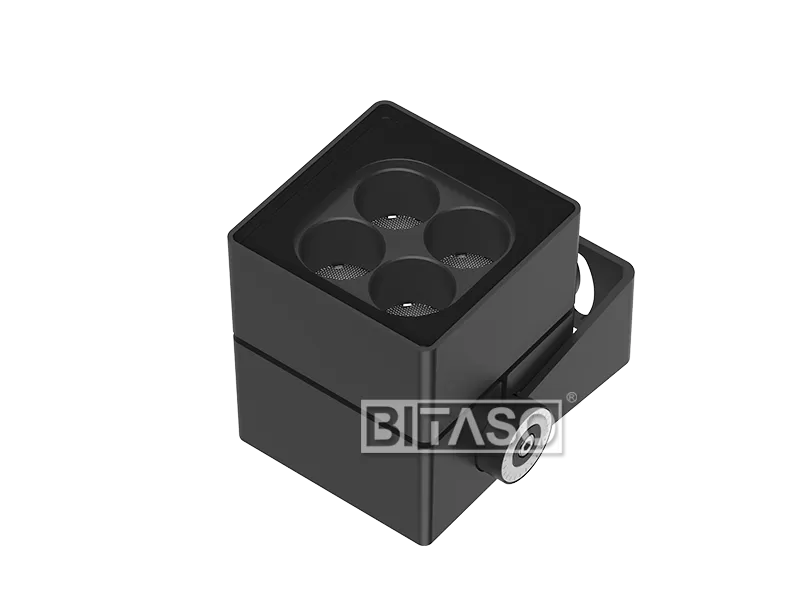

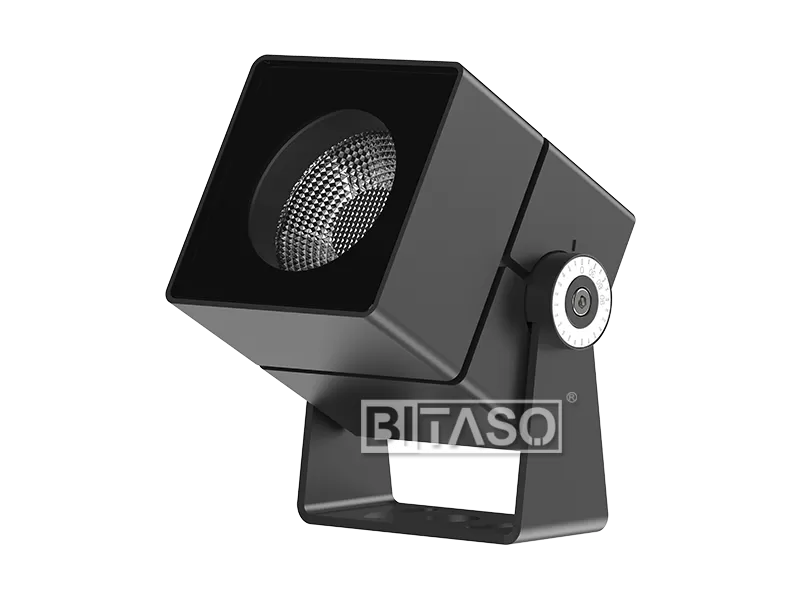

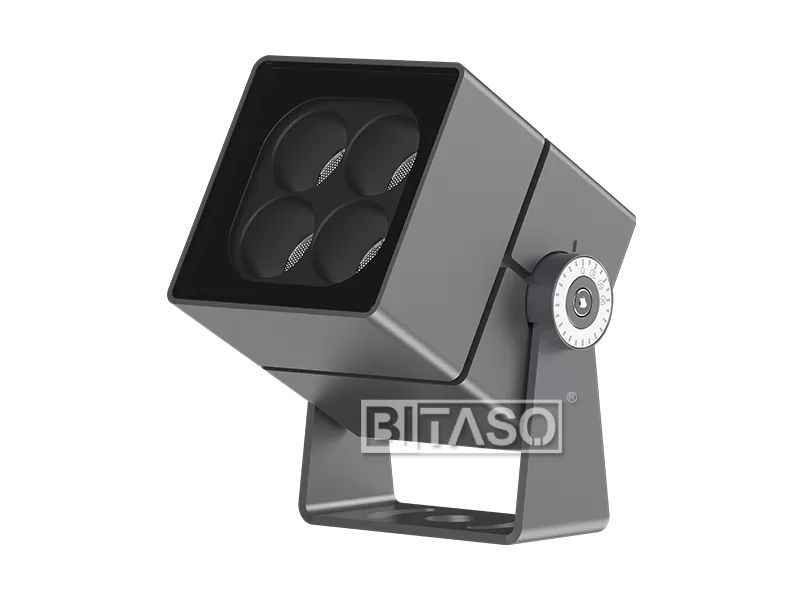

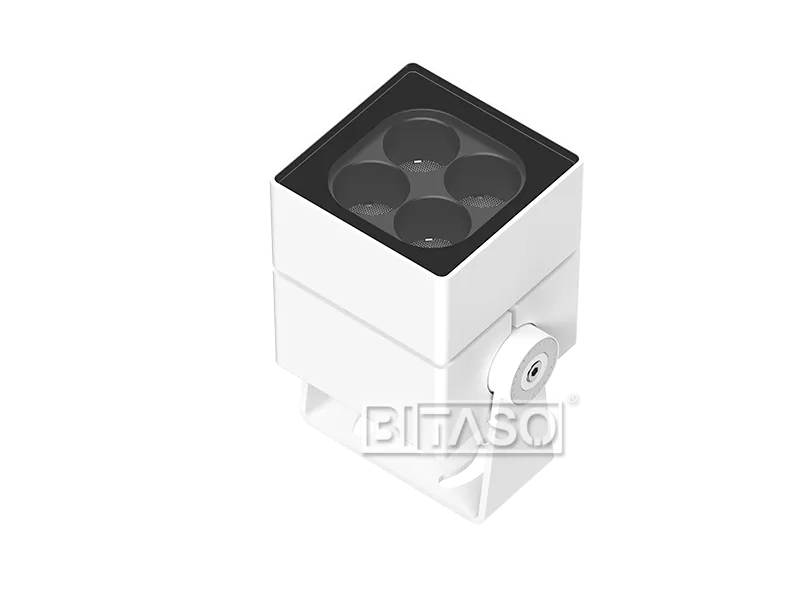

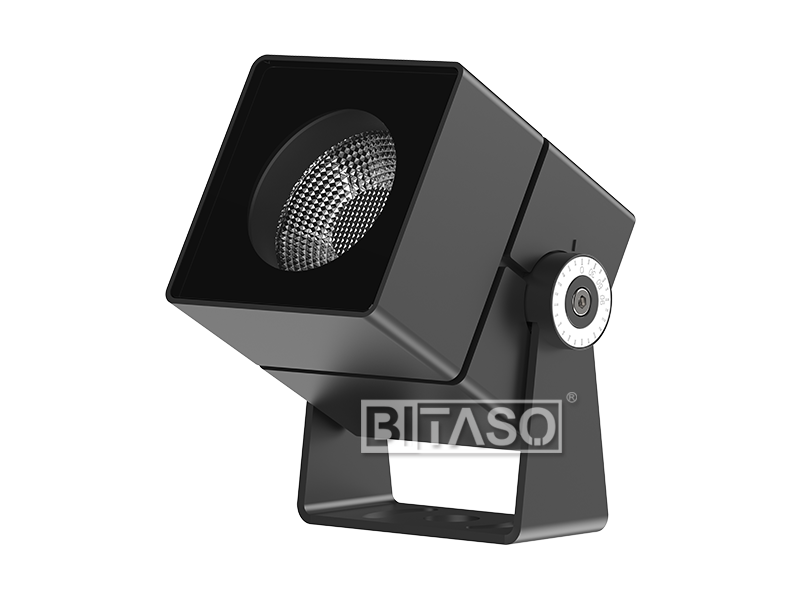

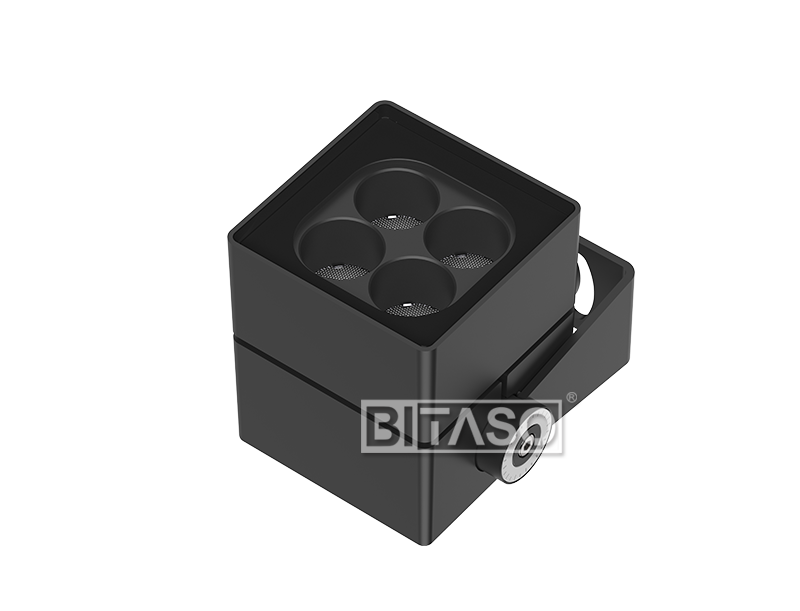

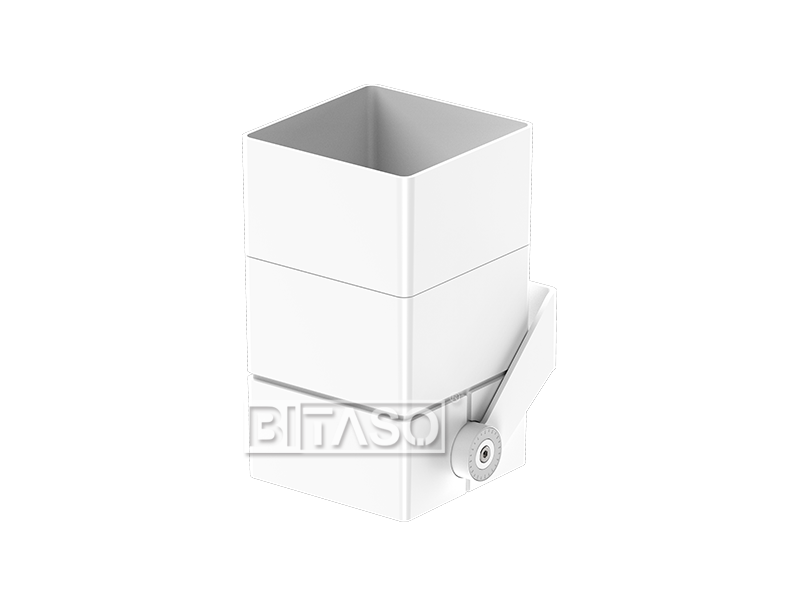

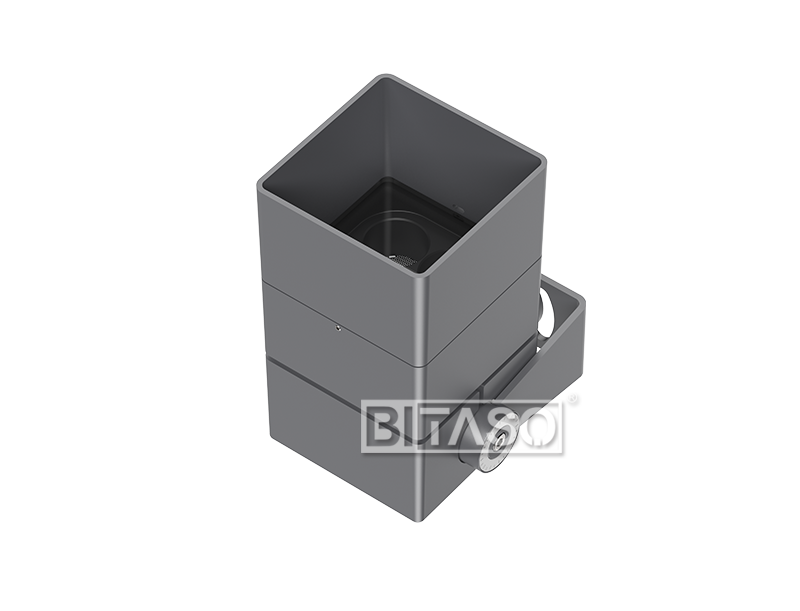

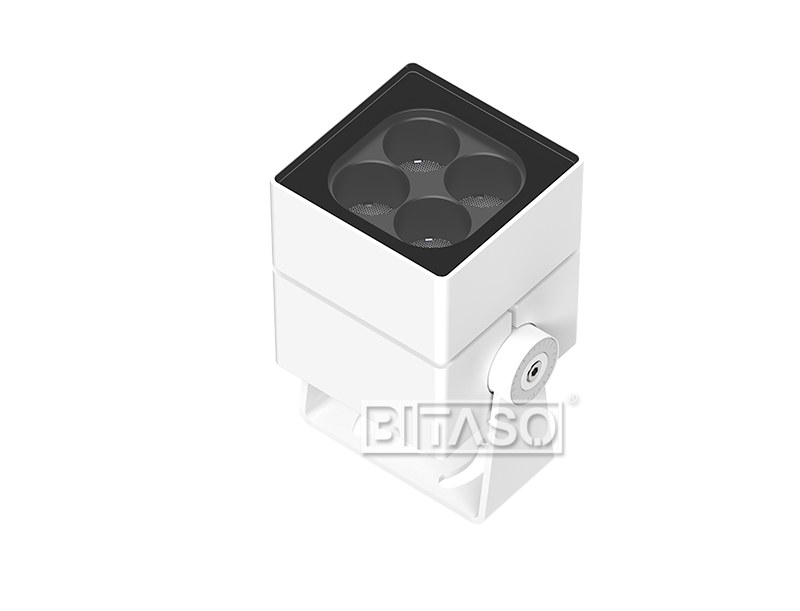

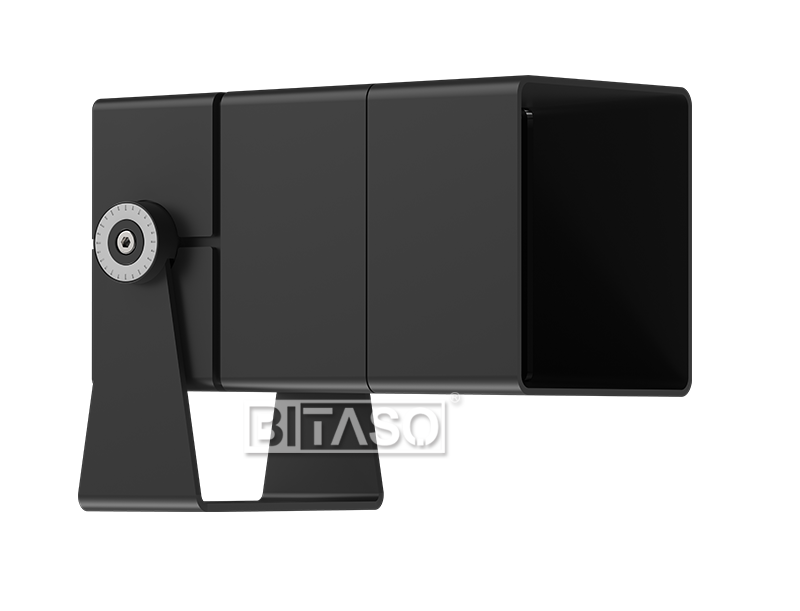

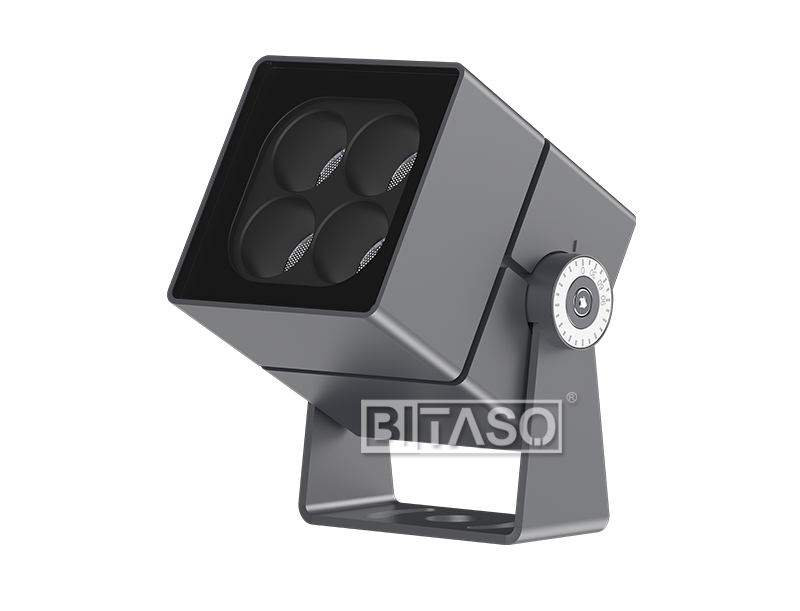

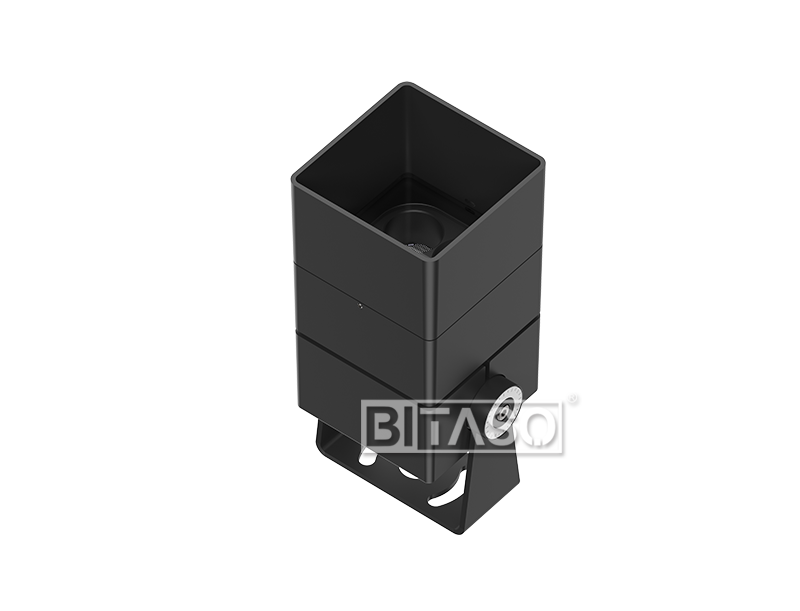

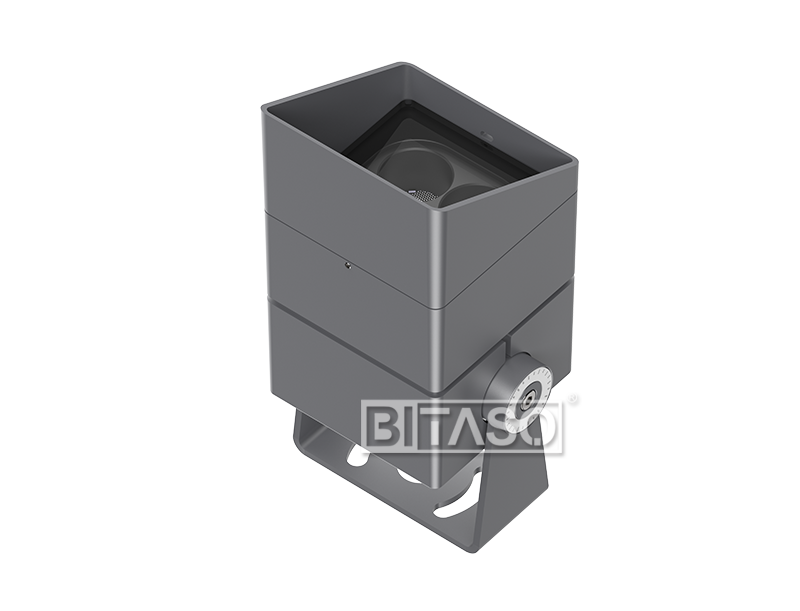

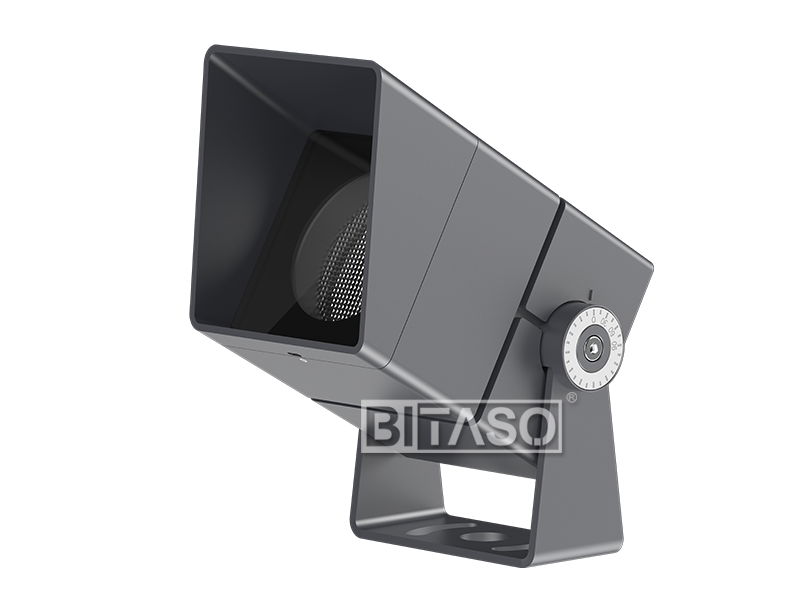

CUBIC D70 SMD

CUBIC series led square projector light, the surface mounted landscape lights with ADC12# die-casting aluminum, black/grey/white finished color. Better weatherproof performance, withstand different outdoor weather.

Bright and warm lighting, 1.5W-32W, 2200-6500K, RGB, RGBW, Triac/0-10V/DALI/DMX512 dimmable, narrow beam 1°/3° led architectural projector luminaire. It can be widely used in garden, path, lawn, courtyard, patio, driveway, outdoor decoration. Let the 'darkness' have nowhere to hide.

ELECTRONICS

Power(Luminaire)2.5W/1-5W/6-9WPower Factor>0.9
Input VoltageDC12V DC24V DC36V DC48V AC110-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light Source4PCS SMDLumen(Luminaire):225LM, 90LM-450LM, 540LM-810LM
LED BrandOSRAM/CREE/TYANSHINE/LUMINUS SMDLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2200K,2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500KTunable White2700K/6500K
Multi ColorGreen, Red, Blue, Yellow, Amber, RGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle3°,5°,8°,10°,11°,20°,25°,30°,40°,45°,60°,10°x22°,20°x60°,etc.
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesCuboid hood Angle25°, Cuboid hood, Honeycomb Louver


CONTROL SYSTEM

ControlON/OFF, 0-10V, DALI, Triac, DMX512DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

MECHANICS

Dimension70x70x80mmWeight0.95KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishBlack/Grey/WhiteMounting TypeWall/Floor/Ground/Tree


OPTIONAL ACCESSORIES

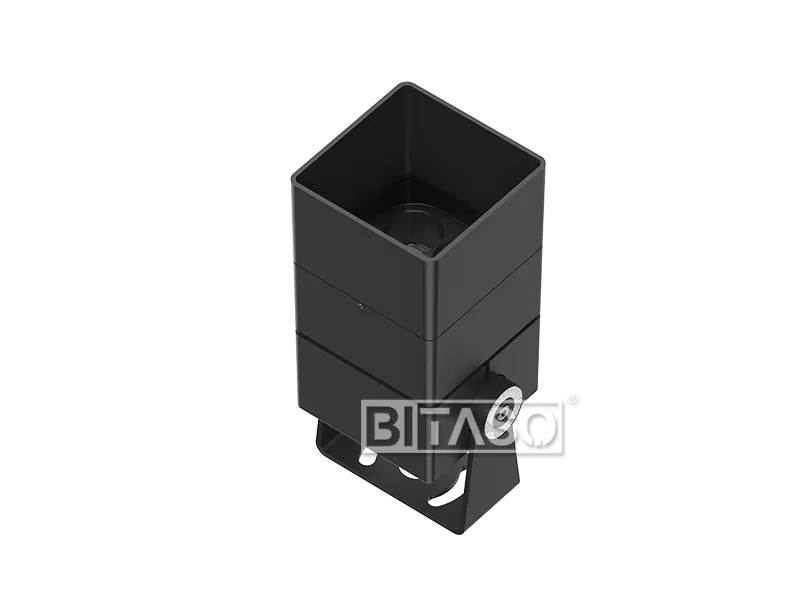

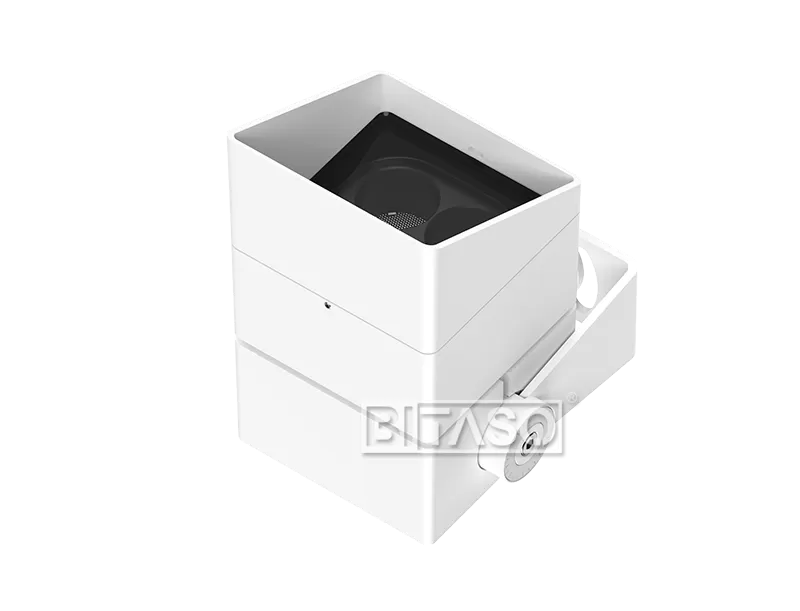

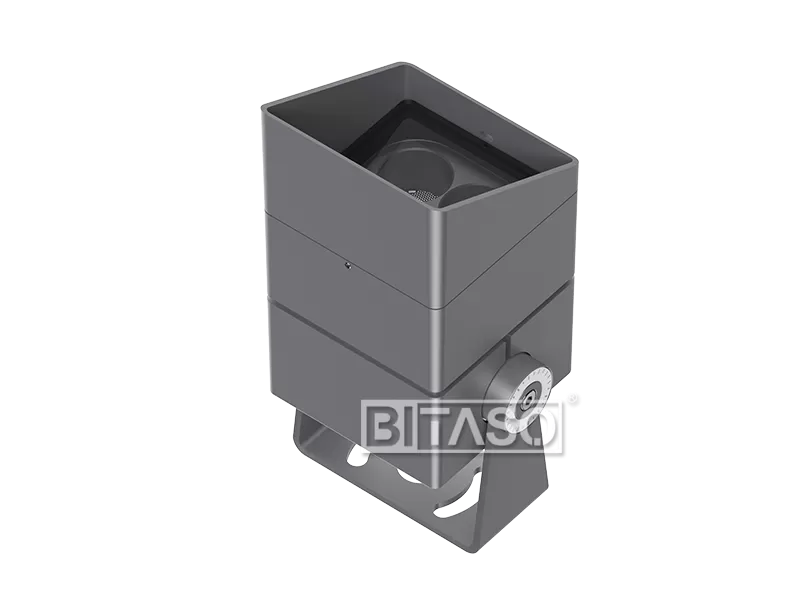

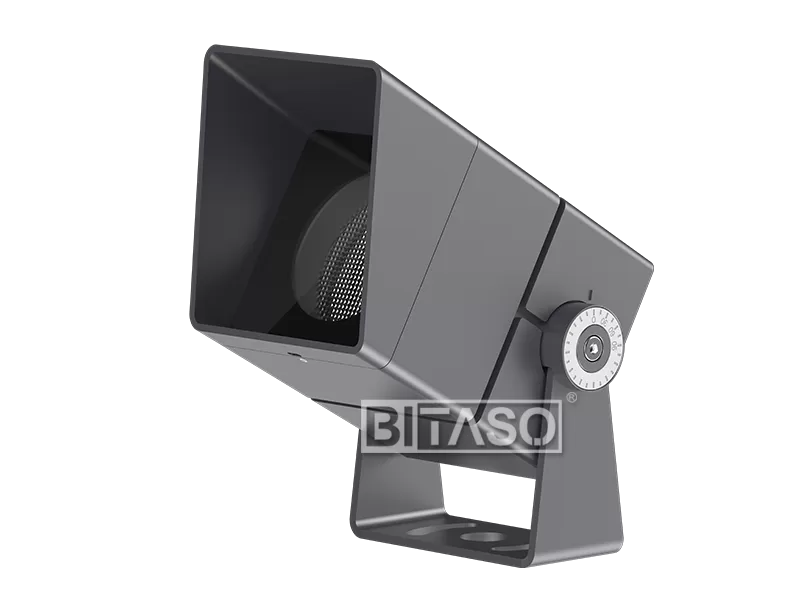

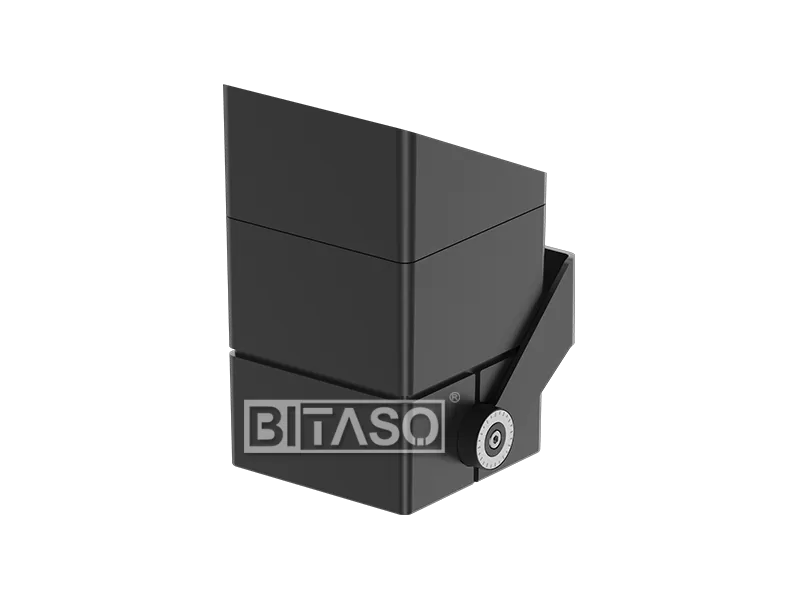

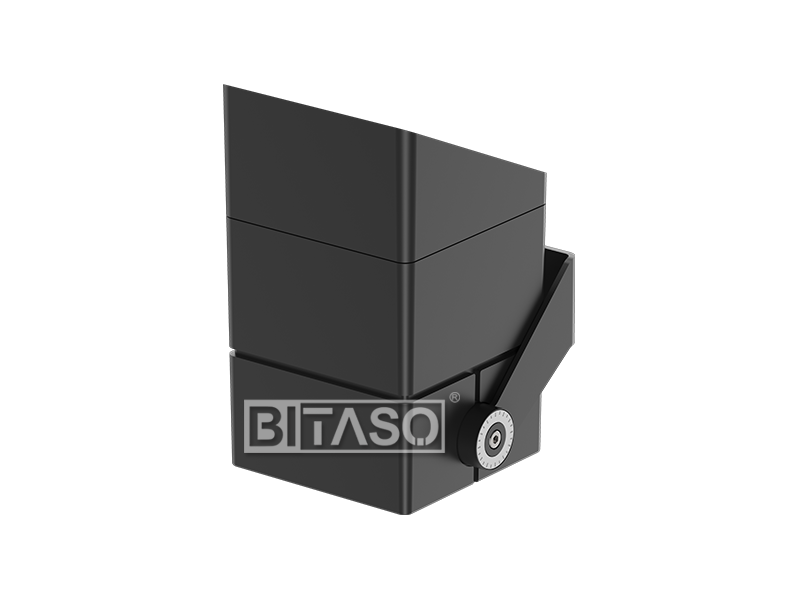

  • Cuboid Hood Angle25°

    Cuboid Hood Angle25°

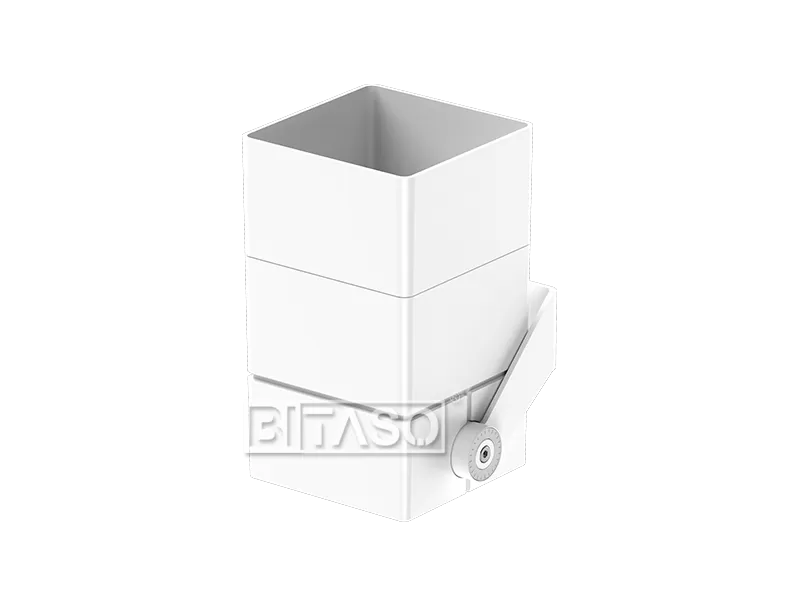

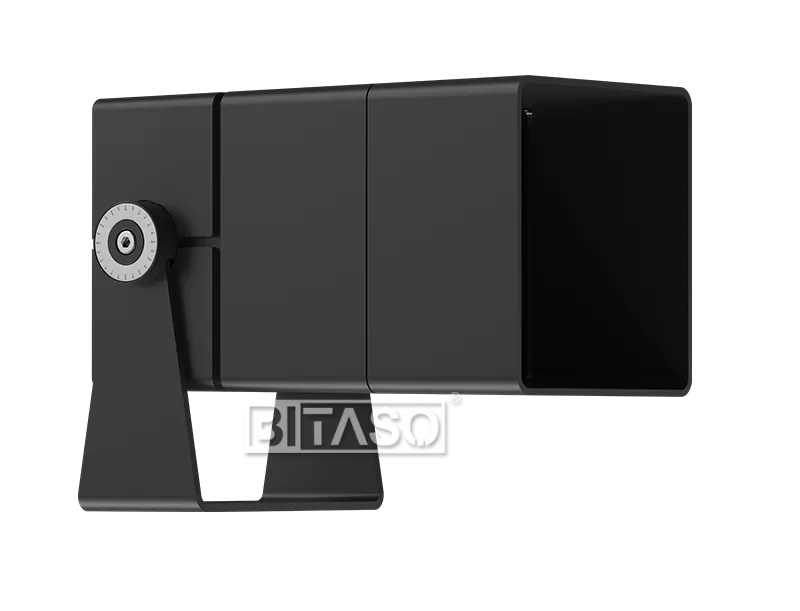

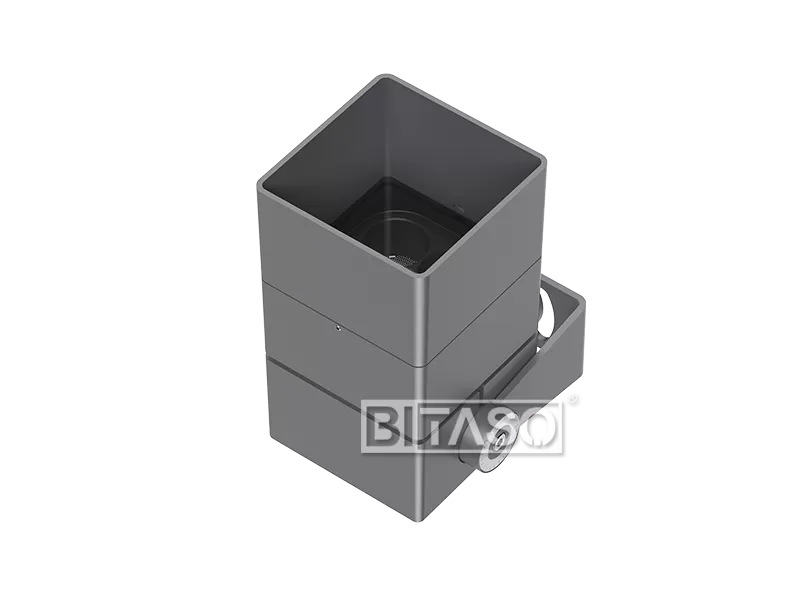

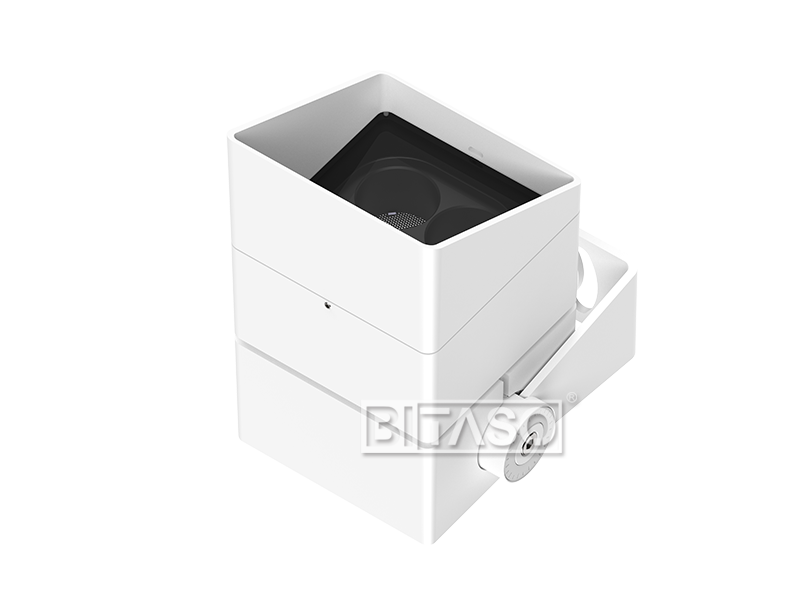

  • Cuboid Hood

    Cuboid Hood

  • Honeycomb Grille

    Honeycomb Grille

  • Honeycomb Louver

    Honeycomb Louver

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

  • PROJECT REFERENCE

    PROJECT REFERENCE
