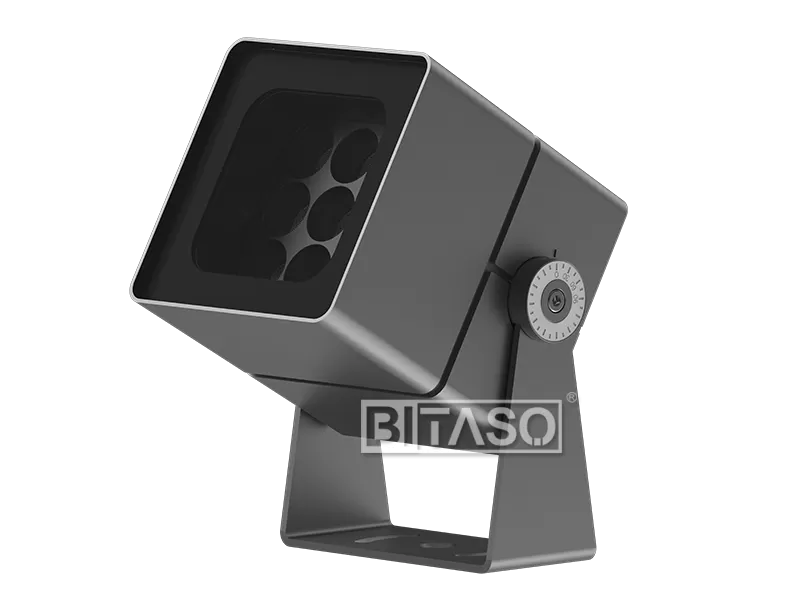

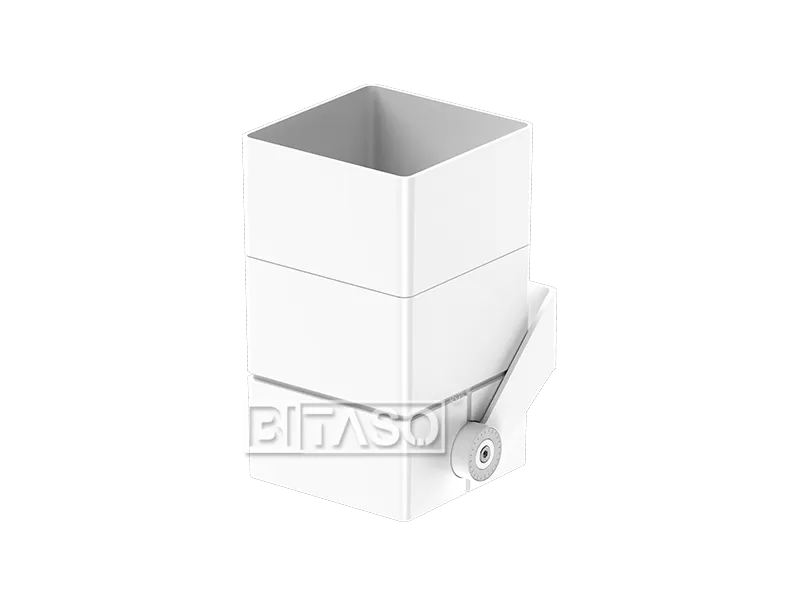

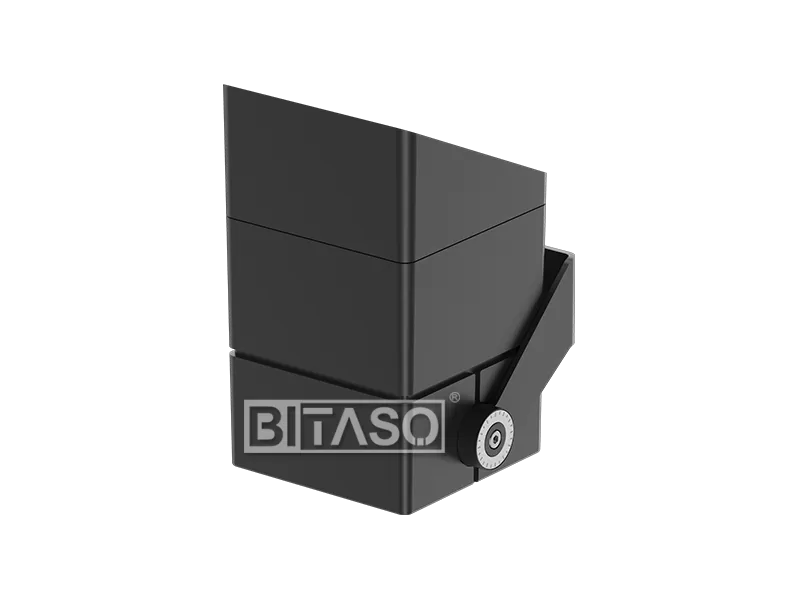

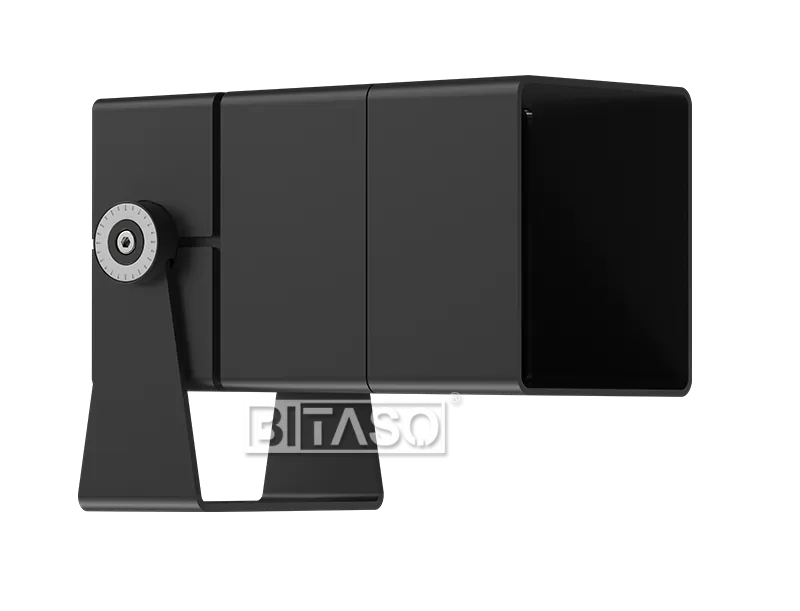

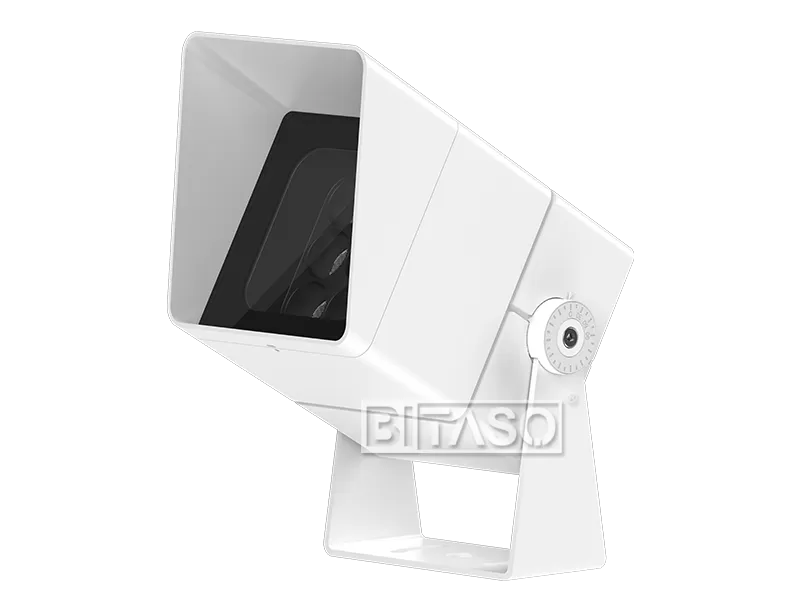

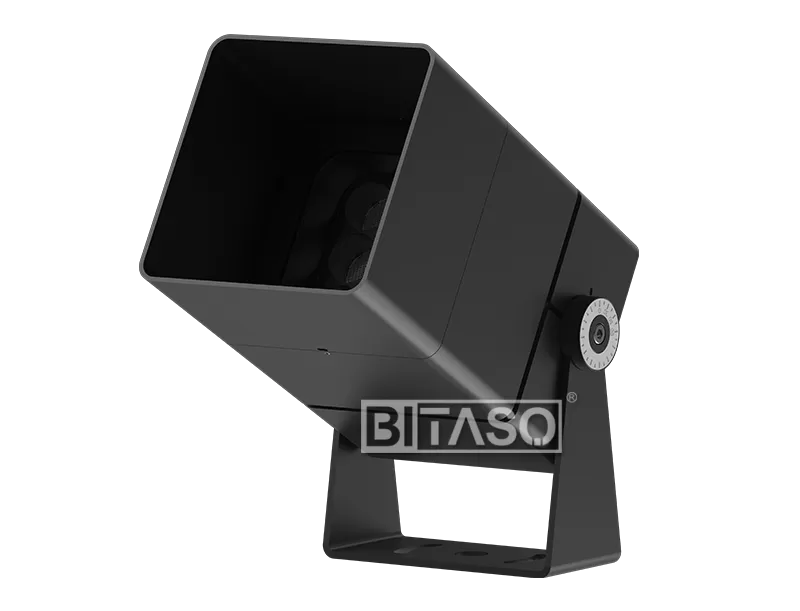

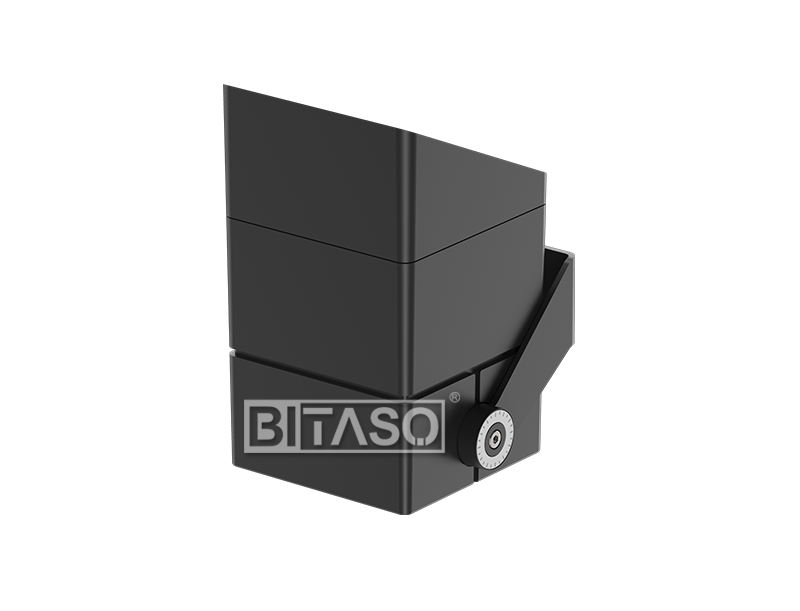

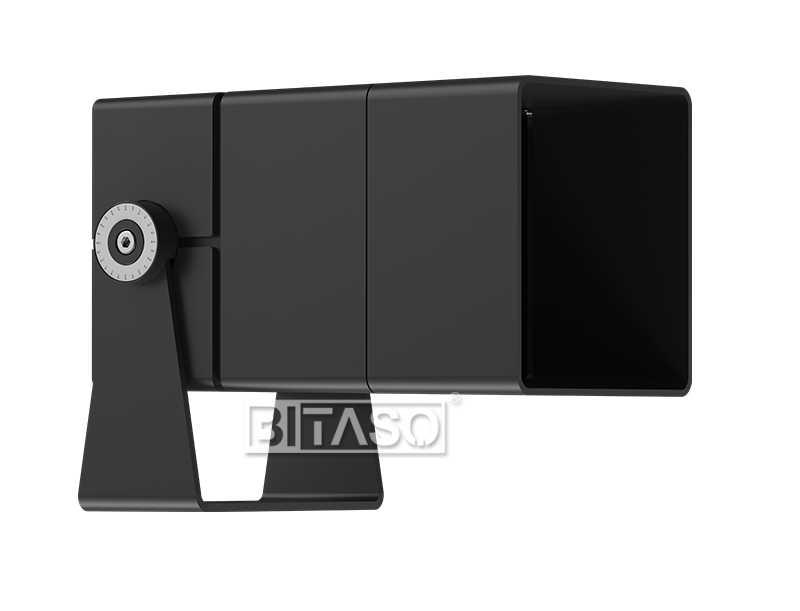

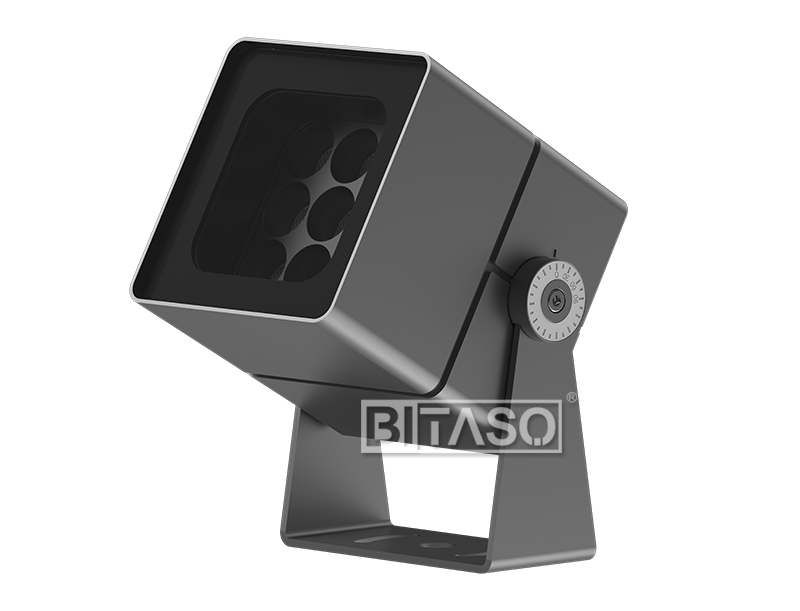

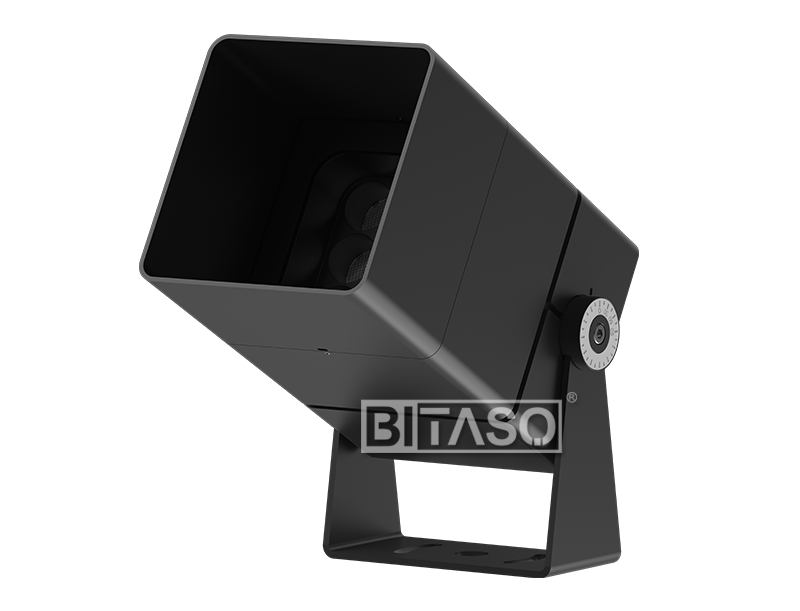

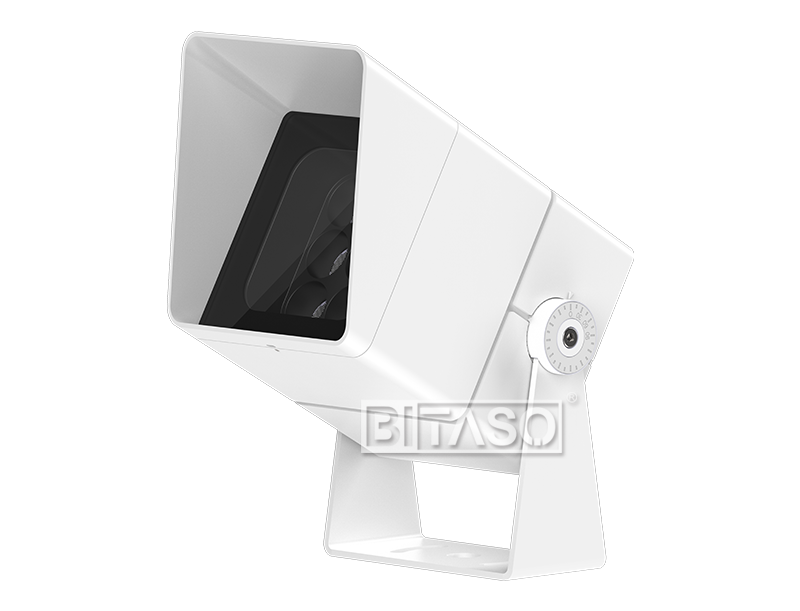

CUBIC D110 SMD

CUBIC series led square projector light, the surface mounted landscape lights with ADC12# die-casting aluminum, black/grey/white finished color. Better weatherproof performance, withstand different outdoor weather.

Bright and warm lighting, 1.5W-32W, 2200-6500K, RGB, RGBW, Triac/0-10V/DALI/DMX512 dimmable, narrow beam 1°/3° led architectural projector luminaire. It can be widely used in garden, path, lawn, courtyard, patio, driveway, outdoor decoration. Let the 'darkness' have nowhere to hide.

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	18-32W	Power Factor	>0.9
Input Voltage	DC12V DC24V DC36V DC48V AC110-240V 50/60Hz	Driver Option	Integral control gear
Dmming Type	ON/OFF, 0-10V,DALI, Triac, DMX512	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	2/3/4/5 Pin

OPTICS

Light Source	9PCS SMD	Lumen（Luminaire):	1620LM-2880LM
LED Brand	OSRAM/CREE/TYANSHINE SMD	Luminaire Lminous Efficacy	90LM/W
Full White LED(FW)	2200K,2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K	Tunable White	2700K/6500K
Multi Color	Green, Red, Blue, Yellow, Amber, RGB, RGBW	CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Angle	5°,8°,10°,12°,20°,25°,30°,40°45°,60°,10°x22°,20°x60°,etc.
MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Cuboid hood Angle25°, Cuboid hood, Honeycomb Louver

CONTROL SYSTEM

Control	ON/OFF, 0-10V,DALI, Triac, DMX512	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	ADC12# Die-casting aluminum housing
Compliance	IK08, IP66, Class I	Certificate	IP66, CE, ETL, RoHS, CCC

LIGHT DISTRIBUTION

MECHANICS

Dimension	110x110x120mm	Weight	2.55KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	ADC12# Die-casting aluminum housing
Finish	Black/Grey/White	Mounting Type	Wall/Floor/Ground

OPTIONAL ACCESSORIES

Cuboid Hood Angle25°
Cuboid Hood
Honeycomb Grille
Honeycomb Louver
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

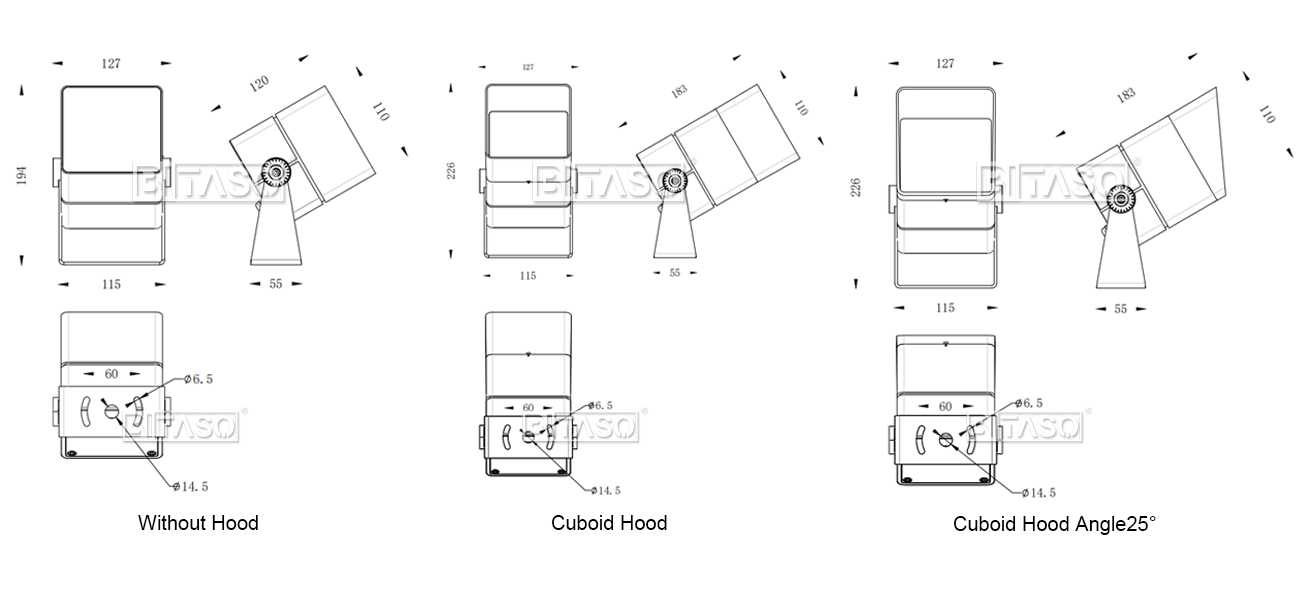

LUMINAIRE DIMENSION

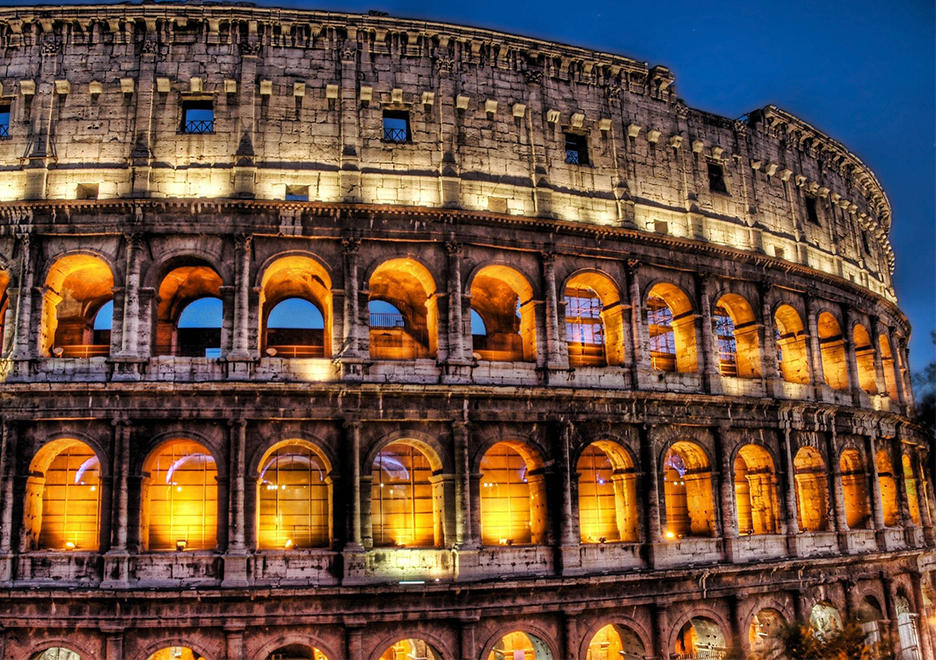

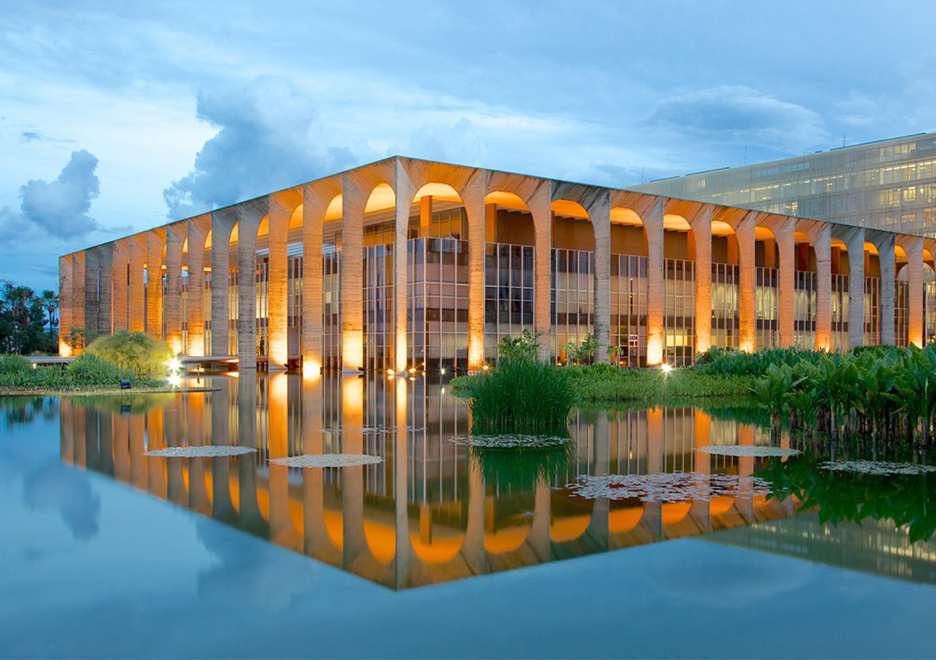

PROJECT REFERENCE

BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.

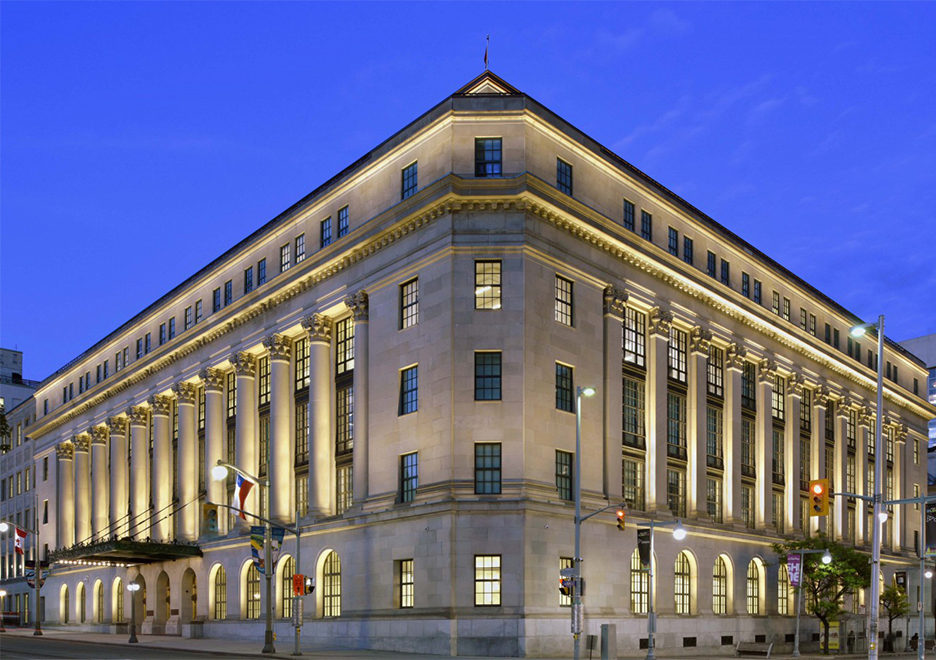

PROJECT REFERENCE

BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.

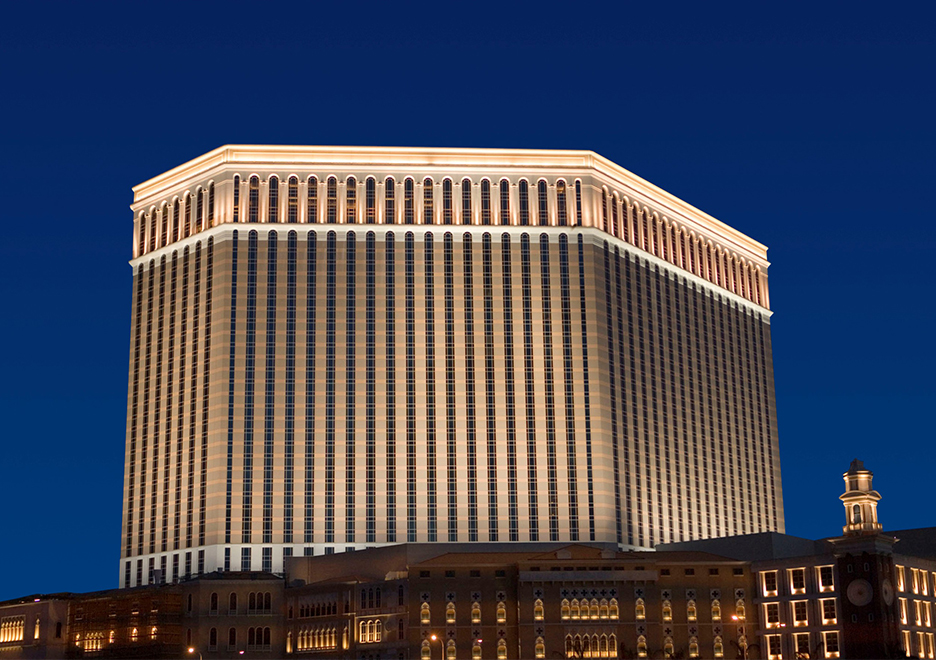

PROJECT REFERENCE
