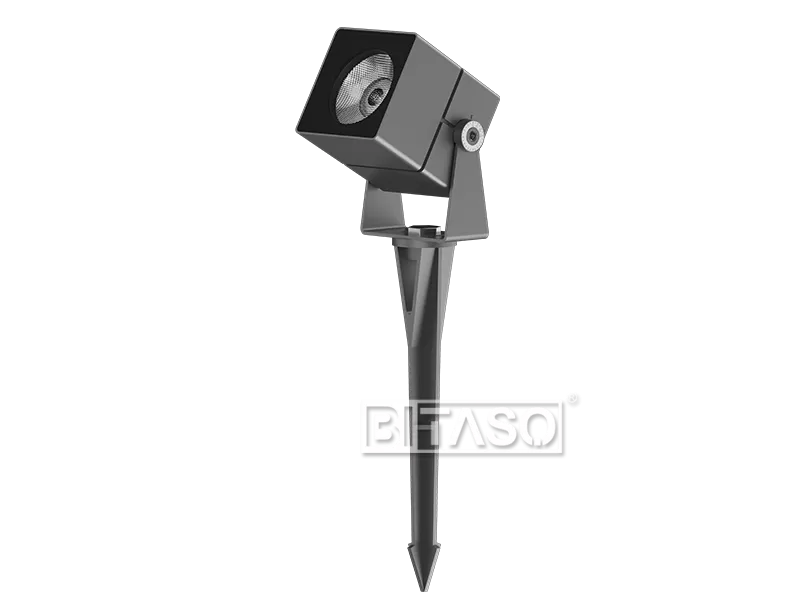

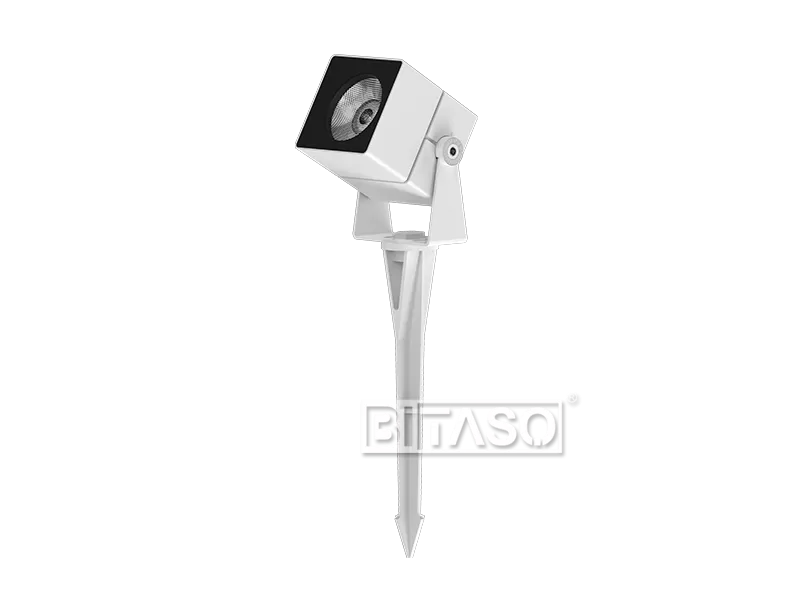

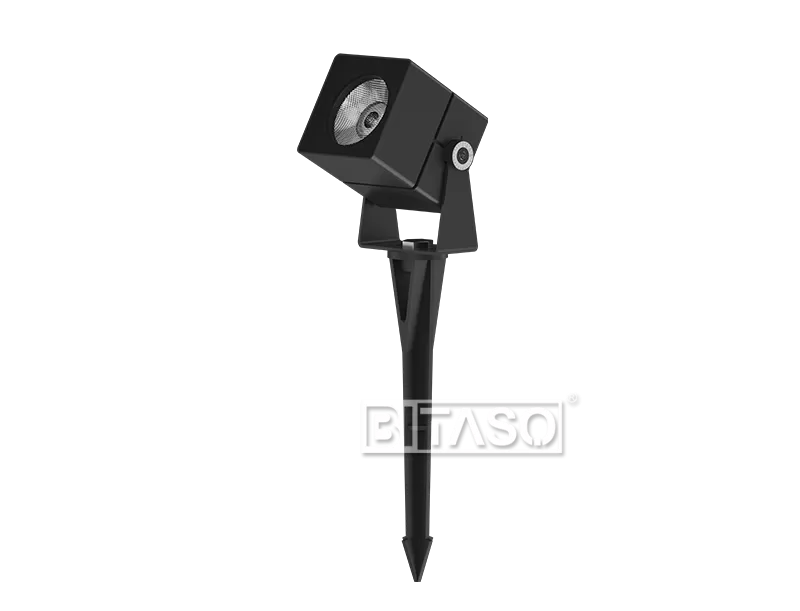

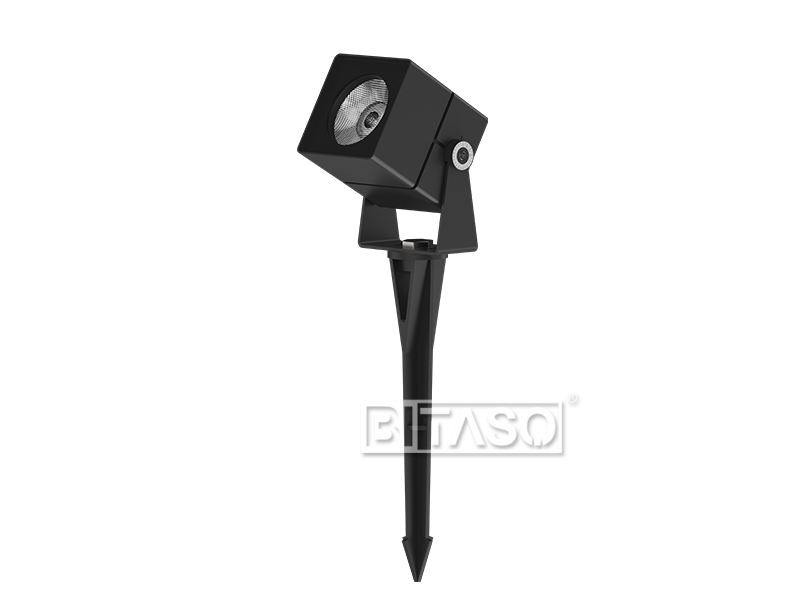

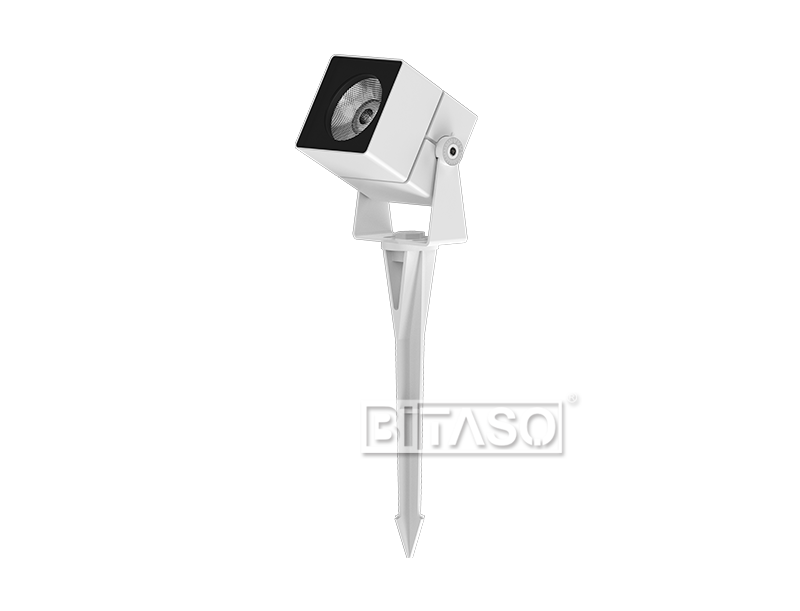

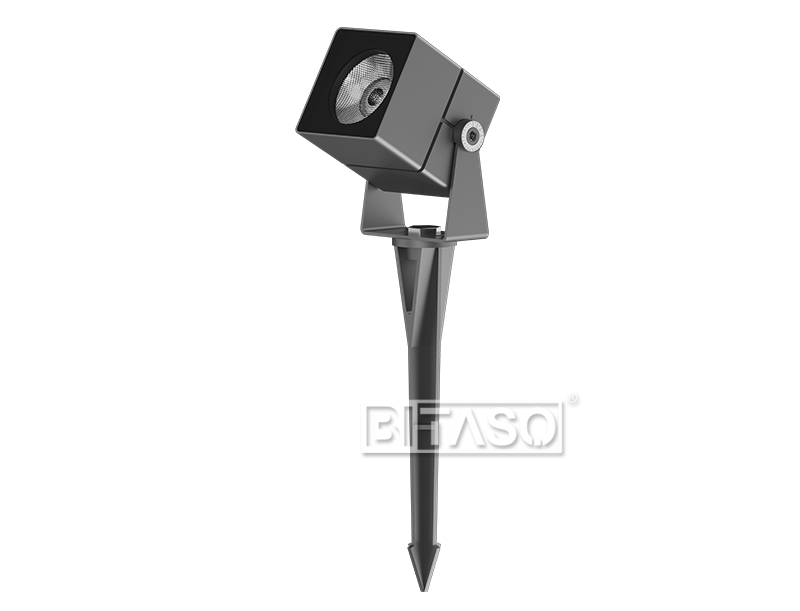

CUBIC D88 COB+Lens SPIKE

CUBIC landscape square spike projector lights with ADC12# die-casting aluminum, black/grey/white finished color. Better weatherproof performance, withstand different outdoor weather.

Bright and warm led outdoor spike lighting, CUBIC series architectural projector luminaire , 3W-24W, 2700-6500K, Triac/0-10V/DALI/DMX512 dimmable led architectural projector luminaire. It can be widely used in garden, path, lawn, courtyard, patio, driveway, outdoor decoration. Let the 'darkness' have nowhere to hide.

ELECTRONICS

Power(Luminaire)10-15WPower Factor>0.9
Input VoltageDC24V DC36V DC48V AC110-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light Source1PCS COBLumen(Luminaire):900LM-1350LM
LED BrandCREELuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500KTunable White
Multi Color
CRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle15°,24°,36°,60° (Lens)
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesCuboid hood Angle25°, Cuboid hood, Honeycomb Louver


CONTROL SYSTEM

ControlON/OFF, 0-10V, DALI, Triac, DMX512DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

MECHANICS

Dimension88x88x422mmWeight1.75KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishBlack/Grey/WhiteMounting TypeGround


OPTIONAL ACCESSORIES

  • Cuboid Hood Angle25°

    Cuboid Hood Angle25°

  • Cuboid Hood

    Cuboid Hood

  • Honeycomb Grille

    Honeycomb Grille

  • Honeycomb Louver

    Honeycomb Louver

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

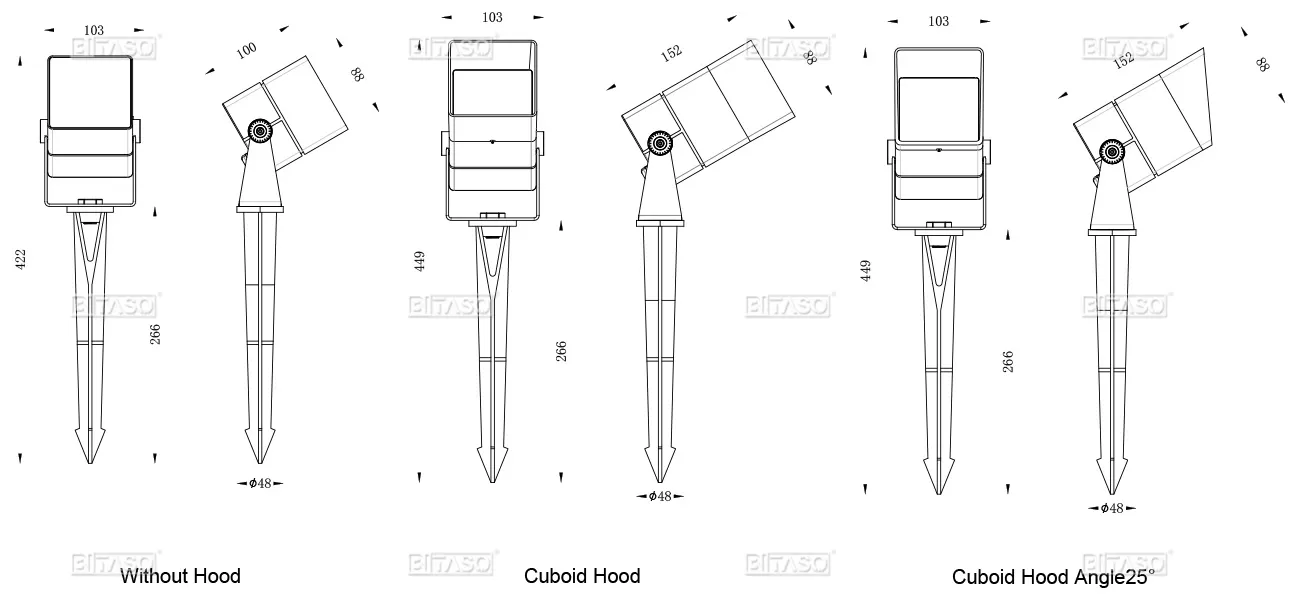

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

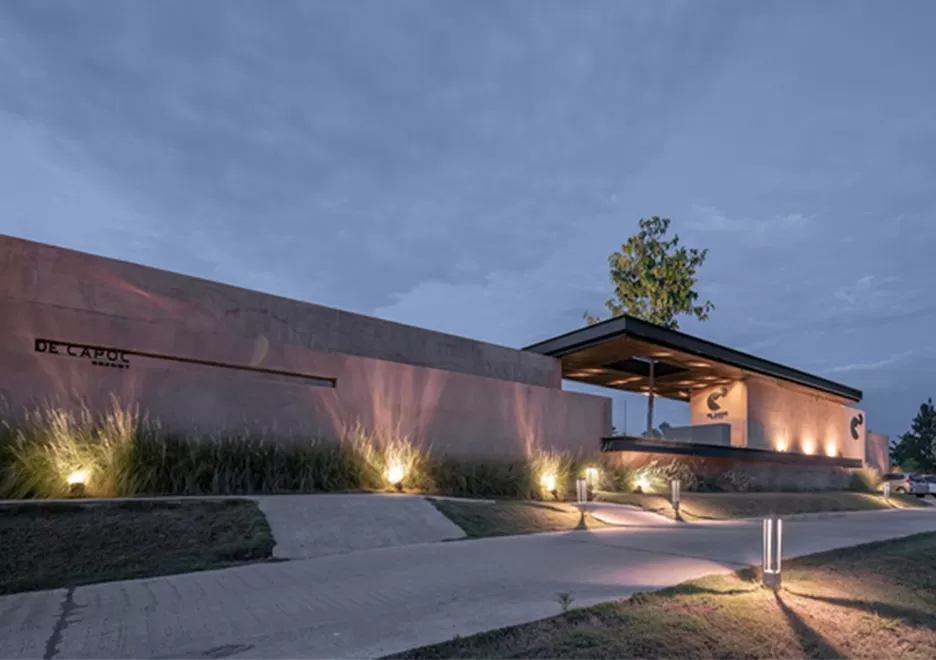

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.

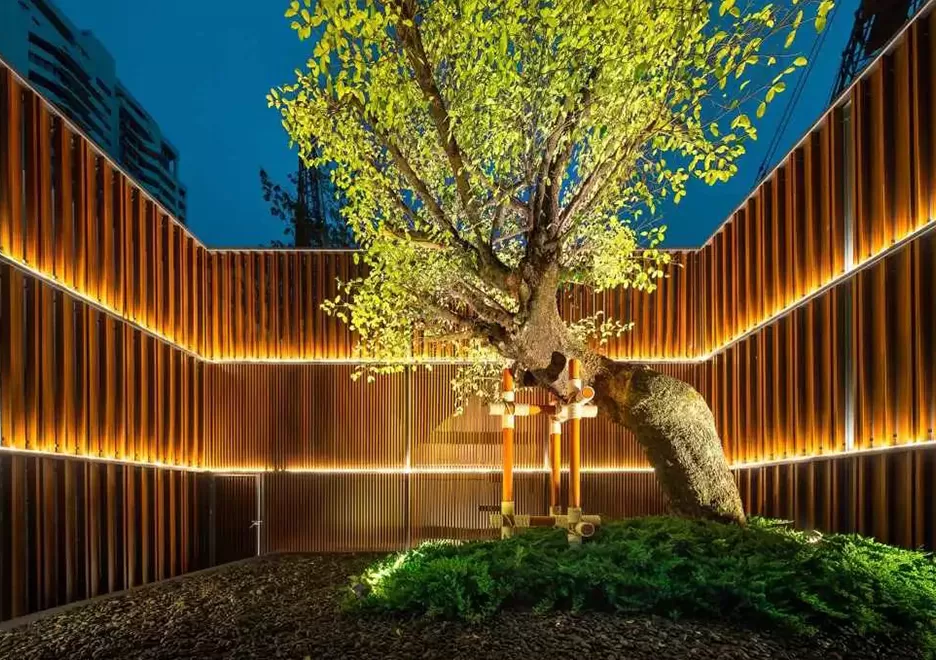

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.

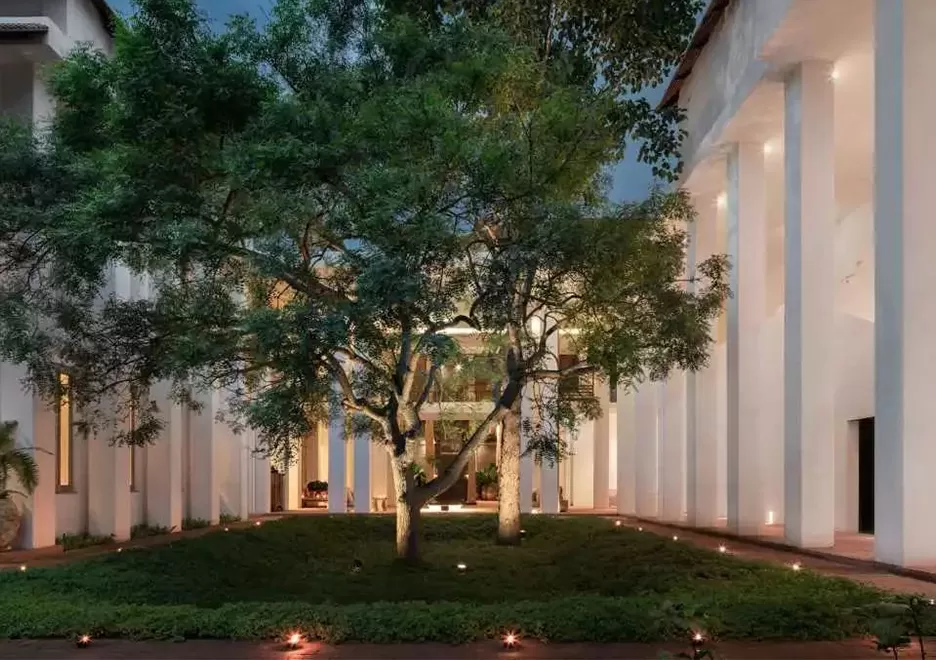

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.

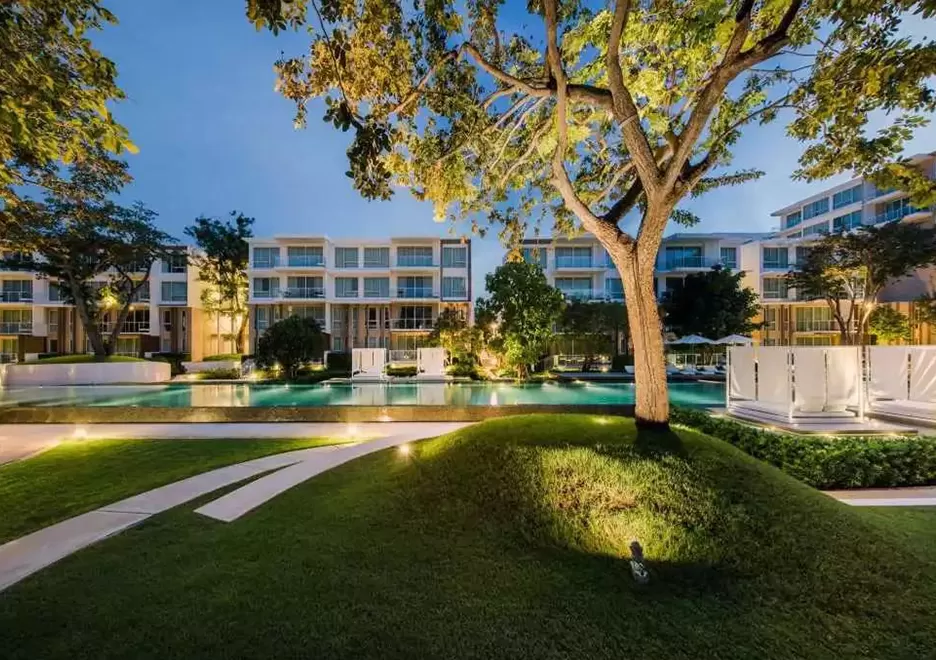

  • PROJECT REFERENCE
