These luminaires are ideally suited for garden, entryways, and for many applications on paths and terraces. Anchorage units are available for direct burial in concrete or soil, or with a hardscape base for installation on foundations or paved surfaces.
ELECTRONICS
Power(Luminaire) | 35W | Power Factor | >0.9 |
Input Voltage | AC220-240V, 50/60Hz | Driver Option | Integral control gear |
Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | COB/SMD | Lumen (Luminaire): | 2450LM |
| LED Brand | PHILIPS | Luminaire Lminous Efficacy | 70LM/W |
| Full White LED(FW) | 3000K | Tunable White | 2700K&6500K |
| Multi Color | RGB, RGBW | CRI | Ra>80, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 120*60° |
CONTROL SYSTEM
| Control | ON/OFF/DALI/0-10V/Triac | CMS, CCS | Optional |
ENVIRONMENT
| Operating Ta | ~-30 °C to 50 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | Aluminum housing |
| Compliance | IK06 | Certificate | IP65, CE, RoHS |
LIGHT DISTRIBUTION
MECHANICS
| Dimension | 3500x370mm | Other Dimensions | |
| Material Thickness | Aluminum | Plate Size | |
| Finish | RAL9004,RAL9006,RAL9007,RAL9016 | Housing Fixture Material | Aluminum |
OPTIONAL ACCESSORIES

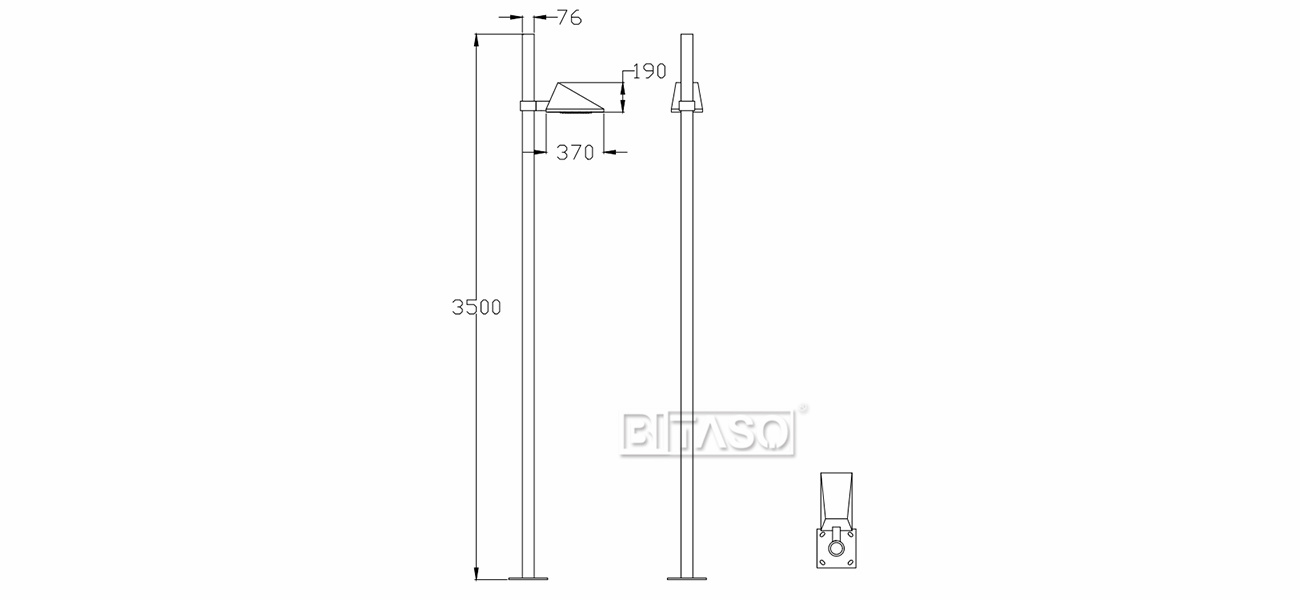

LUMINAIRE DIMENSION
Landscape luminaires is more than just illuminating outdoors. it is about putting the heart out in your surroundings to suit it. We provide a wide range of creative options curated for landscape lighting needs. We believe in enabling better environment, by providing luminaires that are aesthetic and leave no room for error.
