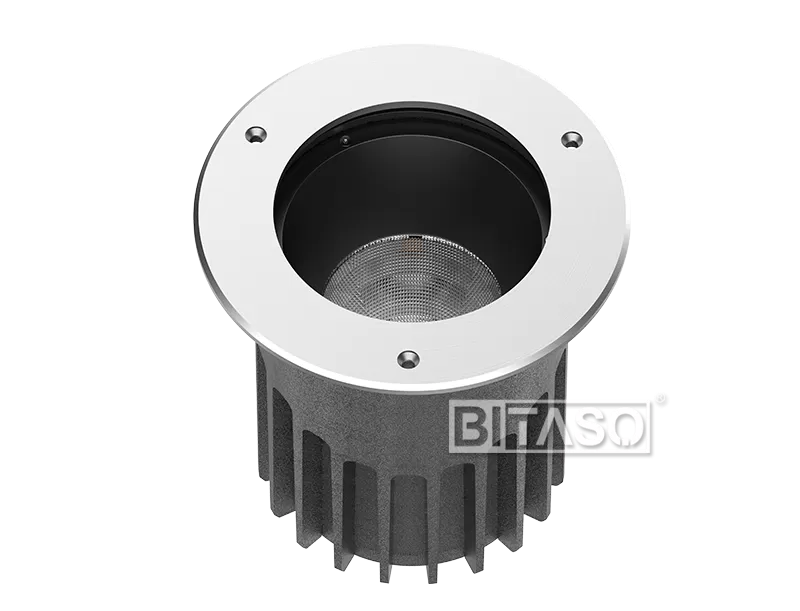

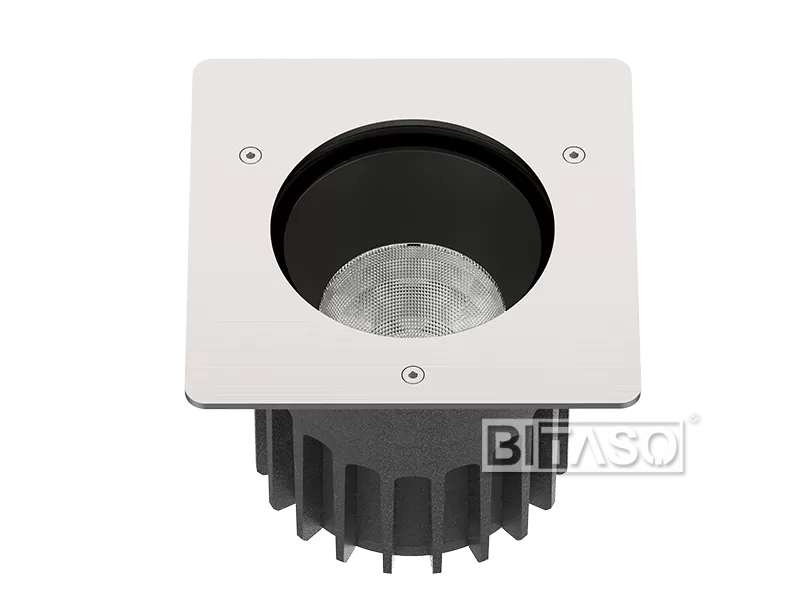

Special Housing Designs And High-quality Optical Components Specifically For Demanding Visual Tasks To Provide Enhanced Visual Comfort Discreet And Compact Aesthetically Designed Architectural Outdoor Spotlight, ldeal For Glare-free Accent Lighting, Floodlighting And Wall Washing In The Outdoor Area.
ELECTRONICS
| Power(Luminaire) | 36W-42W | Power Factor | >0.9 |
| Input Voltage | DC24V DC36V DC48V AC110-130V AC110-240V AC220-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |

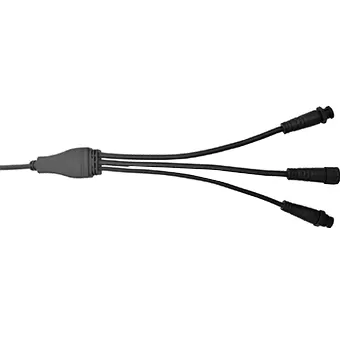

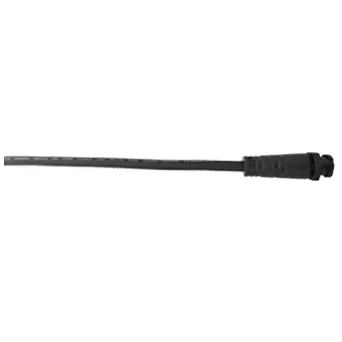

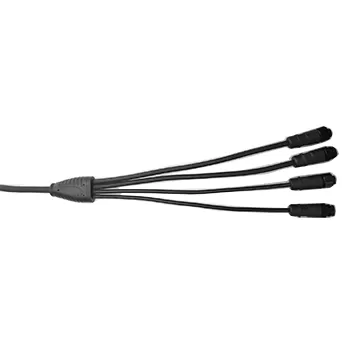

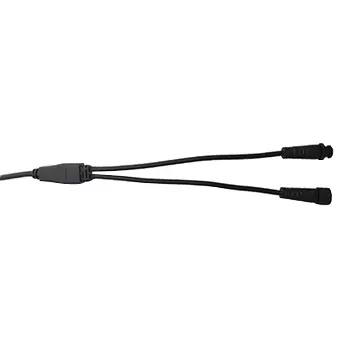

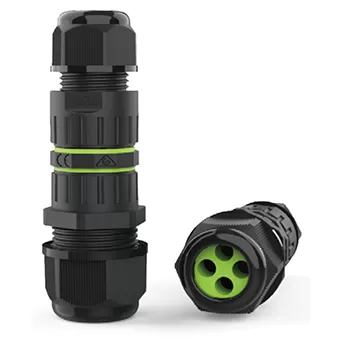

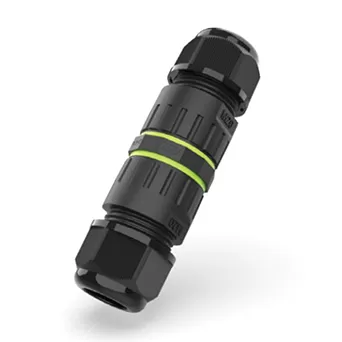

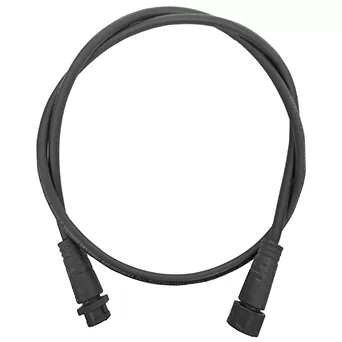

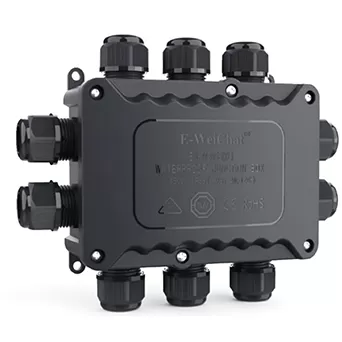

| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 pin |
OPTICS
| Light Source | 1PCS CREE COB | Lumen（Luminaire): | 3240LM-3780LM |
| LED Brand | CREE/OSRAM/LUMINNUS/TYANSHINE SMD | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2200K,2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K | Tunable White | 2700K-6500K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 8°/12°/17°/20°/25°/30°/40°/45°/60°/10*22°/15*55°/15*30°/20*60° |

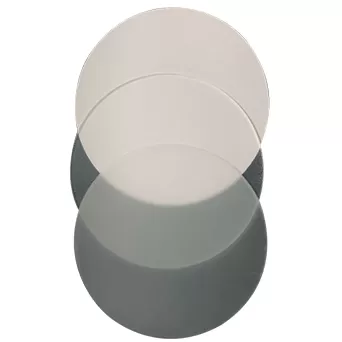

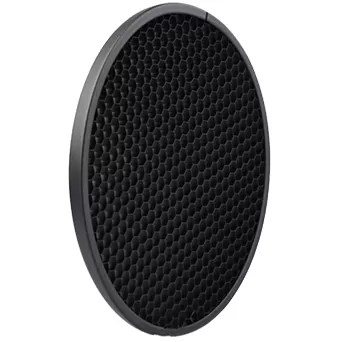

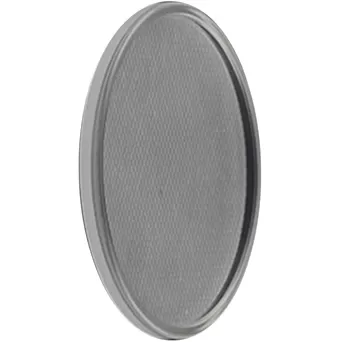

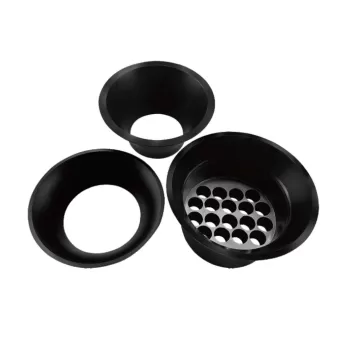

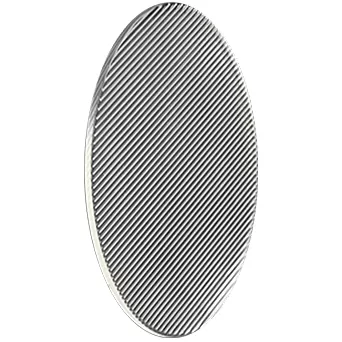

| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Filter, Honeycomb Louver, Round-meshed grill |
CONTROL SYSTEM
| Control | DMX512/DALI/ 0-10V/Triac | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK09, IP67, Class I | Certificate | IP67, CE, ETL, RoHS, CCC |

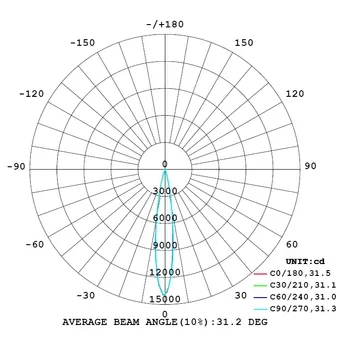

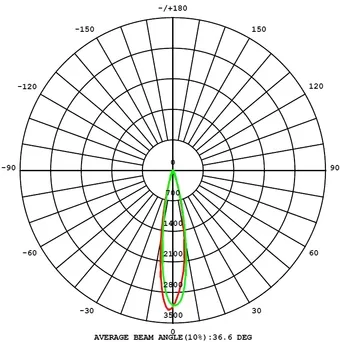

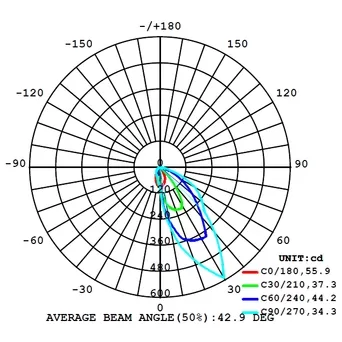

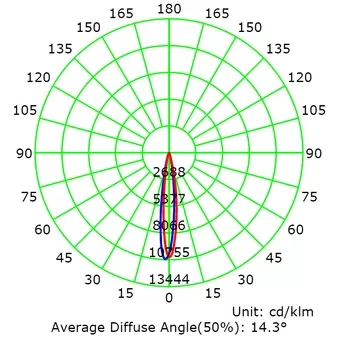

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 208x185mm | Weight | 3.55KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | Powder Coated | Mounting Type | ground recessed |
OPTIONAL ACCESSORIES

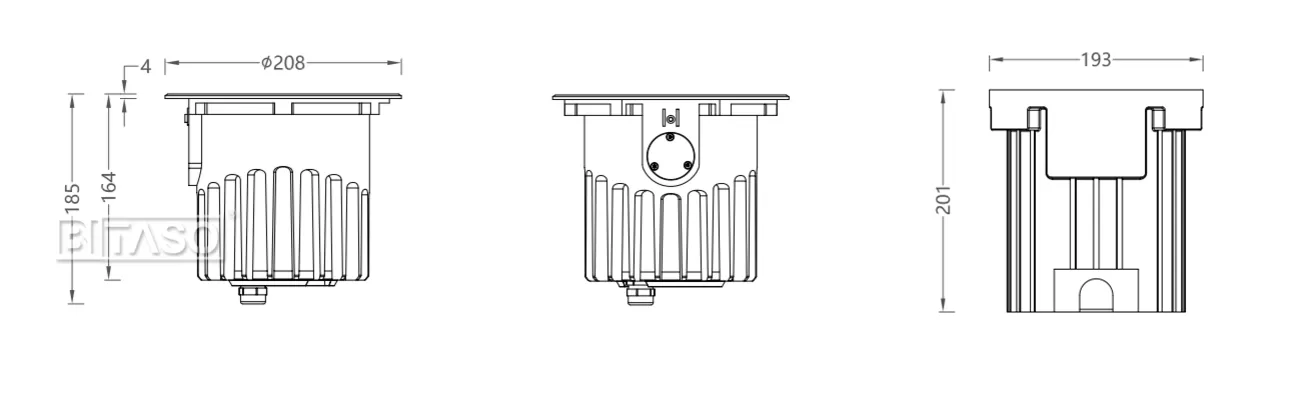

LUMINAIRE DIMENSION

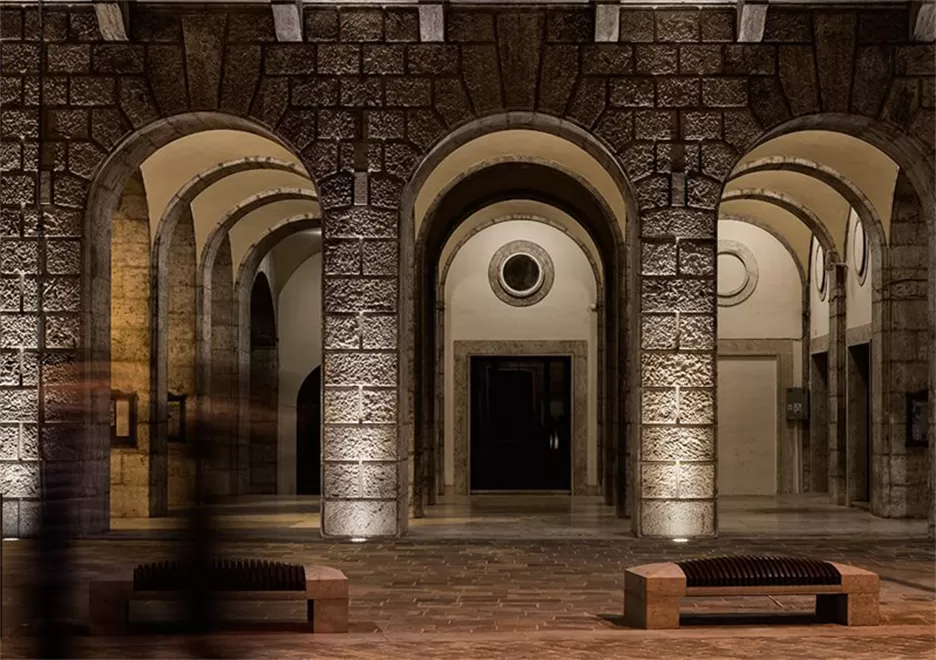

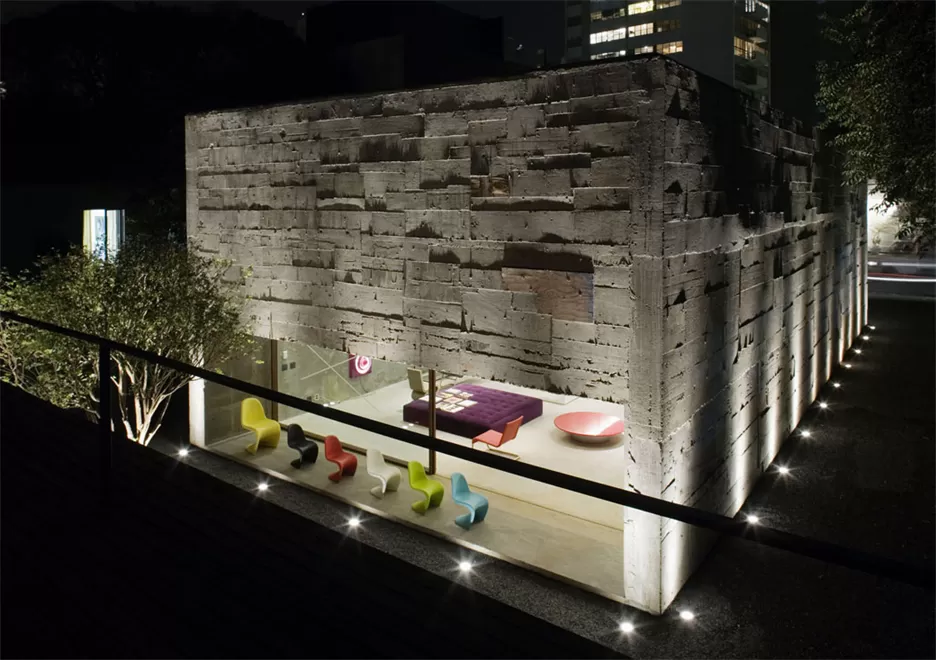

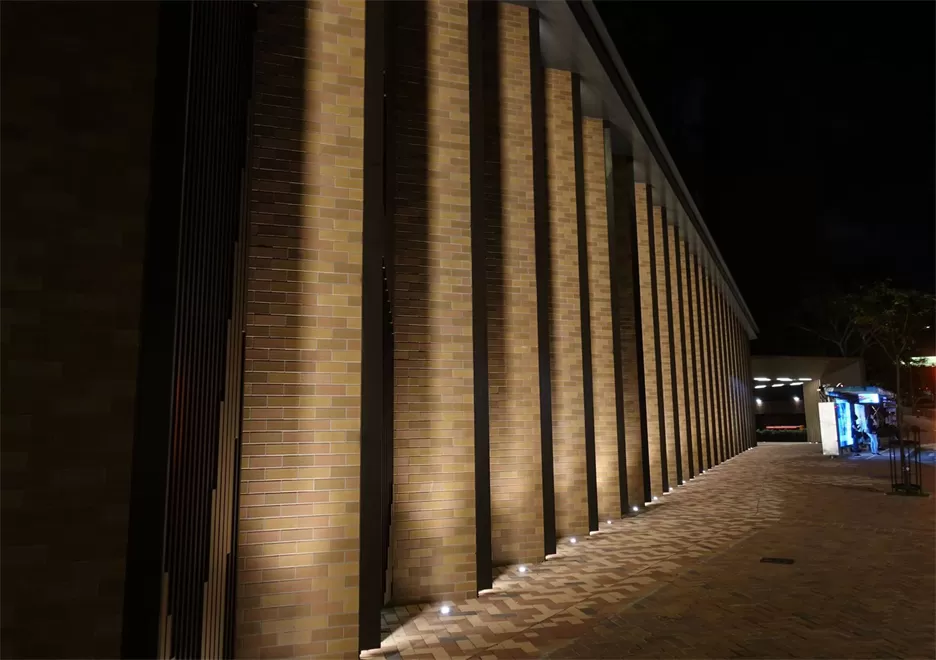

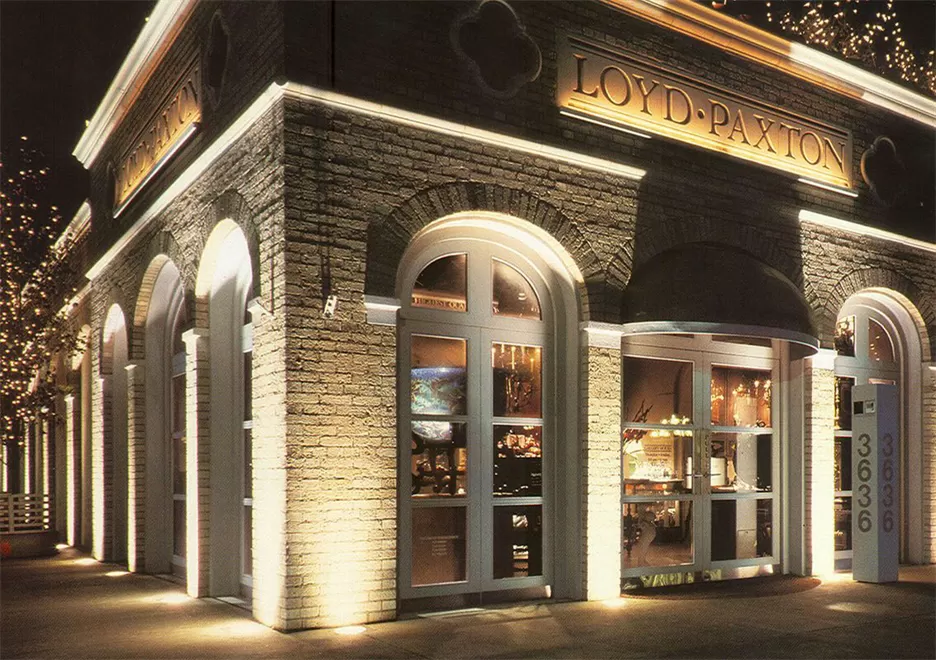

PROJECT REFERENCE
PROJECT REFERENCE
PROJECT REFERENCE
PROJECT REFERENCE
