15 degree beam angle adjustable in clockwise or anti-clockwise direction, 0/5/10/15D graduations for beam direction adjustability. Make the light beam at the most reasonable direction toward the illuminated target.
10 degree beam angle adjustable allowed at the the left and right sides after the mounting sleeve-embedded/ fixed into the ground.Ensure the light be installed at most accurate and suitable direction.
ELECTRONICS
| Power(Luminaire) | 6W-10W | Power Factor | >0.9 |
| Input Voltage | DC12V DC24V DC36V DC48V AC110-130V AC110-240V AC220-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, PWM, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 1PCS GREE COB | Lumen（Luminaire): | 540LM-900LM |
| LED Brand | CREE/OSRAM/LUMINNUS/TYANSHINE SMD | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2200K,2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K | Tunable White | 2700K-6500K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 8°/12°/17°/20°/25°/30°/40°/45°/60°/10*22°/15*55°/15*30°/20*60° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Filter, Honeycomb Louver, Round-meshed grill |
CONTROL SYSTEM
| Control | DMX512/DALI/ 0-10V/Triac | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK09, IP67, Class I | Certificate | IP67, CE, ETL, RoHS, CCC |

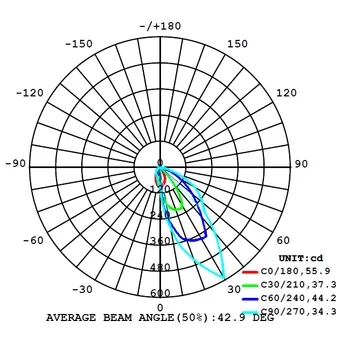

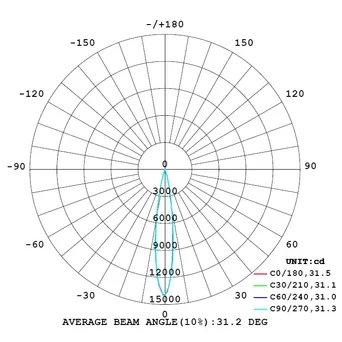

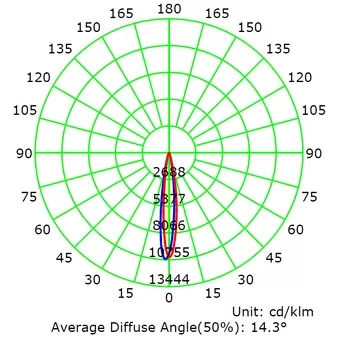

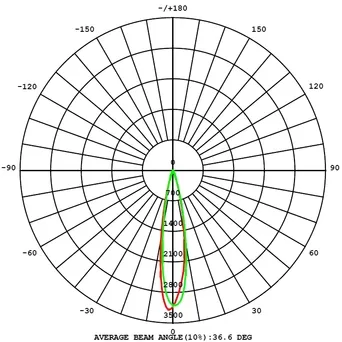

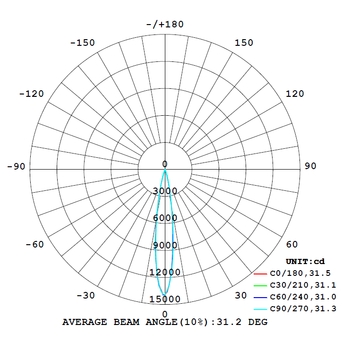

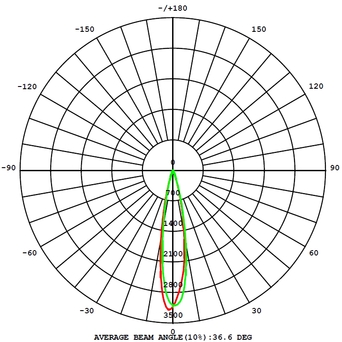

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 135x144mm | Weight | 1.55KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | Powder Coated | Mounting Type | ground recessed |

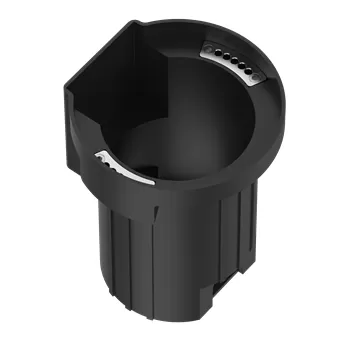

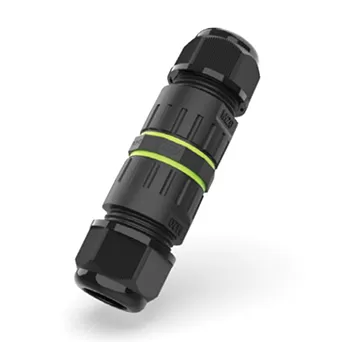

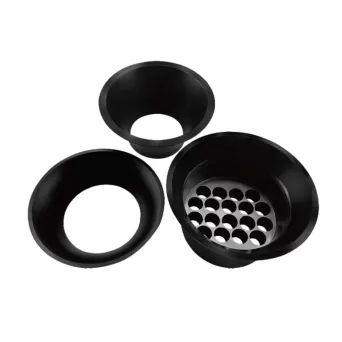

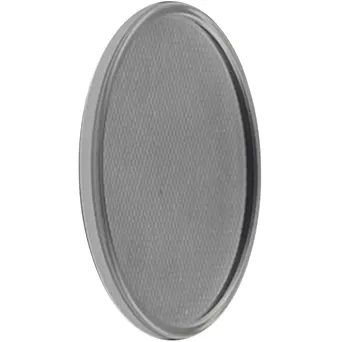

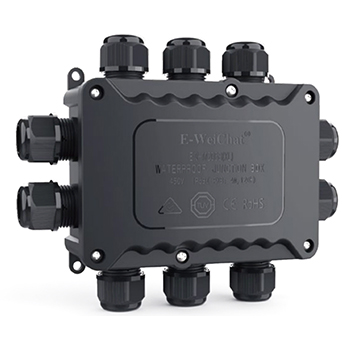

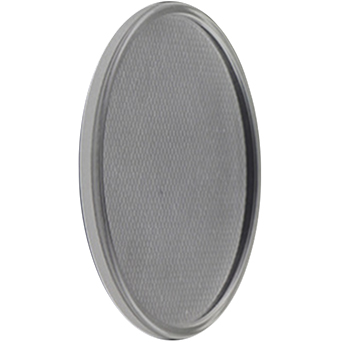

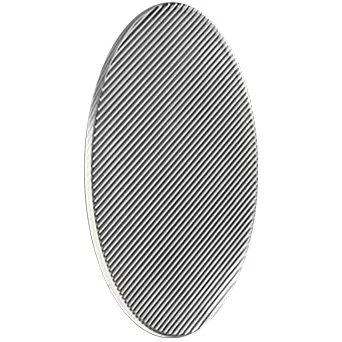

OPTIONAL ACCESSORIES

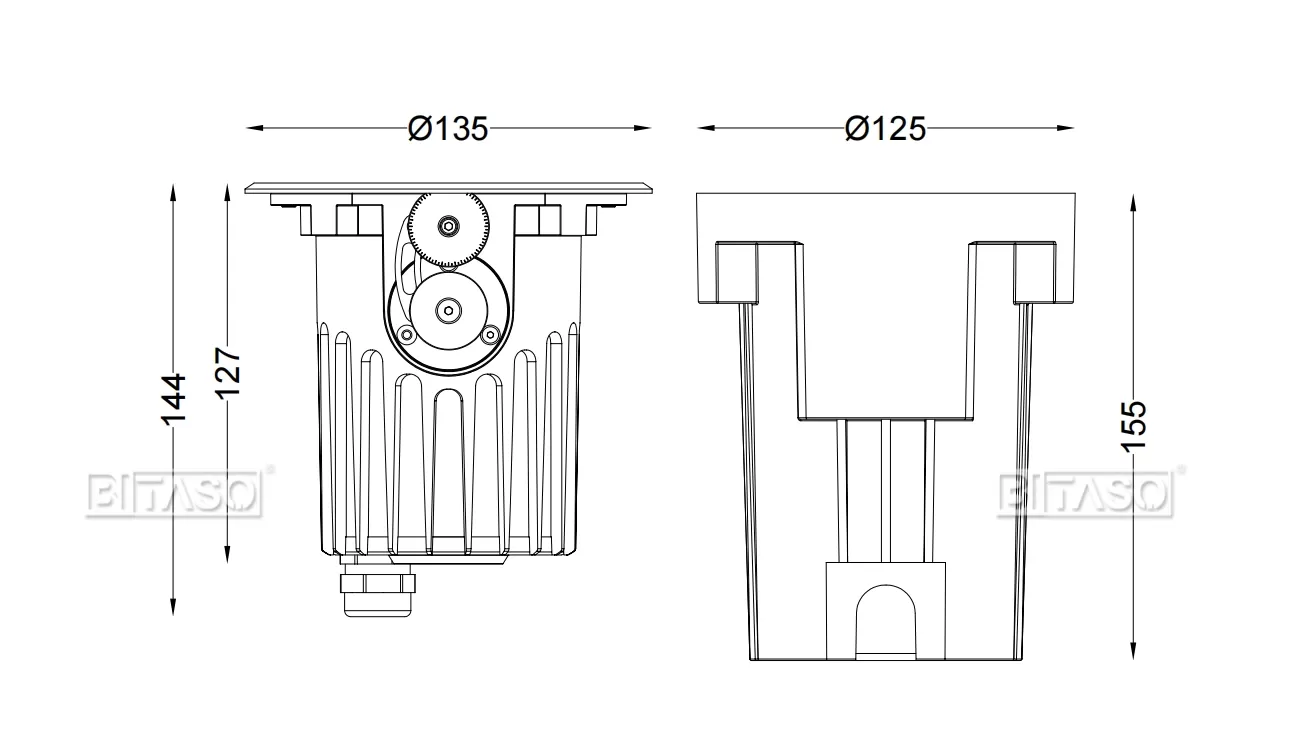

LUMINAIRE DIMENSION

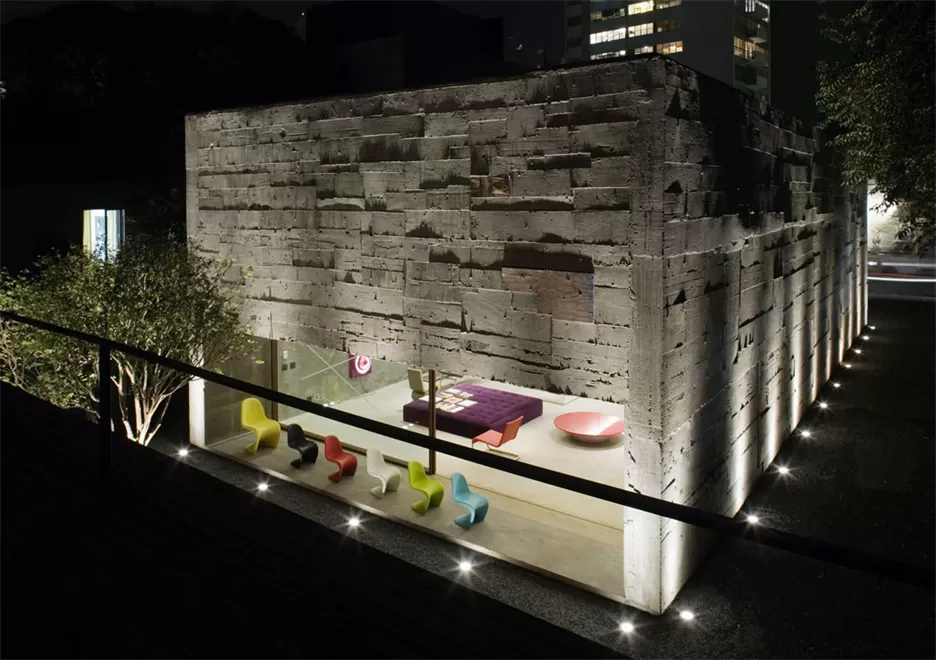

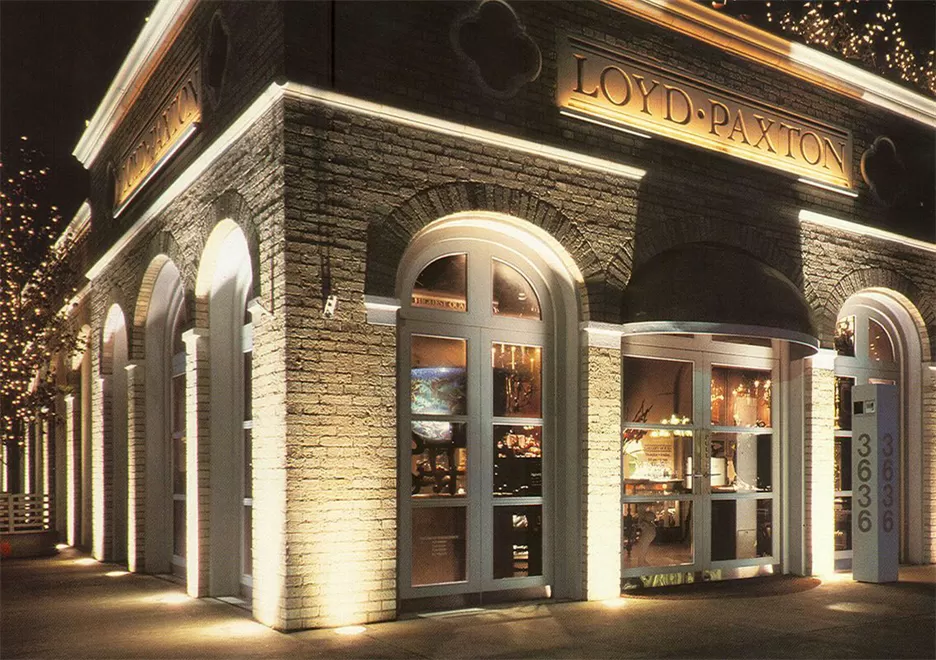

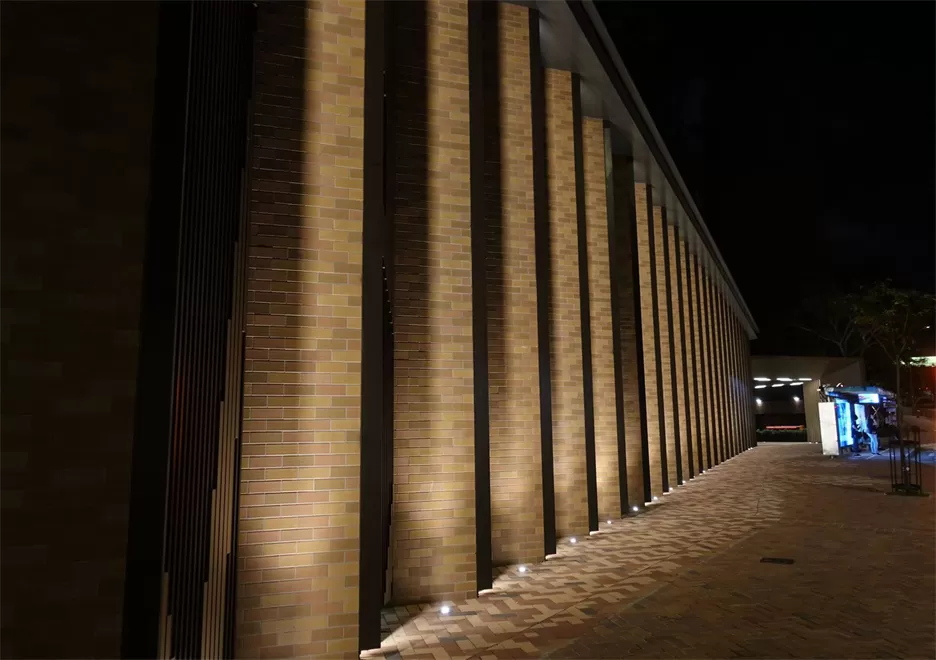

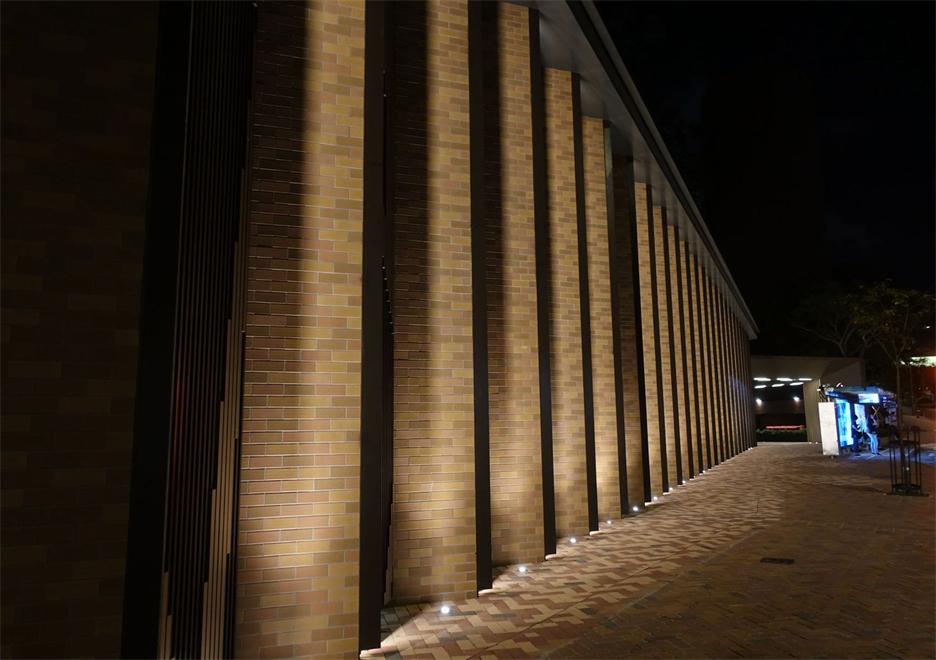

PROJECT REFERENCE
PROJECT REFERENCE
PROJECT REFERENCE
