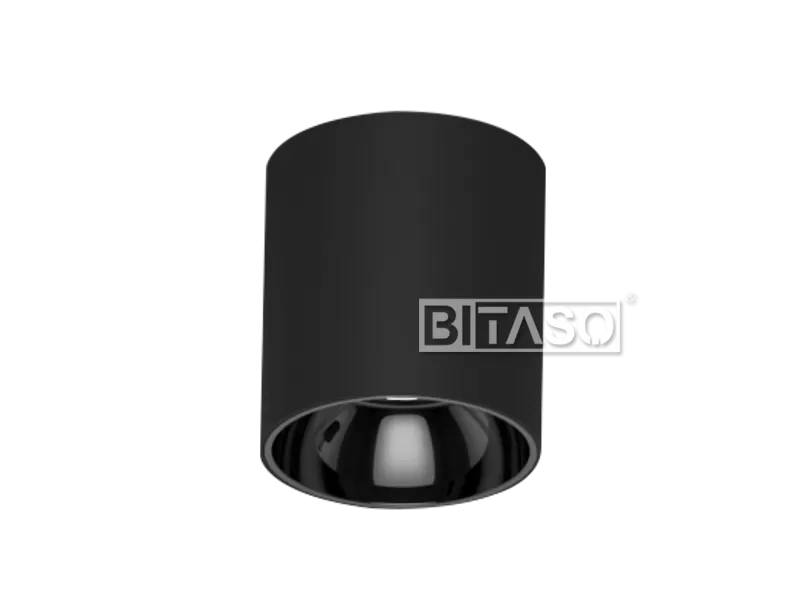

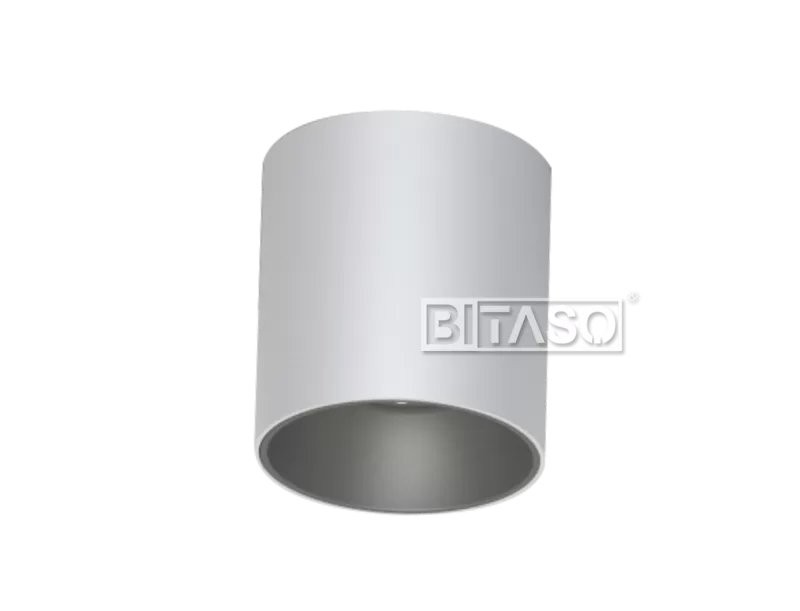

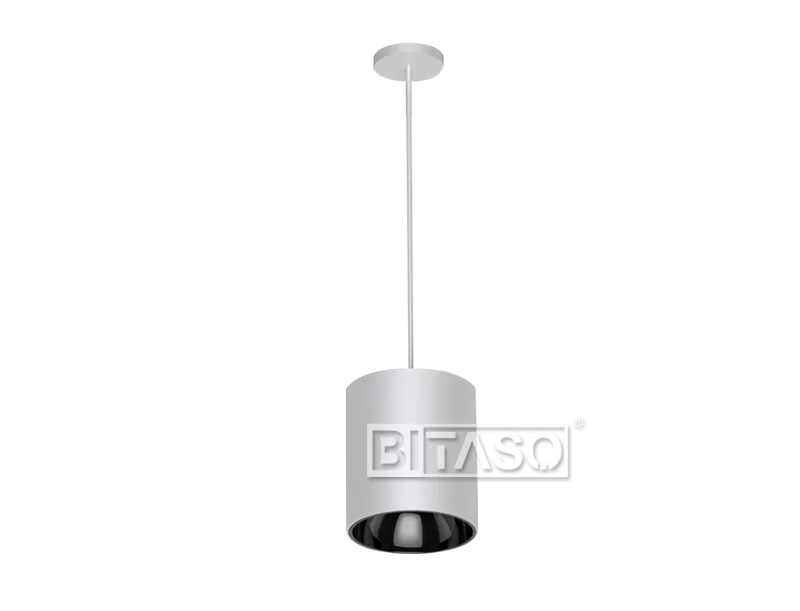

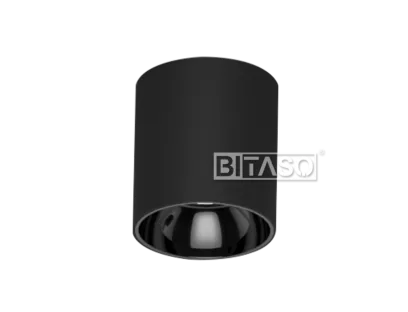

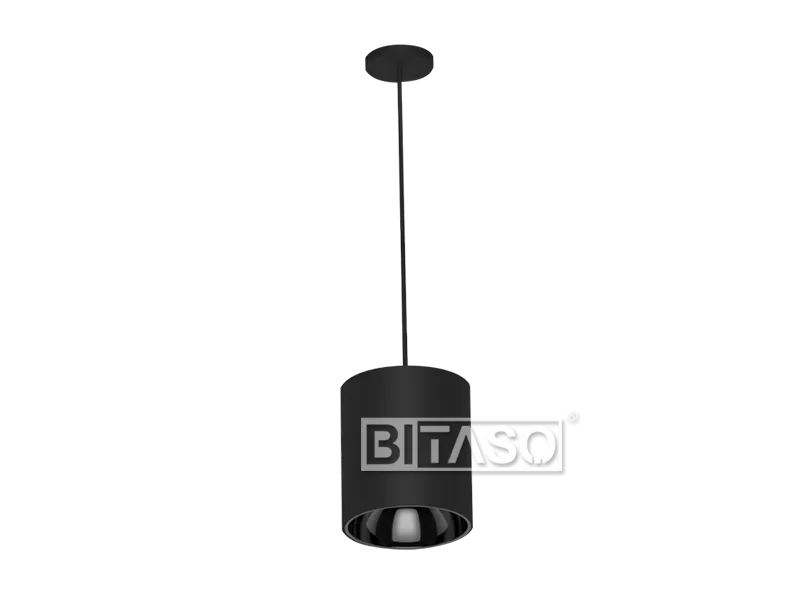

This includes satisfying all the application requirements of retail, hospitality and residential environments, with the downlighting that it has to offer. BOOT is an innovative combination of form, colour, dimensions, applications, optics, technology and functionality with one common characteristic: visual well-being with both Comfort and Super Comfort versions. The exclusive Warm Dimming version reproduces the dimming effect of a halogen lamp and evokes the magic of the past when less light meant warmth, softness and silence.
ELECTRONICS
| Power(Luminaire) | 5W/7W/12W/15W | Power Factor | >0.9 |
| Input Voltage | AC220-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | COB | Lumen (Luminaire): | 1350LM |
| LED Brand | CREE/BRIDGELUX/PHILLIPS | Luminaire Lminous Efficacy | 80LM/W |
| Full White LED(FW) | 2700K, 3000K, 3500K, 4000K, 4500K, 5000K | Tunable White | 2700K-5000K |
| Multi Color | / | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 20°, 40° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Honeycomb Louver |
CONTROL SYSTEM
| Control | RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP20, Class I | Certificate | IP20 CE, ETL, RoHS, CCC |

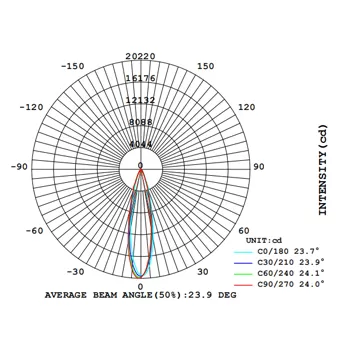

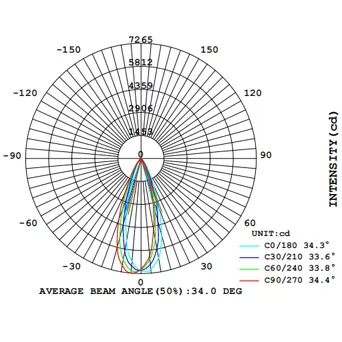

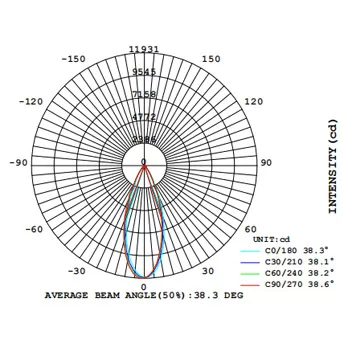

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 75*100/75*152/95*100/95*152mm | Weight | 0.5KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | TIGER PODER gray(RAL9006), black(RAL9005) | Mounting Type | ceiling or wall mounting |

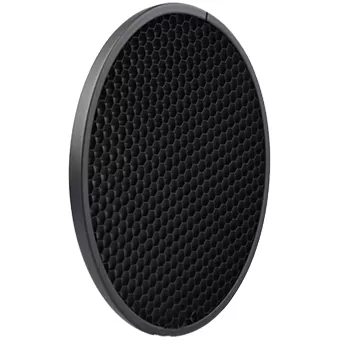

OPTIONAL ACCESSORIES

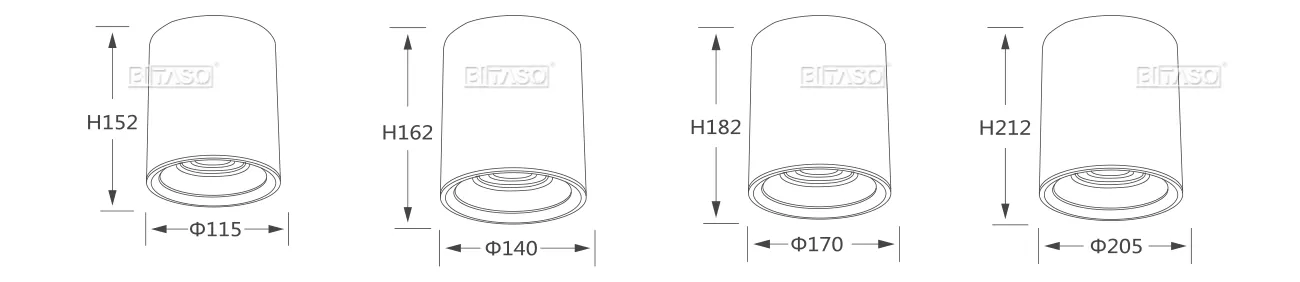

LUMINAIRE DIMENSION
