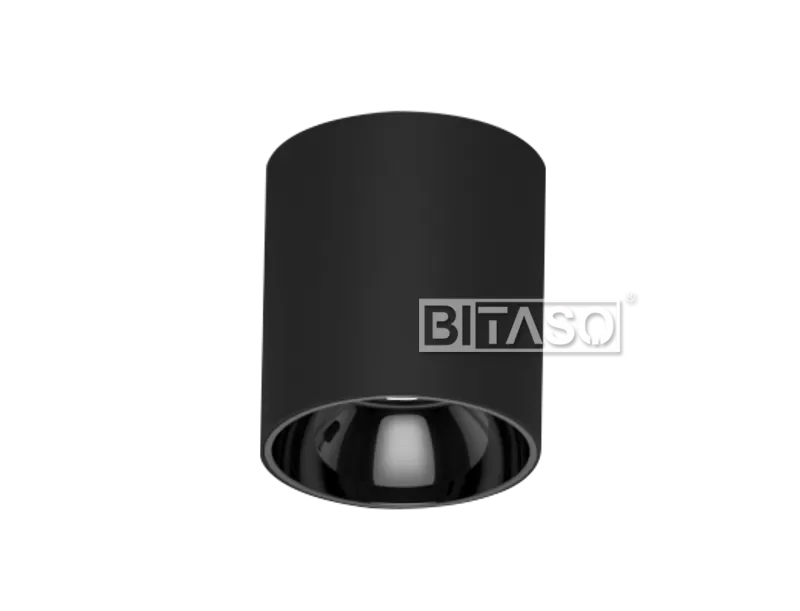

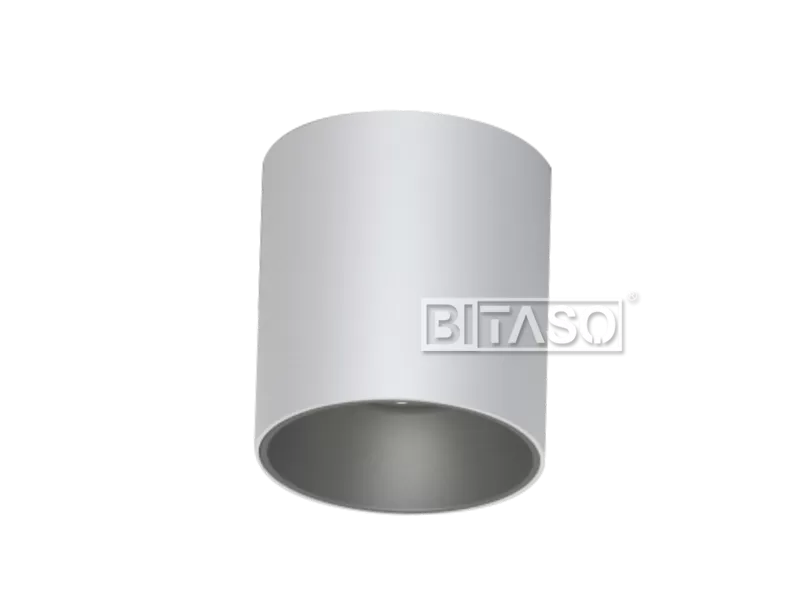

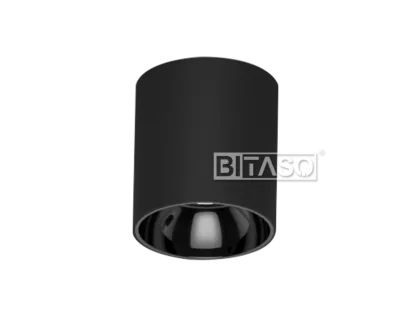

BT-2501M-A/BT-3001M-A

This includes satisfying all the application requirements of retail, hospitality and residential environments, with the downlighting that it has to offer. BOOT is an innovative combination of form, colour, dimensions, applications, optics, technology and functionality with one common characteristic: visual well-being with both Comfort and Super Comfort versions. The exclusive Warm Dimming version reproduces the dimming effect of a halogen lamp and evokes the magic of the past when less light meant warmth, softness and silence.

ELECTRONICS

Power(Luminaire)5W/7W/12W/15WPower Factor>0.9
Input VoltageAC220-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light SourceCOBLumen (Luminaire):1350LM
LED BrandCREE/BRIDGELUX/PHILLIPSLuminaire Lminous Efficacy80LM/W
Full White LED(FW)2700K, 3000K, 3500K, 4000K, 4500K, 5000KTunable White2700K-5000K
Multi Color/CRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle20°, 40°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical Acessories Honeycomb Louver


CONTROL SYSTEM

ControlRDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP20, Class ICertificateIP20 CE, ETL, RoHS, CCC


MECHANICS

Dimension75*100/75*152/95*100/95*152mmWeight0.5KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishTIGER PODER gray(RAL9006), black(RAL9005)Mounting Typeceiling or wall mounting


OPTIONAL ACCESSORIES

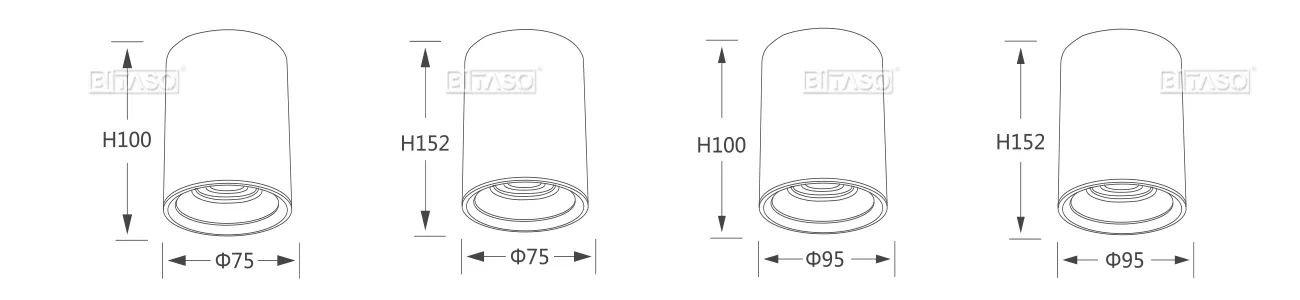

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
