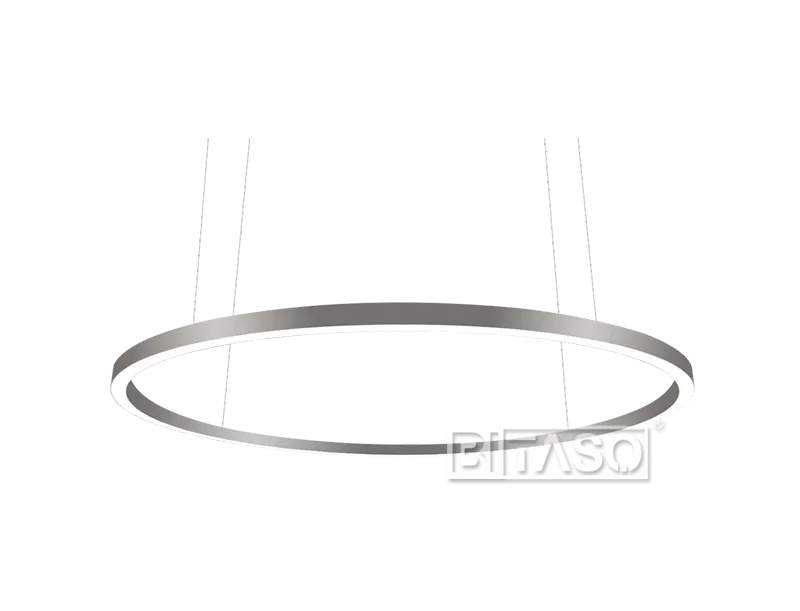

It can be installed on ceilings and surfaces or suspended, individually or in multiple compositions, coming together in an articulated game of elements having different dimensions at different heights.Comprehensive range of clean-edged interior circular ring fixtures. Powerful and technical performance options shrouded in a minimalist aesthetic form.
ELECTRONICS
| Power(Luminaire) | 20W/M | Power Factor | >0.9 |
| Input Voltage | DC12V/DC48V | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac,DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | COB | Lumen (Luminaire): | 1000lm |
| LED Brand | CREE/BRIDGELUX/PHILLIPD COB | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2700K, 3000K, 3500K, 4000K, 4500K, 5000K,6500K | Tunable White | 2700K-6500K |
| Multi Color | RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 120° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Honeycomb Louver |
CONTROL SYSTEM
| Control | DMX512/RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs), RGBW (4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP20, Class I | Certificate | IP20, CE, ETL, RoHS, CCC |
MECHANICS
| Dimension | 25*34mm | Weight | 0.5KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | TIGER PODER gray(RAL9006), black(RAL9005) | Mounting Type | ceiling mounting |

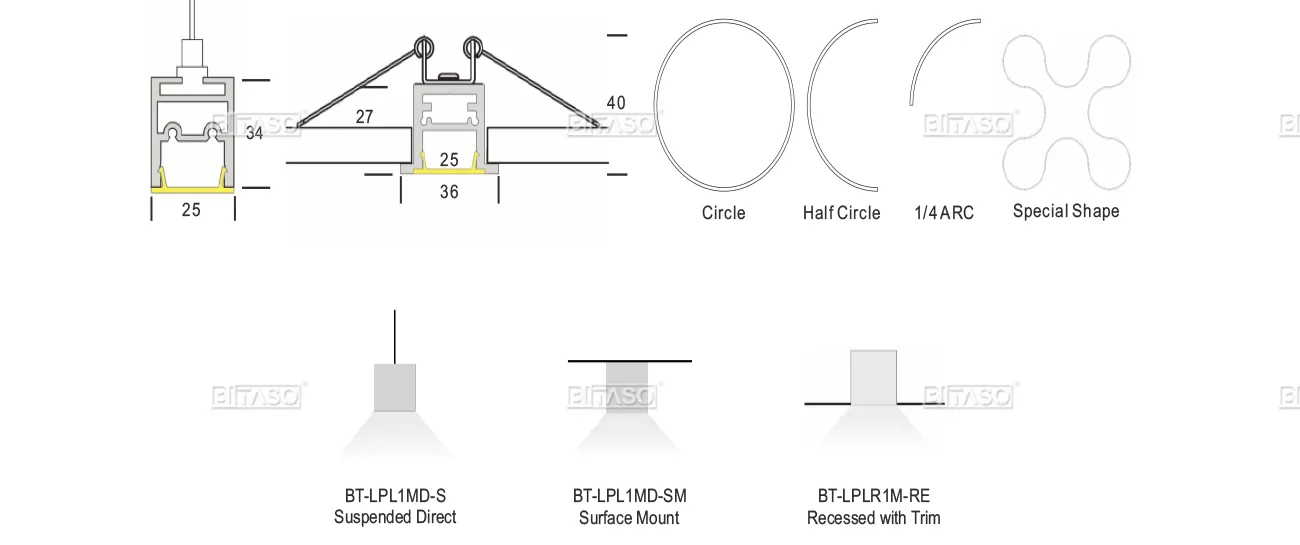

LUMINAIRE DIMENSION
