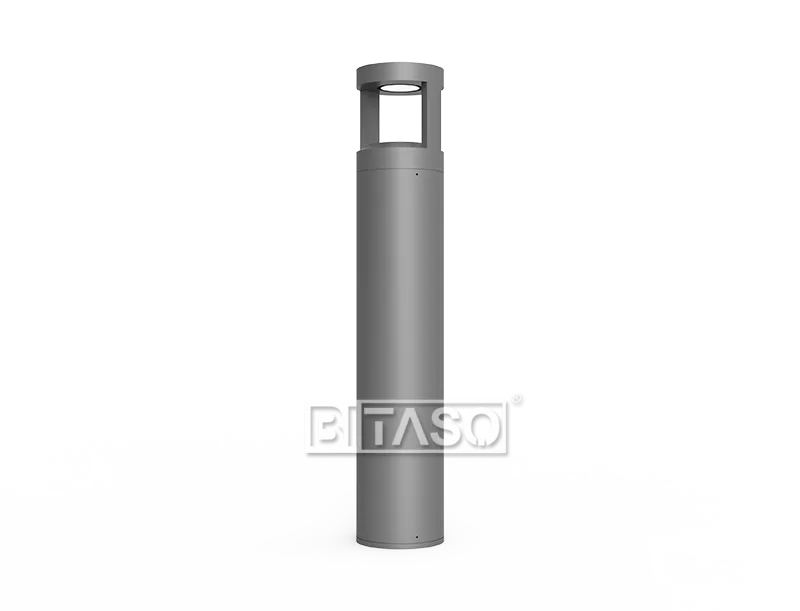

BITASO Led outdoor lawn pathway light with aluminum material, black/grey/brown finished color, IP65 weatherproof bollard lights. Bright and warm led landscape garden light, Customizable height, 9W/10W/12W yard luminaire. It can be widely used in garden, path, lawn, courtyard, patio, driveway, outdoor decoration. Let the 'darkness' have nowhere to hide.
Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort compact architectural and stylish outdoor innovative luminaries for garden and path way.
ELECTRONICS
Power(Luminaire) | 12W,50/60HZ | Power Factor | >0.9 |
Input Voltage | AC220-240V, 50/60Hz | Driver Option | Integral control gear |
Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
Light Source | SMD | Lumen (Luminaire): | 840LM |
LED Brand | Philips | Luminaire Lminous Efficacy | 70LM/W |
Full White LED(FW) | 3000K | Tunable White | |
Multi Color | CRI | Ra>85, Ra>90 | |
LED Life Span | ≥50,000hrs | Beam Angle | 120° |
CONTROL SYSTEM
Control | ON/OFF/DALI/0-10V/Triac | CMS, CCS | Optional |
ENVIRONMENT
Operating Ta | ~-30 °C to 50 °C | Anto-condensation System | Optional |
Corrosion Resistance | optional for marine environment | Passive Cooling | Aluminum housing |
Compliance | IK06 | Certificate | IP65, CE, RoHS |
LIGHT DISTRIBUTION
MECHANICS
Dimension | ∅150x800mm | Other Dimensions | |
Material Thickness | 3.0 Aluminum | Plate Size | |
Finish | RAL9004,RAL9006,RAL9007,RAL9016 | Housing Fixture Material | Aluminum |
OPTIONAL ACCESSORIES
LUMINAIRE DIMENSION
