BITASO Led outdoor lawn pathway light with aluminum material, black/grey/brown finished color, IP65 weatherproof bollard lights. Bright and warm led landscape garden light, Customizable height, 9W/10W/12W yard luminaire. It can be widely used in garden, path, lawn, courtyard, patio, driveway, outdoor decoration. Let the 'darkness' have nowhere to hide.

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort compact architectural and stylish outdoor innovative luminaries for garden and path way.


ELECTRONICS

Power(Luminaire)

12W,50/60HZ

Power Factor

>0.9

Input Voltage

AC220-240V, 50/60Hz

Driver Option

Integral control gear

Dmming Type

ON/OFF, 0-10V, DALI, Triac, DMX512

Driver

Integral control gear

Optional Eectronic Accessories

Plug, Leading Cable, Connection Cable, Junction box

Connector

2/3/4/5 Pin





OPTICS

Light SourceSMDLumen (Luminaire):840LM
LED BrandPhilipsLuminaire Lminous Efficacy70LM/W
Full White LED(FW)3000KTunable White
Multi Color
CRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle120°


CONTROL SYSTEM

ControlON/OFF/DALI/0-10V/TriacCMS, CCSOptional


ENVIRONMENT

Operating Ta~-30 °C to 50 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingAluminum housing
ComplianceIK06CertificateIP65, CE, RoHS



LIGHT DISTRIBUTION

MECHANICS

Dimension∅150x800mmOther Dimensions
Material Thickness3.0 AluminumPlate Size
FinishRAL9004,RAL9006,RAL9007,RAL9016Housing Fixture MaterialAluminum


OPTIONAL ACCESSORIES

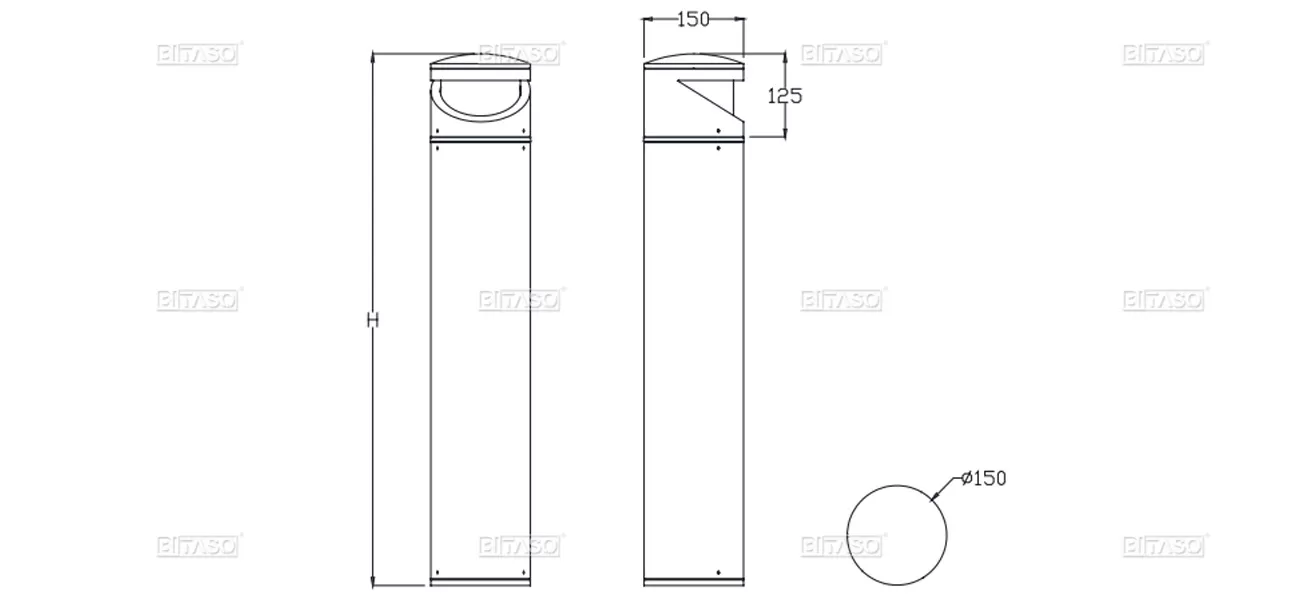

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
