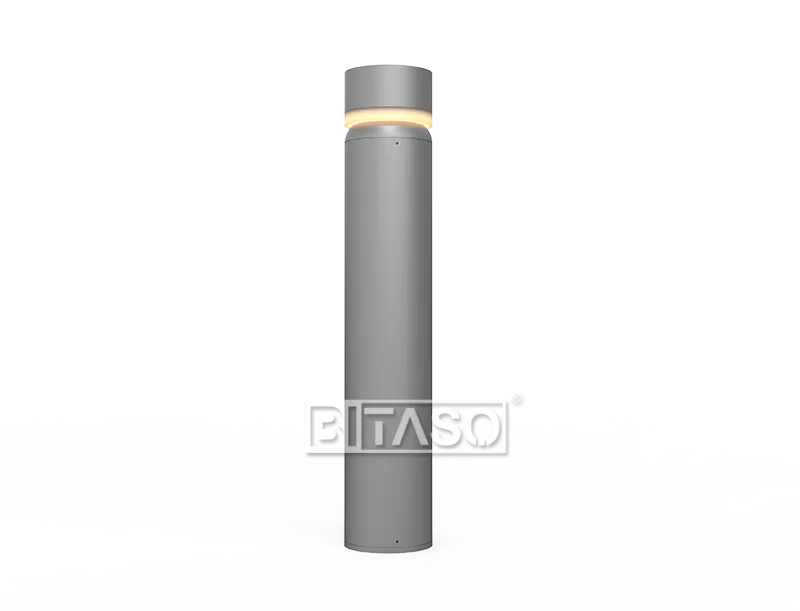

Gemini Round shape BL-BO15012E

BITASO Led outdoor lawn pathway light with aluminum material, black/grey/brown finished color, IP65 weatherproof bollard lights. Bright and warm led landscape garden light, Customizable height, 9W/10W/12W yard luminaire. It can be widely used in garden, path, lawn, courtyard, patio, driveway, outdoor decoration. Let the 'darkness' have nowhere to hide.

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort compact architectural and stylish outdoor innovative luminaries for garden and path way.

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	12W,50/60HZ	Power Factor	>0.9
Input Voltage	AC220-240V, 50/60Hz	Driver Option	Integral control gear
Dmming Type	ON/OFF, 0-10V, DALI, Triac, DMX512	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	2/3/4/5 Pin

OPTICS

Light Source	SMD	Lumen (Luminaire):	840LM
LED Brand	Philips	Luminaire Lminous Efficacy	70LM/W
Full White LED(FW)	3000K	Tunable White
Multi Color		CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Angle	120°

CONTROL SYSTEM

Control

ON/OFF/DALI/0-10V/Triac

CMS, CCS

Optional

ENVIRONMENT

Operating Ta	~-30 °C to 50 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	Aluminum housing
Compliance	IK06	Certificate	IP65, CE, RoHS

LIGHT DISTRIBUTION

MECHANICS

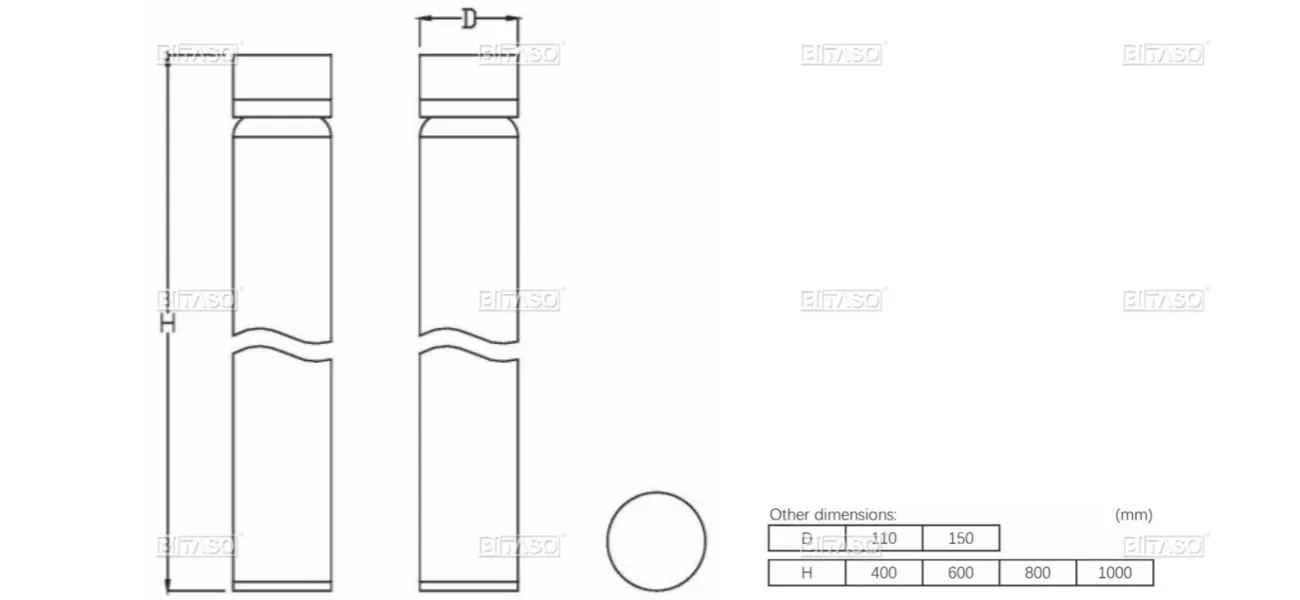

Dimension	∅150x800mm	Other Dimensions
Material Thickness	3.0 Aluminum	Plate Size
Finish	RAL9004,RAL9006,RAL9007,RAL9016	Housing Fixture Material	Aluminum

OPTIONAL ACCESSORIES

LUMINAIRE DIMENSION
