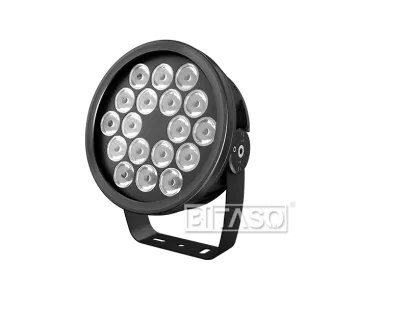

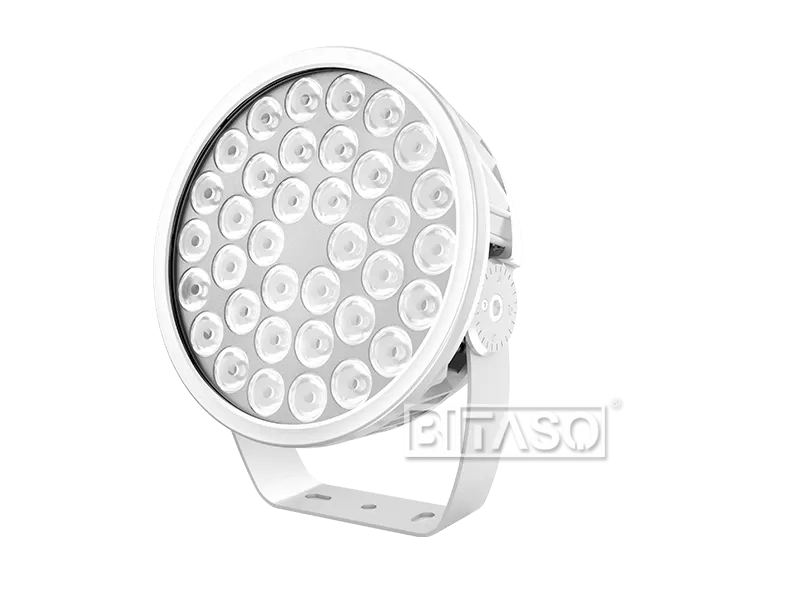

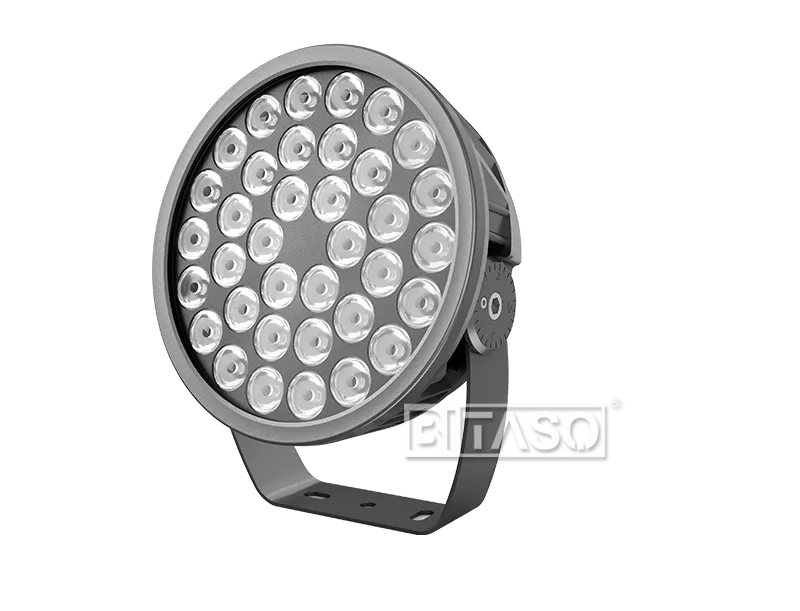

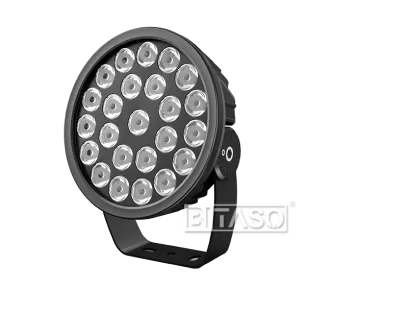

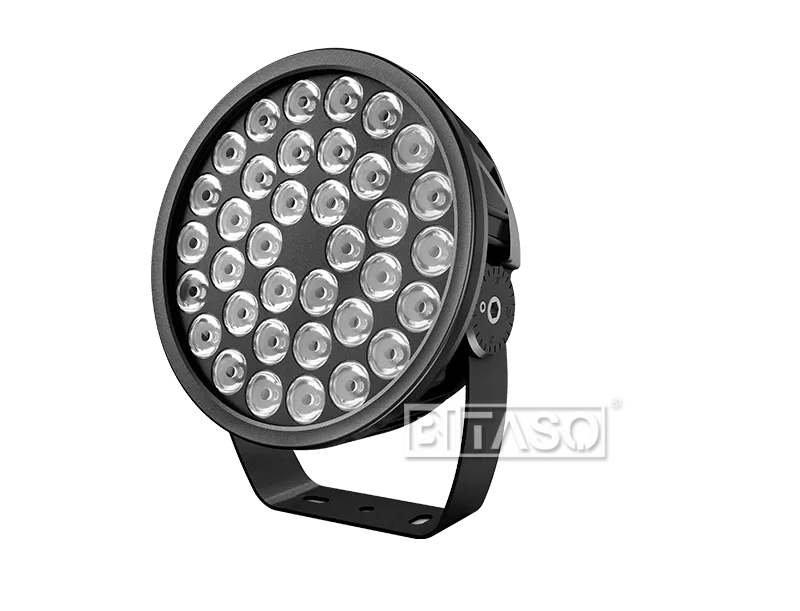

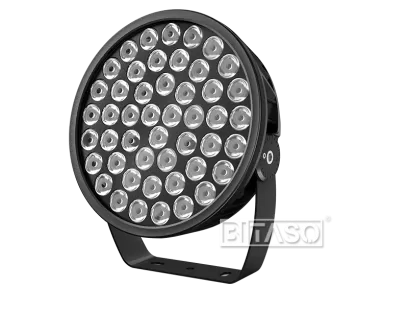

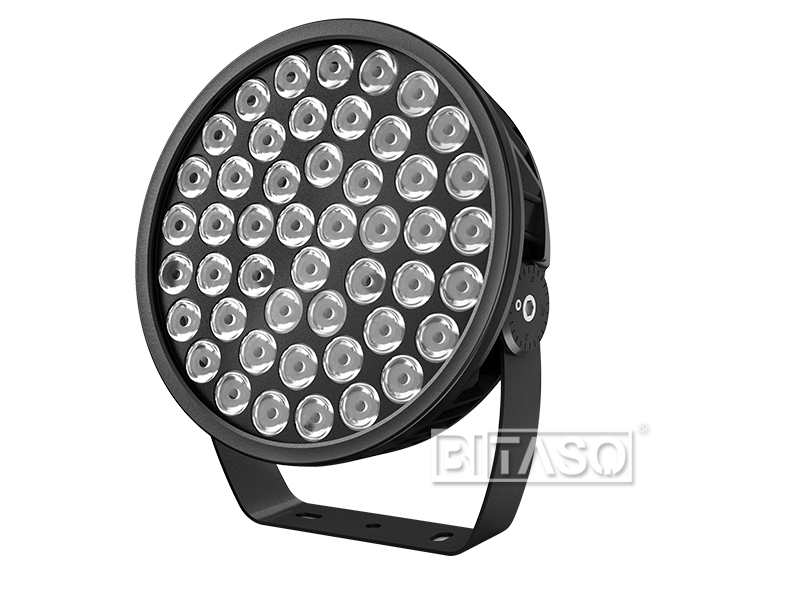

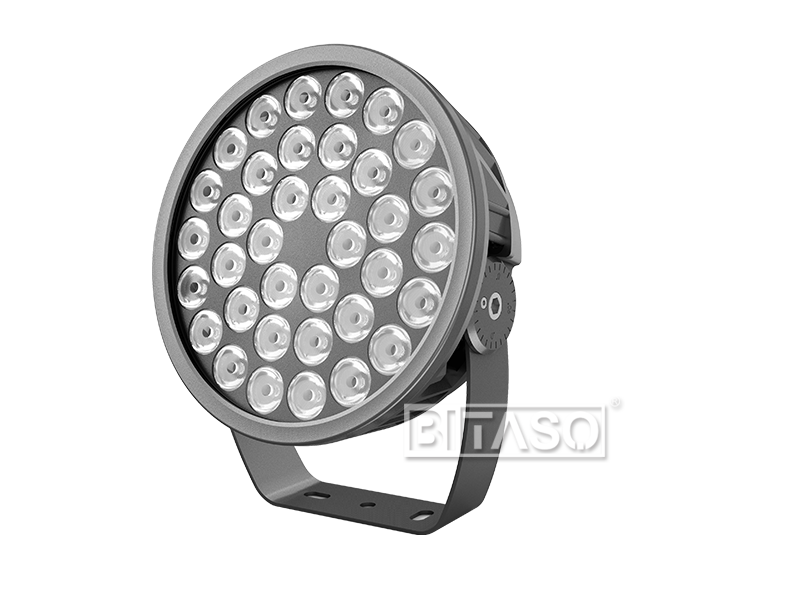

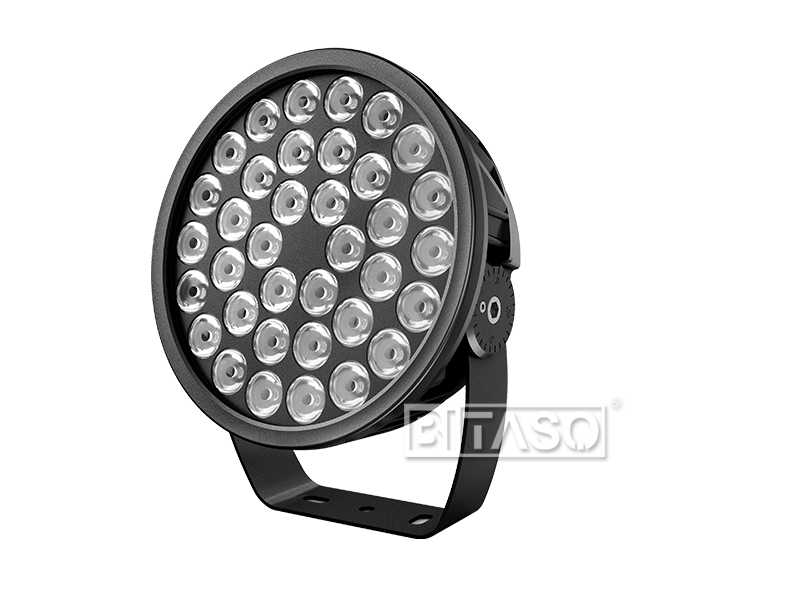

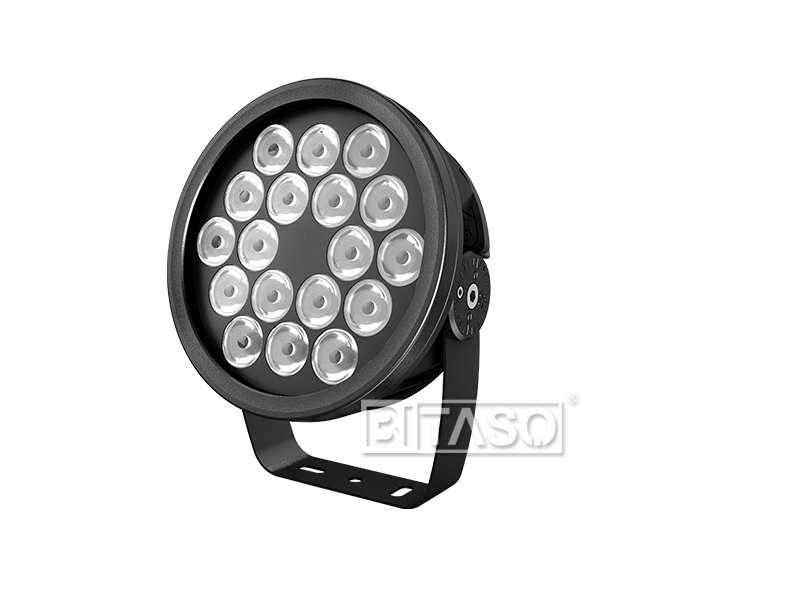

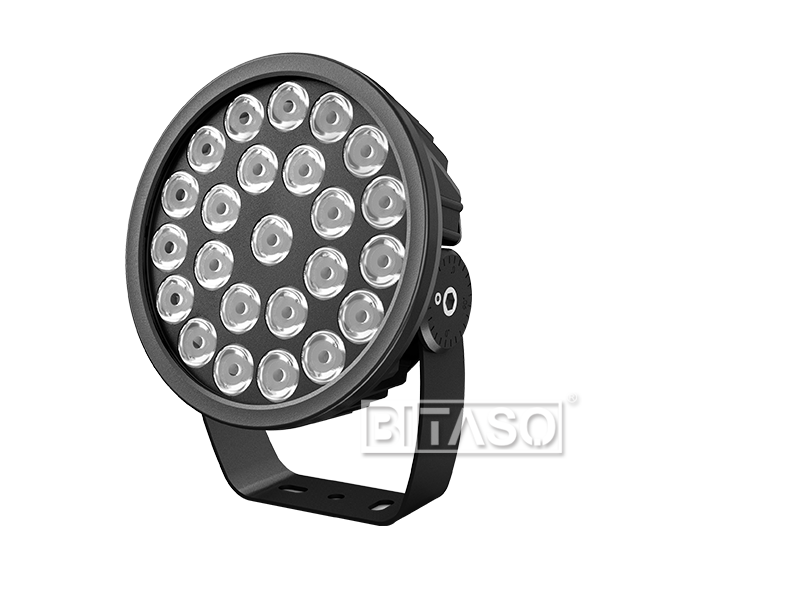

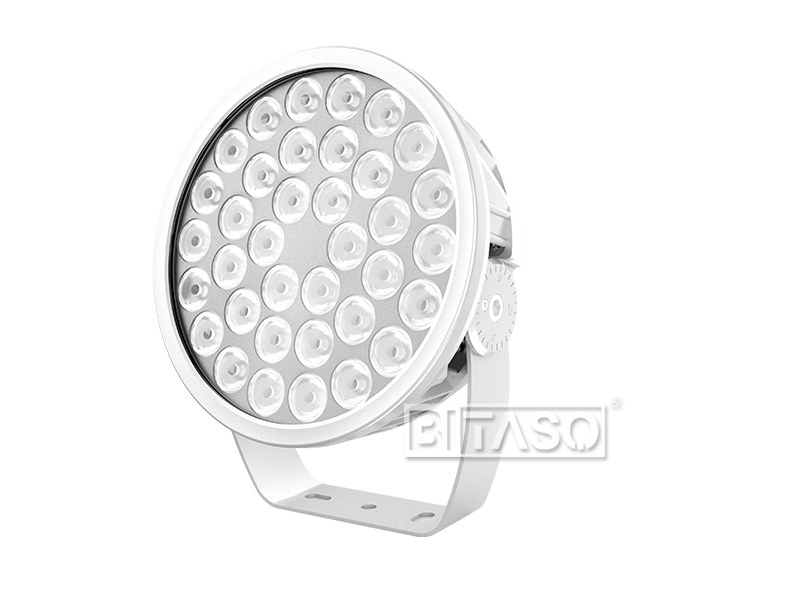

AURORA V370 Super Narrow Angle Projector Light

The AURORA series offers a variety of color and white CCT options, beam angles and power ranges with either static on/off or dynamic control options via standard DMX-512 functionality.


ELECTRONICS

Power(Luminaire)120W/180W/200W/240WPower Factor>0.9
Input VoltageDC24V DC36V DC48V AC110-130V AC220-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin

OPTICS

Light Source36PCS SMDLumen (Luminaire): 10800-21600LM
LED BrandTYANSHINE/EVERCORE SMDLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500KTunable White2200K-6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle5°, 8°, 10°,12°,15°,20°, 24°, 25°,36°,60°, 10°x30°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesCuboid hood Angle25°, Honeycomb Louver

CONTROL SYSTEM

ControlDMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs), RGBW (4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC

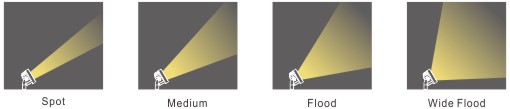

LIGHT DISTRIBUTION

  • AVERAGE BEAM ANGLE(50%). 12°

    AVERAGE BEAM ANGLE(50%). 12°

  • AVERAGE BEAM ANGLE(50%). 25°

    AVERAGE BEAM ANGLE(50%). 25°

  • AVERAGE BEAM ANGLE(50%). 40°

    AVERAGE BEAM ANGLE(50%). 40°

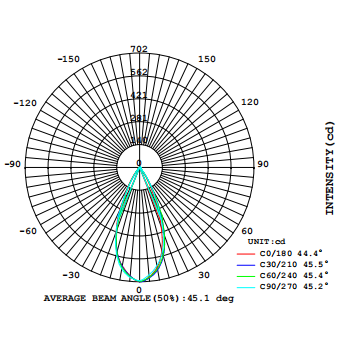

  • AVERAGE BEAM ANGLE(50%). 45°

    AVERAGE BEAM ANGLE(50%). 45°

MECHANICS

Dimension370*166*446mmWeight4.2KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishTIGER PODER gray(RAL9006), black(RAL9005)Mounting TypeFloor, ceiling or wall mounting (adjustable bracket)

OPTIONAL ACCESSORIES

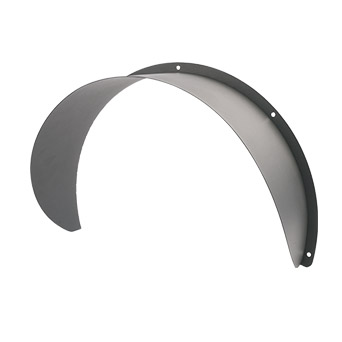

  • Crylindrical Hood Angle25°

    Crylindrical Hood Angle25°

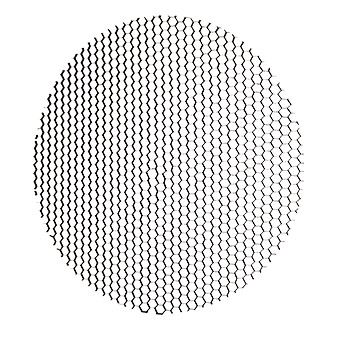

  • Honeycomb Louver

    Honeycomb Louver

  • Input Cable

    Input Cable

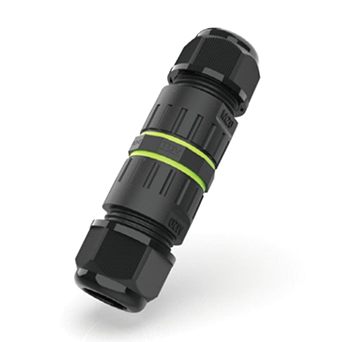

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • M20 3_4_5_6PIN IP68 Connector

    M20 3_4_5_6PIN IP68 Connector

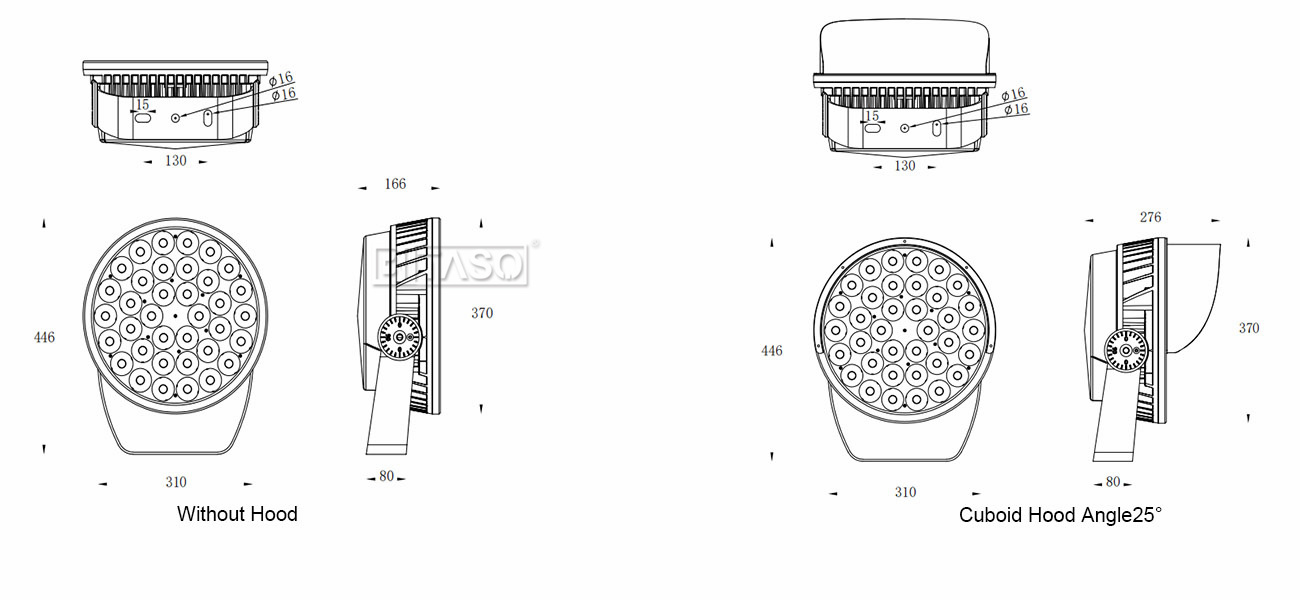

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

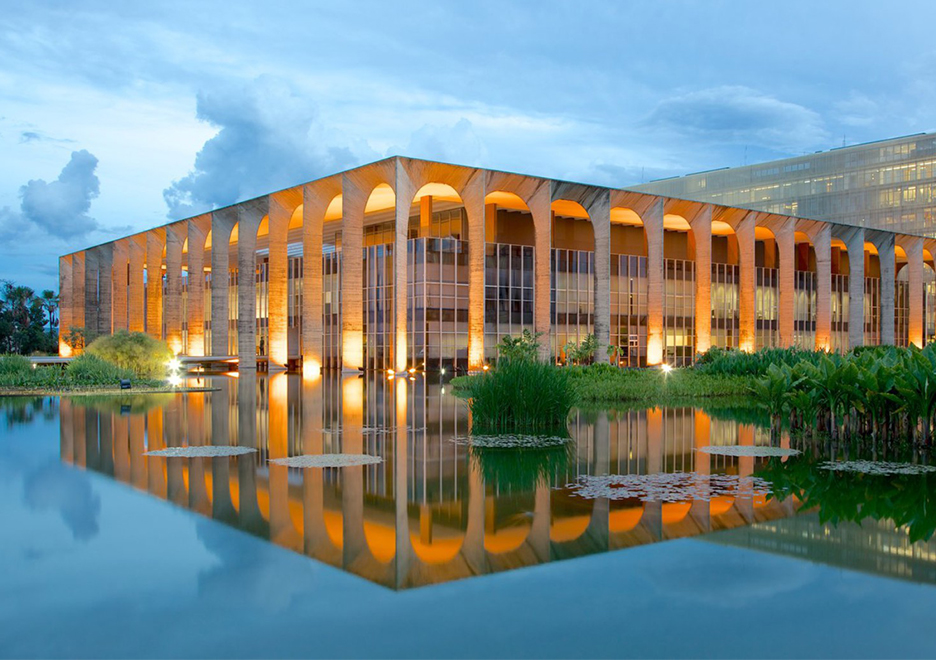

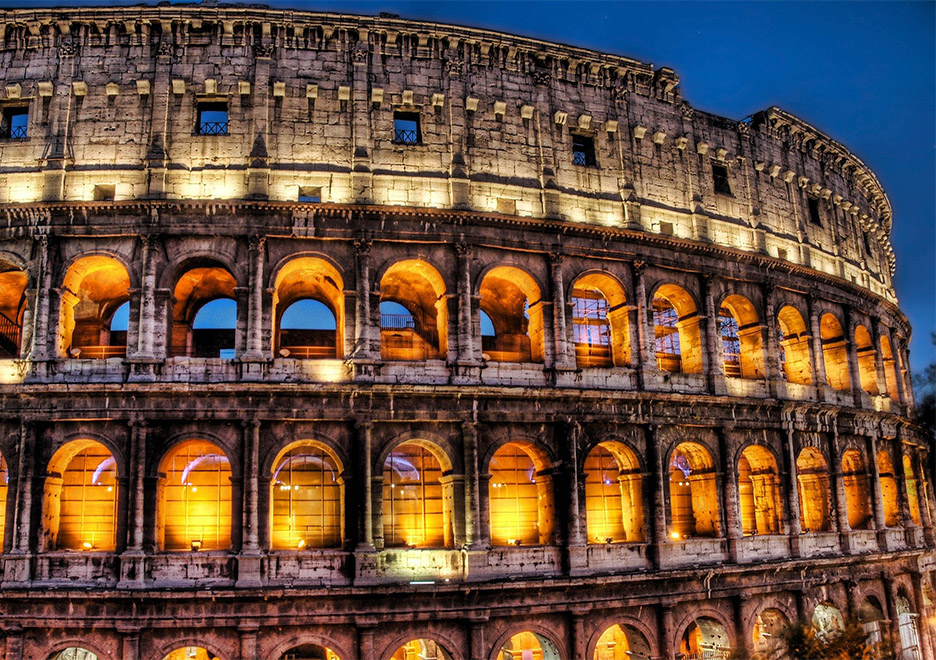

  • PROJECT REFERENCE

    PROJECT REFERENCE

  • PROJECT REFERENCE

    PROJECT REFERENCE
