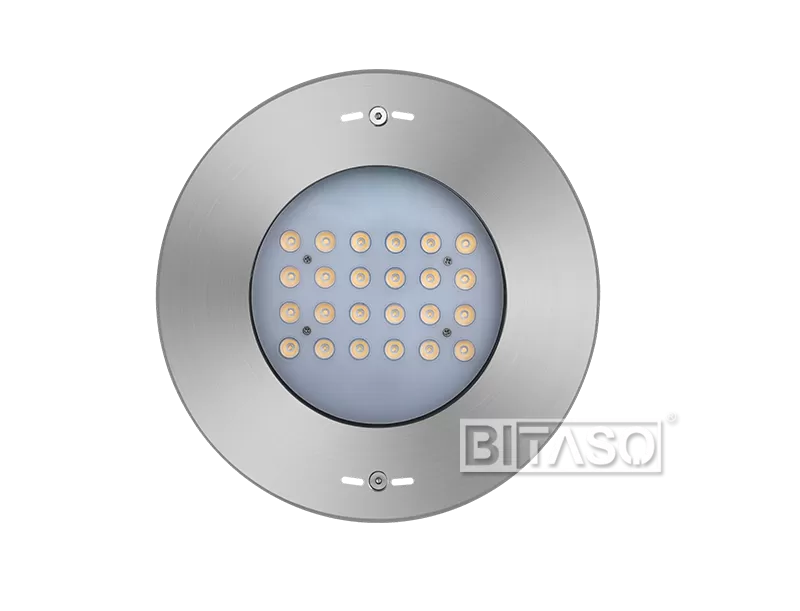

LED Pool Light come with an ingress protection of IP68. Offer Triac, PWM, 1-10V & Dali dimming options. Swimming pool lights can also be provided with RGB/W color changing LEDs with DMX control systems. These lights make the pool more attractive and help in highlighting the shape and texture of the pool. Swimming pool light illuminates the pool area and also covers dark areas.
ELECTRONICS
Power(Luminaire) | 25W/35W/50W/80W | Power Factor | >0.9 |
Input Voltage | AC12V AC24V DC12V DC24V | Driver Option | External Power Supply Required |
Dmming Type | ON/OFF, 1-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
Light Source | 24 PCS SMD | Lumen(Luminaire): | 2250LM-7200LM |
LED Brand | CREE/OSRAM | Luminaire Lminous Efficacy | 90LM/W |
Full White LED(FW) | 2700K-6500K | Tunable White | |
Multi Color | RGW,RGBW | CRI | Ra>85, Ra>90 |
LED Life Span | ≥50,000hrs | Beam Angle | 15°,30°,45°,15*50° |
MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories |
CONTROL SYSTEM
Control | ON/OFF, 1-10V, DALI, Triac, DMX512 | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
Corrosion Resistance | optional for marine environment | Passive Cooling | Stainless steel SUS 316L# |
Compliance | IK08, IP68, Class I | Certificate | IP68, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
Dimension | 280x60mm | Weight | 0.75KGS |
Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | Stainless steel SUS 316L# |
Finish | Stainless Steel | Mounting Type | Underwater/Wall/Ground |
OPTIONAL ACCESSORIES

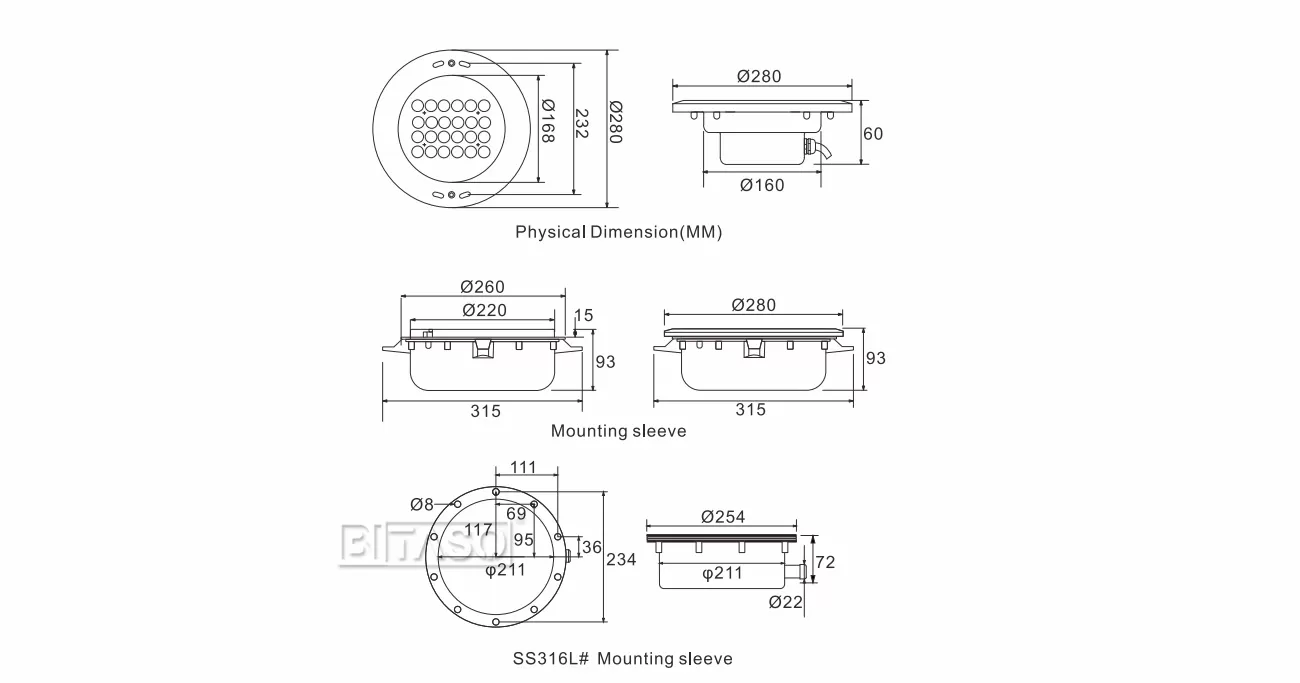

LUMINAIRE DIMENSION
