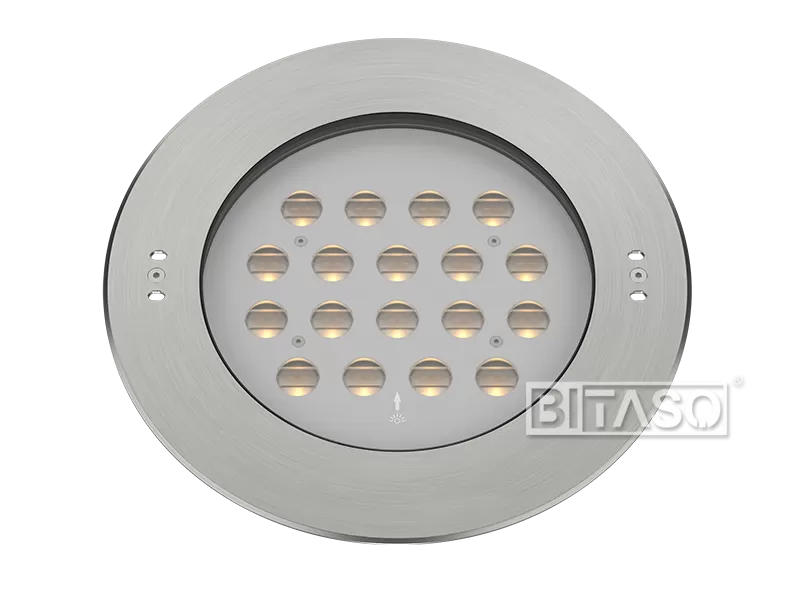

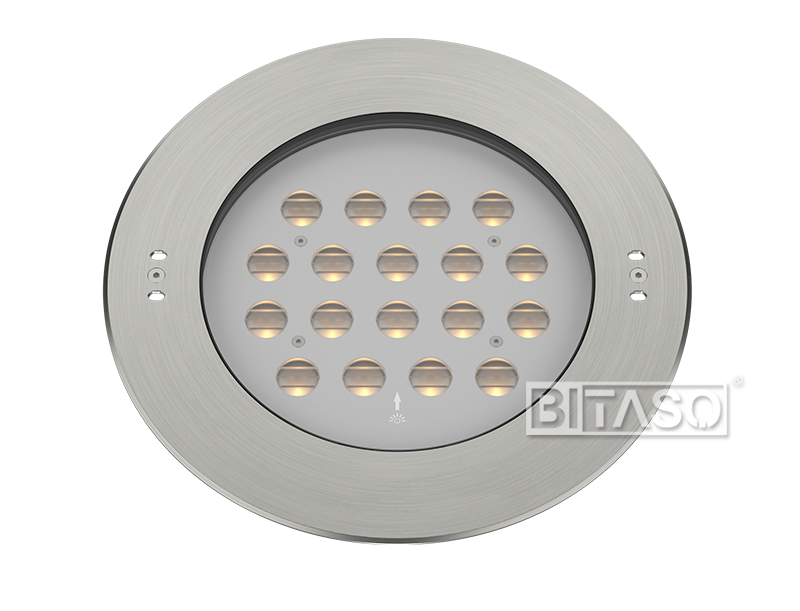

Aquarius D250

LED Pool Light come with an ingress protection of IP68. Offer Triac, PWM, 1-10V & Dali dimming options. Swimming pool lights can also be provided with RGB/W color changing LEDs with DMX control systems. These lights make the pool more attractive and help in highlighting the shape and texture of the pool. Swimming pool light illuminates the pool area and also covers dark areas.


ELECTRONICS

Power(Luminaire)36W/54W/72WPower Factor>0.9
Input VoltageDC24VDriver OptionExternal Power Supply Required
Dmming TypeON/OFF, 1-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light Source18 PCS SMDLumen(Luminaire):3240LM/4860LM/6480LM
LED BrandCREE/OSRAM/EPISTARLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700K-6500KTunable White
Multi ColorRGW,RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle15°,30°,45°,60°,45I35°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical Acessories


CONTROL SYSTEM

ControlON/OFF, 1-10V, DALI, Triac, DMX512DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive Cooling

Stainless steel SUS 316L#

ComplianceIK08, IP68, Class ICertificateIP68, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

MECHANICS

Dimension250x79mmWeight0.75KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialStainless steel SUS 316L#
FinishStainless SteelMounting TypeUnderwater/Wall/Ground


OPTIONAL ACCESSORIES

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

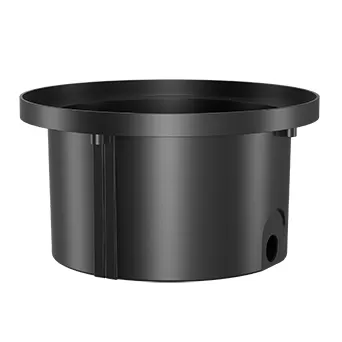

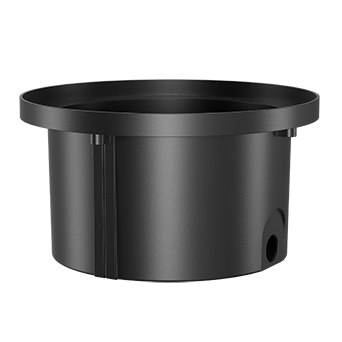

  • Mounting sleeve

    Mounting sleeve

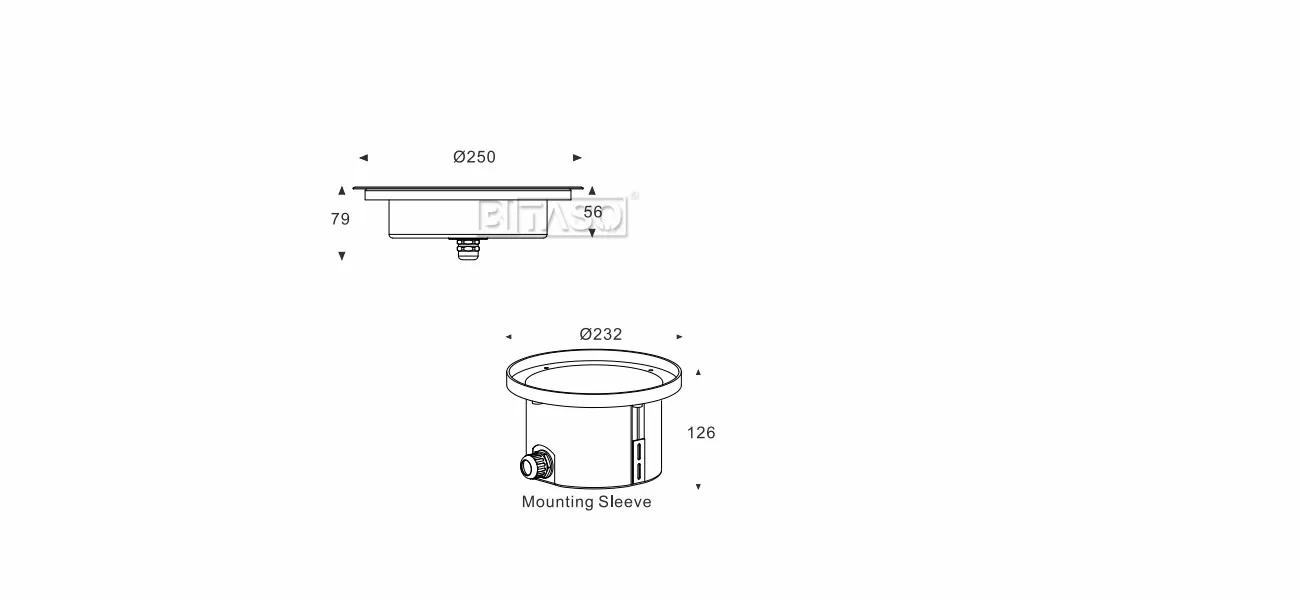

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

  • PROJECT REFERENCE

    PROJECT REFERENCE

    High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.


  • PROJECT REFERENCE

    PROJECT REFERENCE

    High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

  • PROJECT REFERENCE

    PROJECT REFERENCE

    High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

  • PROJECT REFERENCE

    PROJECT REFERENCE

    High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

  • PROJECT REFERENCE

    PROJECT REFERENCE

    High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
