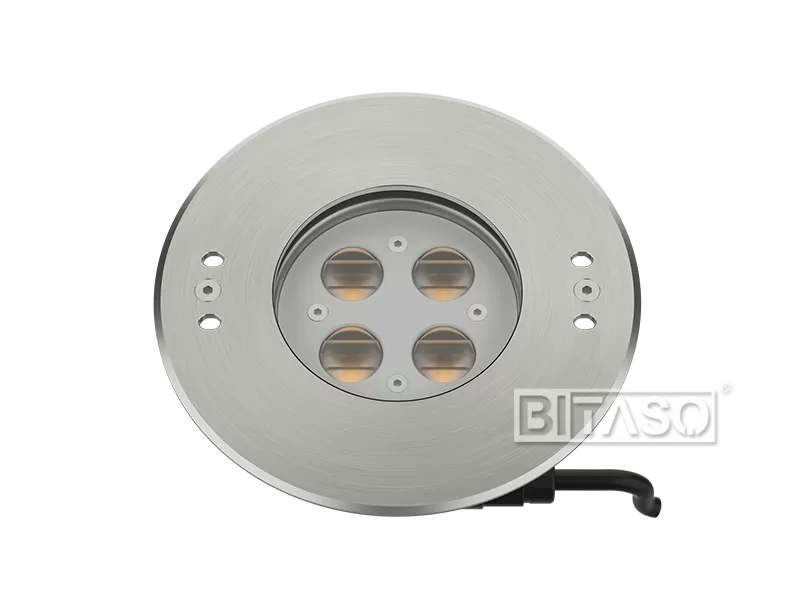

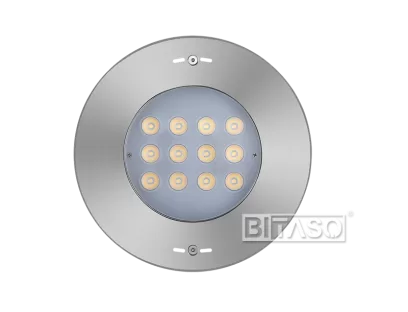

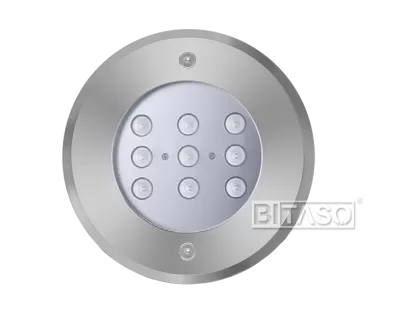

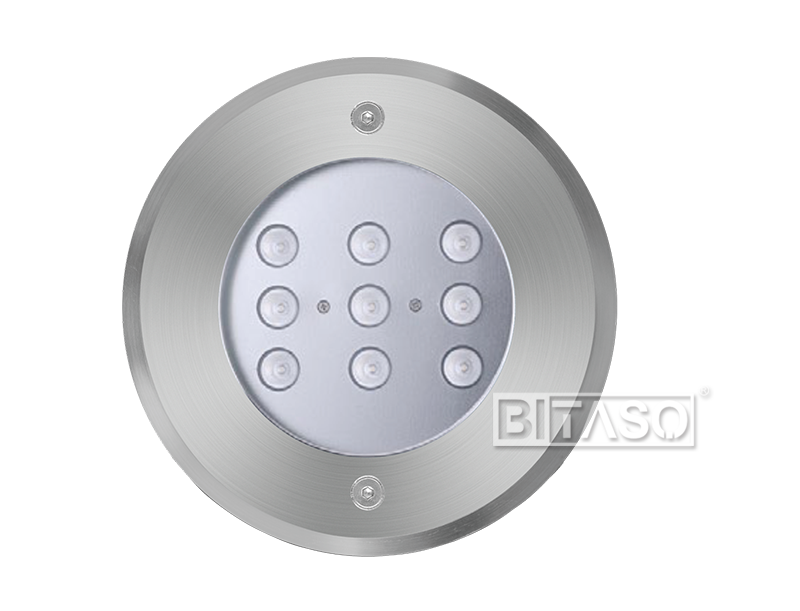

Aquarius D135

LED Pool Light come with an ingress protection of IP68. Offer Triac, PWM, 1-10V & Dali dimming options. Swimming pool lights can also be provided with RGB/W color changing LEDs with DMX control systems. These lights make the pool more attractive and help in highlighting the shape and texture of the pool. Swimming pool light illuminates the pool area and also covers dark areas.

Inquiry Now

ELECTRONICS

Power(Luminaire)	8W/12W/16W	Power Factor	>0.9
Input Voltage	DC24V	Driver Option	External Power Supply Required
Dmming Type	ON/OFF, 1-10V, DALI, Triac, DMX512	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	2/3/4/5 Pin

OPTICS

Light Source	4PCS SMD 1PCS COB	Lumen（Luminaire):	720LM/1080LM/1440LM
LED Brand	CREE/OSRAM/EPISTAR	Luminaire Lminous Efficacy	90LM/W
Full White LED(FW)	2700K-6500K	Tunable White
Multi Color	RGW,RGBW	CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Angle	15°,30°,45°,60°,45I35°(SMD) 24°,36°,36°(COB)
MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories

CONTROL SYSTEM

Control	ON/OFF, 1-10V, DALI, Triac, DMX512	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	Stainless steel SUS 316L#
Compliance	IK08, IP68, Class I	Certificate	IP68, CE, ETL, RoHS, CCC

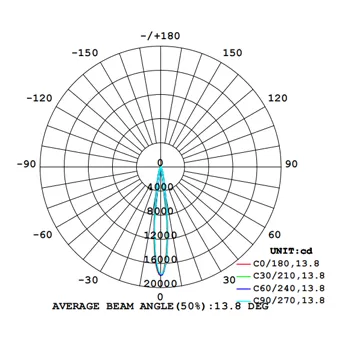

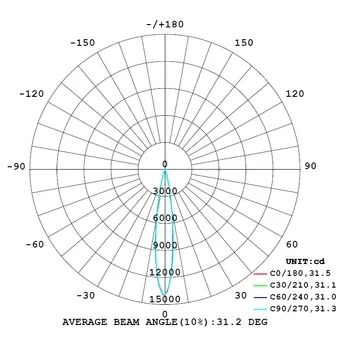

LIGHT DISTRIBUTION

MECHANICS

Dimension	135x58mm	Weight	0.75KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	Stainless steel SUS 316L#
Finish	Stainless Steel	Mounting Type	Underwater/Ground

OPTIONAL ACCESSORIES

M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

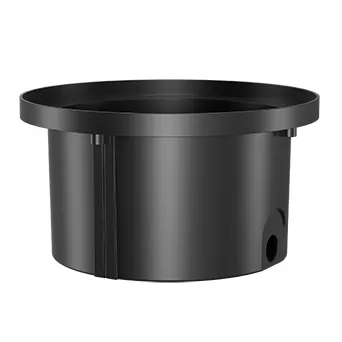

Mounting sleeve

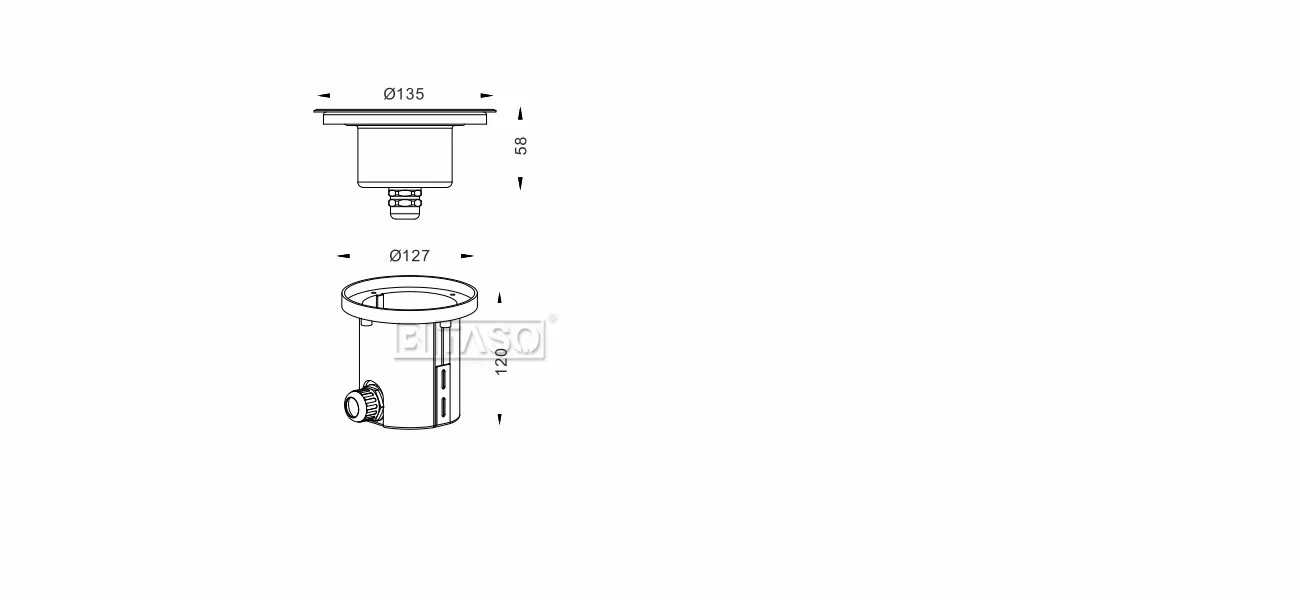

LUMINAIRE DIMENSION

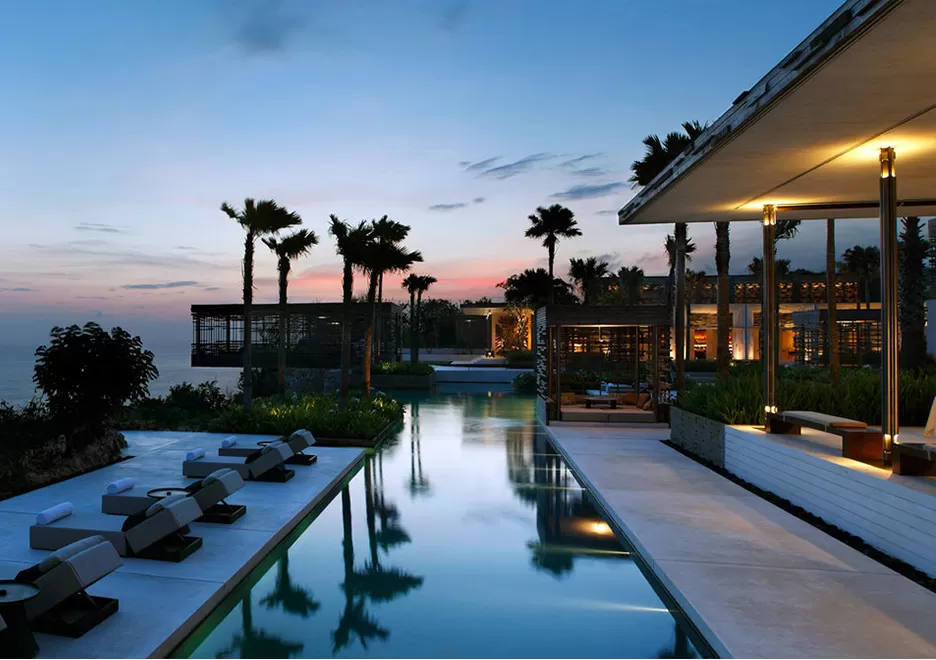

PROJECT REFERENCE

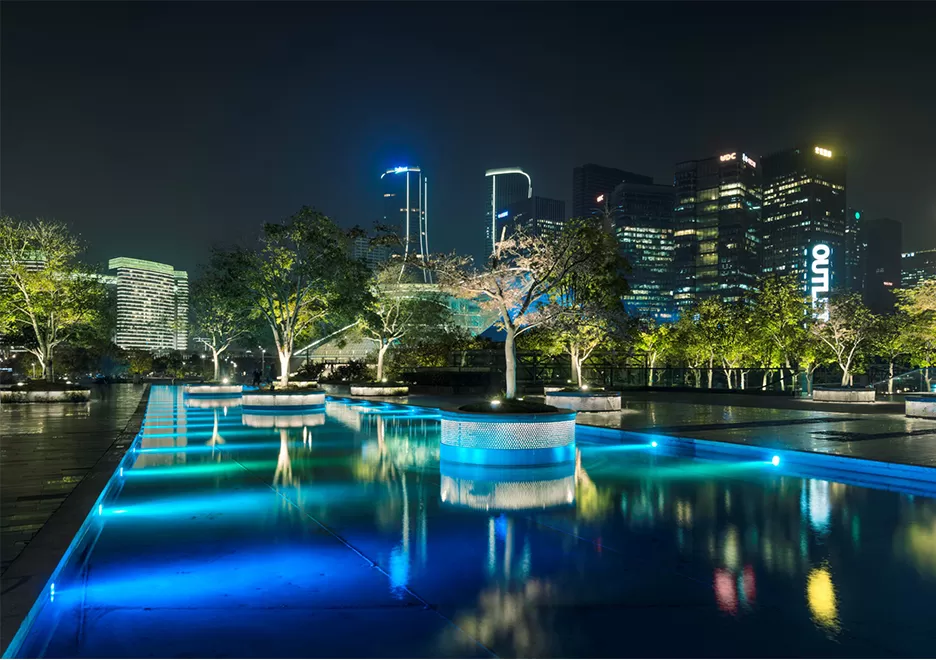

High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

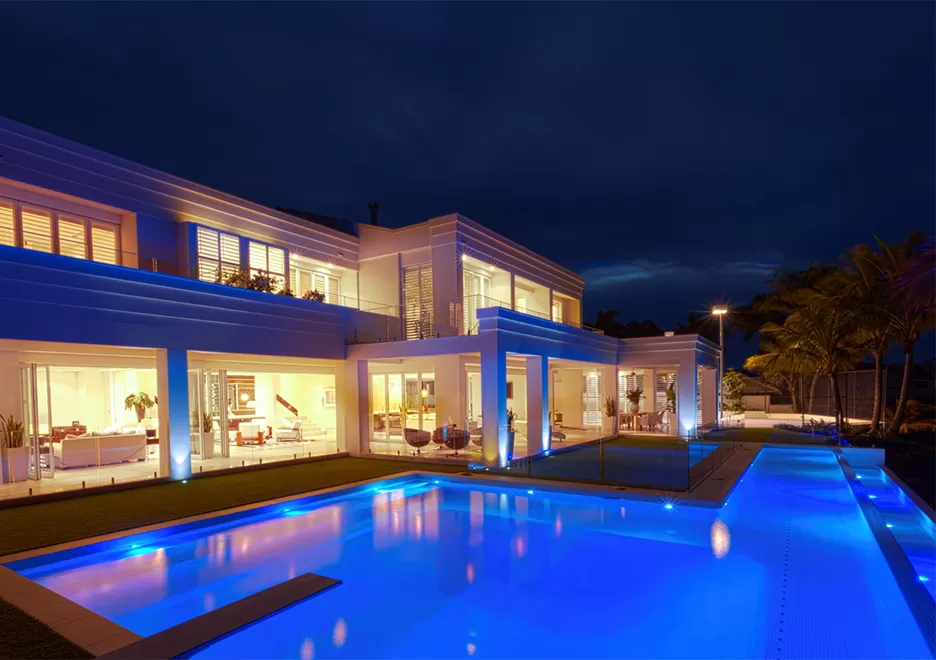

PROJECT REFERENCE

High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

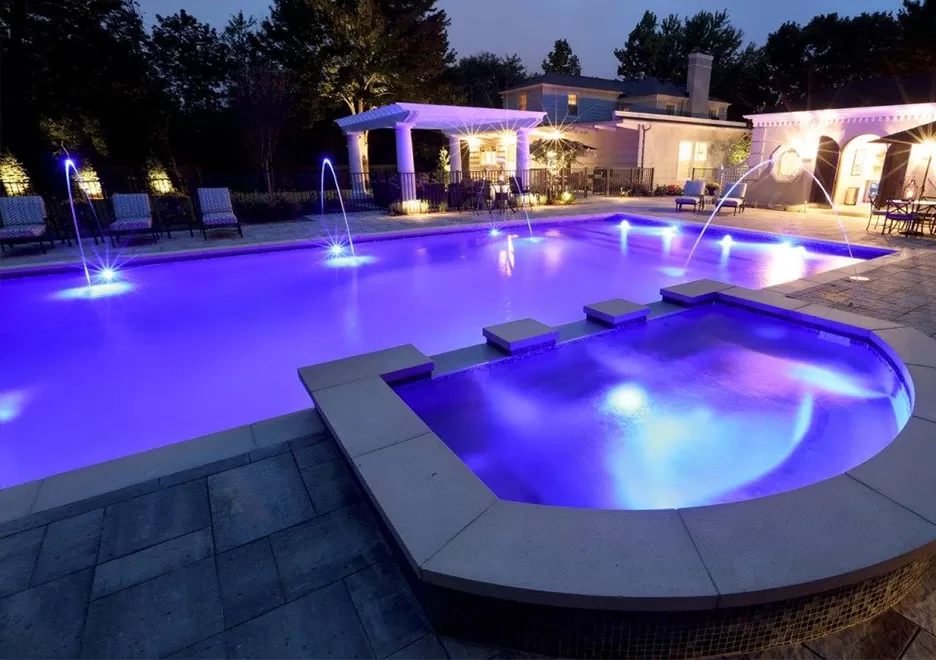

PROJECT REFERENCE

High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

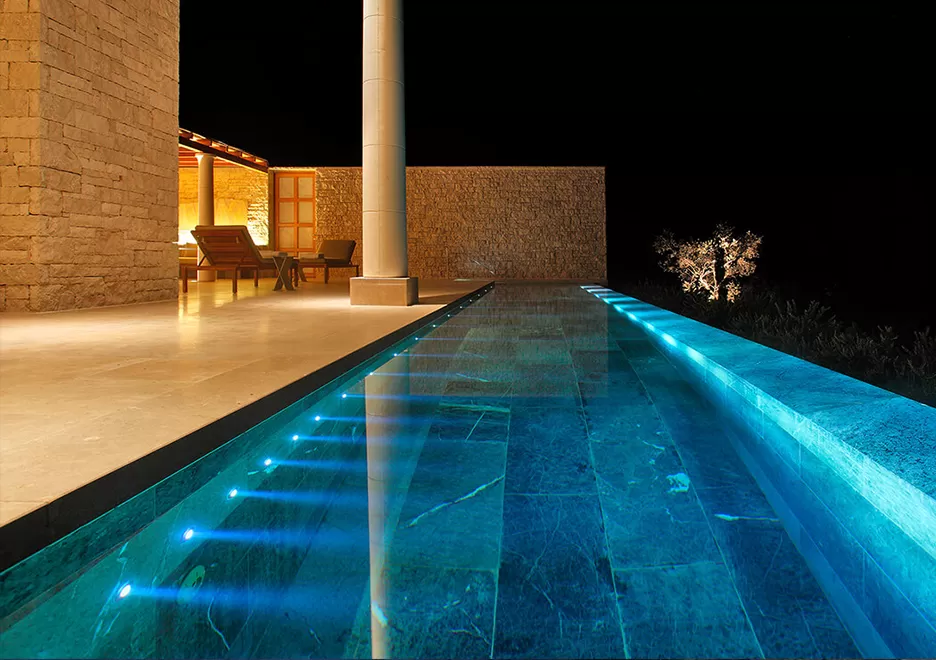

PROJECT REFERENCE
