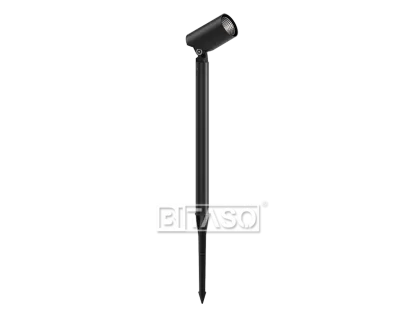

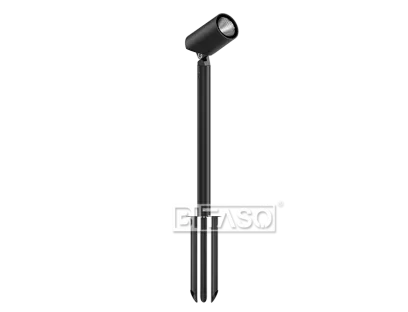

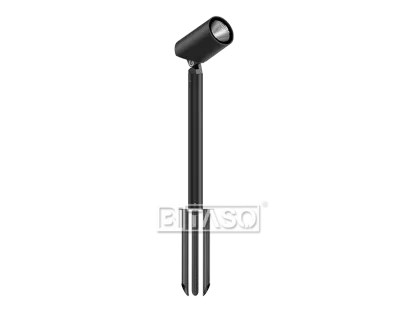

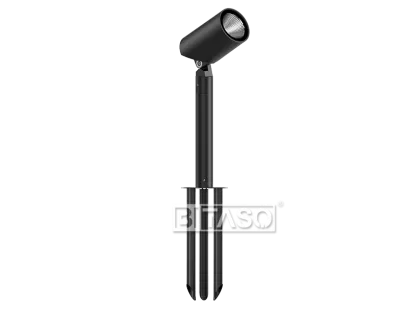

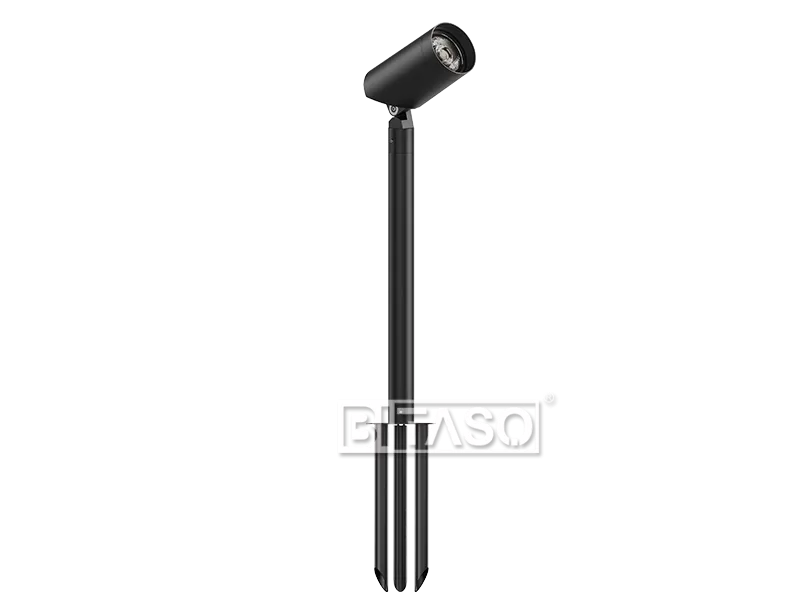

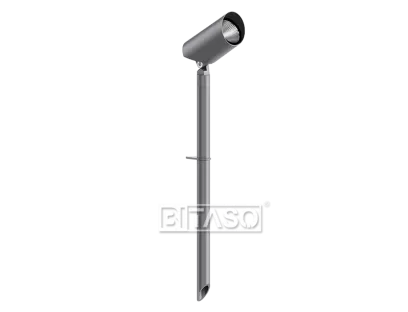

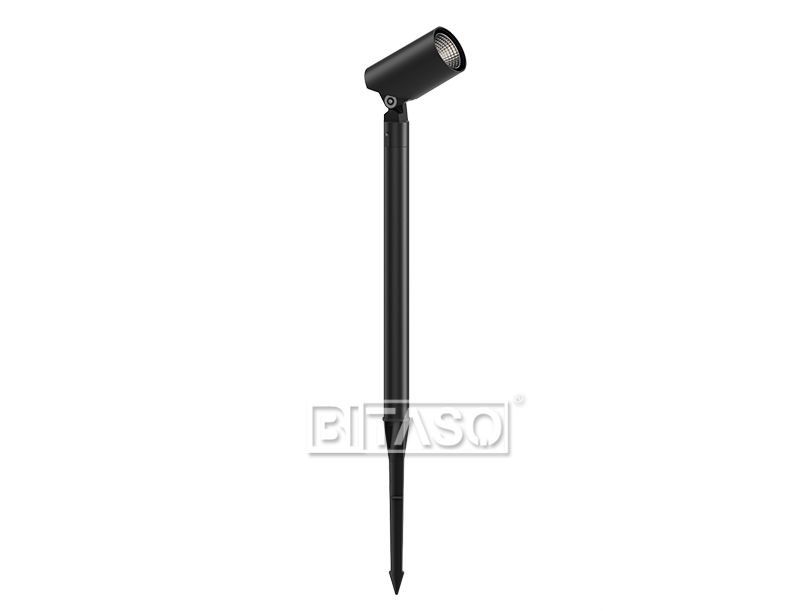

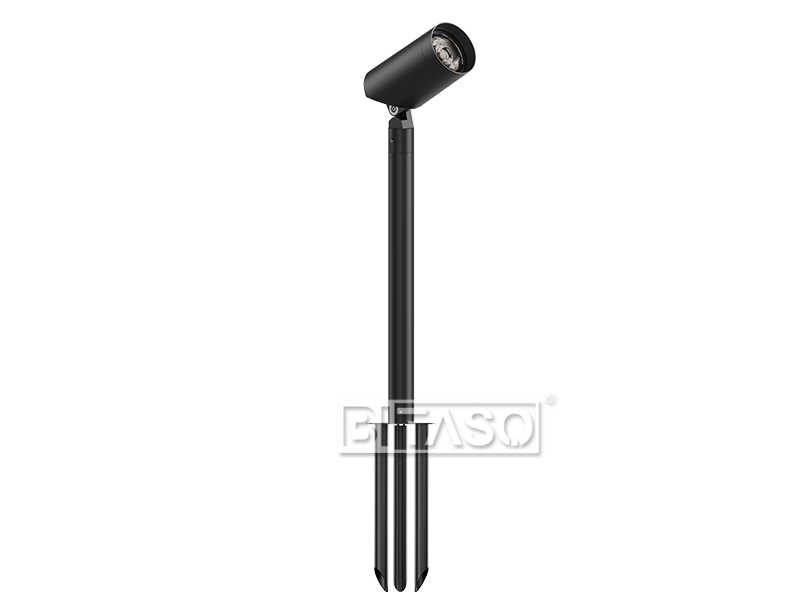

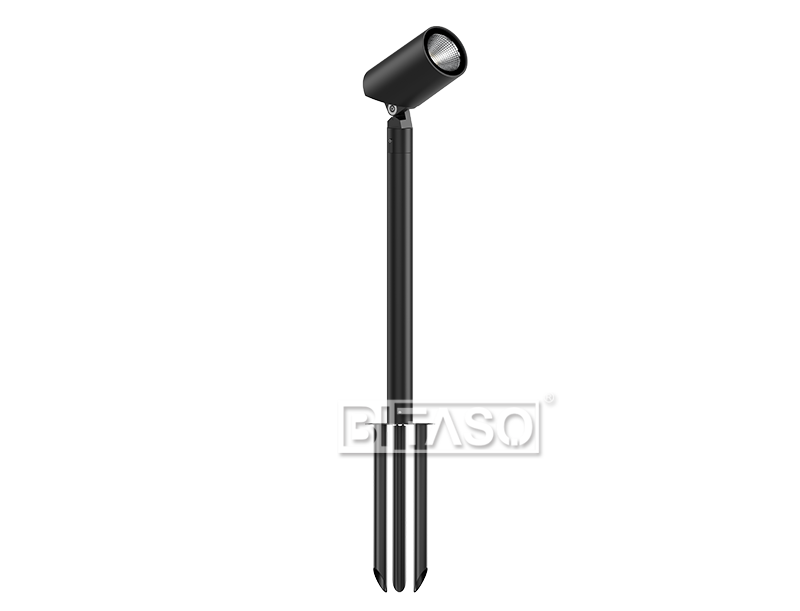

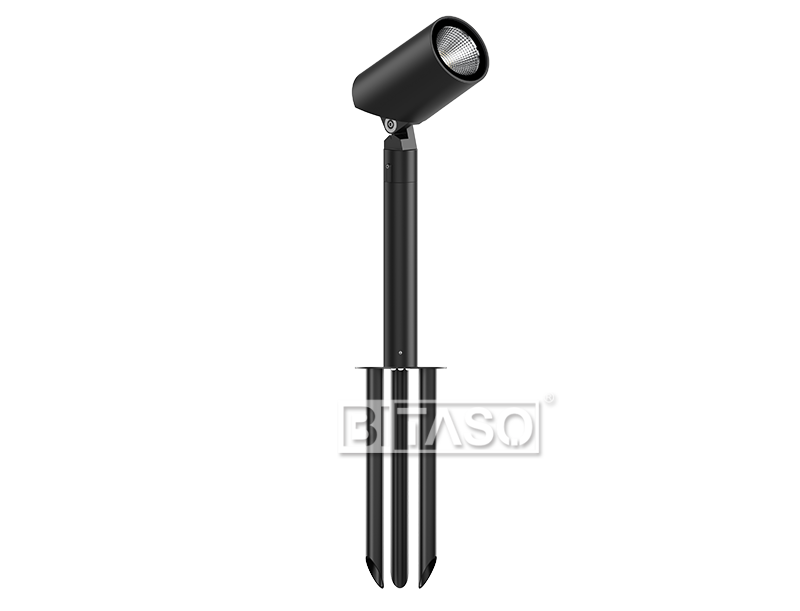

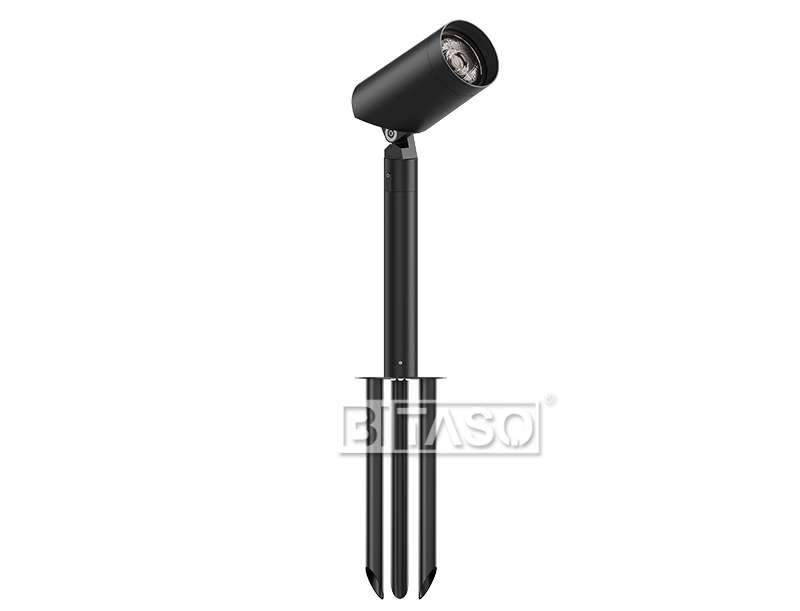

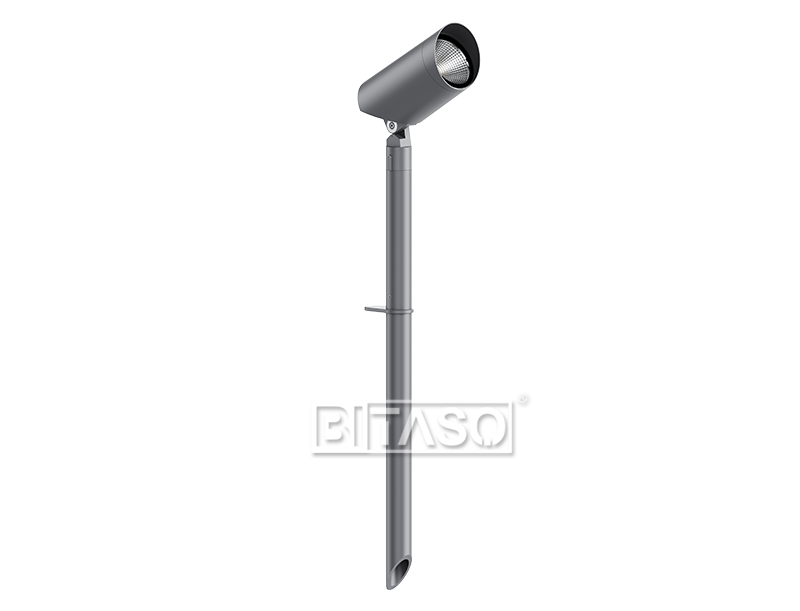

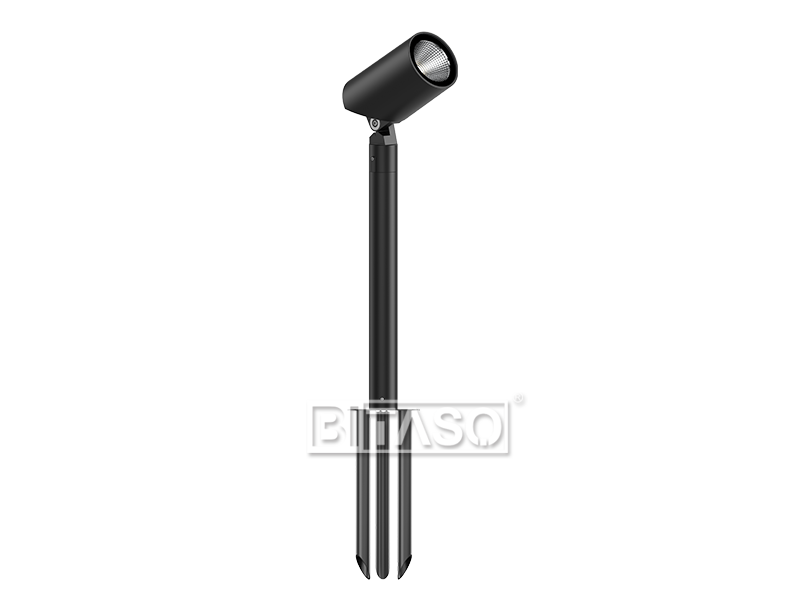

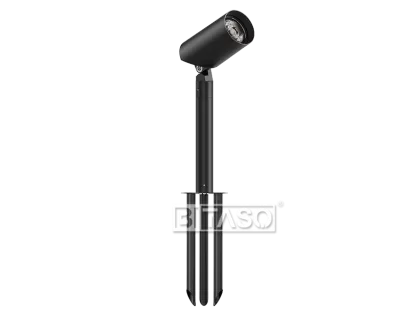

AGLAIA 2.0 D86 COB+LENS 3 LEGS SPIKE

AGLAIA outdoor ground three legs spike light is constructed with ADC12# Die-casting aluminum, black/grey/white finished color. Better weatherproof performance, withstand different outdoor weather.

AGLAIA LED projector lighting garden landscape three legs spike spot light, 2200-6500K, RGB, RGBW, IP66 waterproof outdoor wall lights, 6-48W, AC220-240V, DC24V. Bright and warm led garden yard spike lighting. Great for illuminating villa gardens, garden roads, shrubs and other landscapes so that your house, roads, trees are eye-catching even in the dark.

Inquiry Now

ELECTRONICS

Power(Luminaire)	15-24W	Power Factor	>0.9
Input Voltage	DC24V DC48V AC110-240V 50/60Hz	Driver Option	Integral control gear
Dmming Type	ON/OFF, 0-10V, DALI, Triac, DMX	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	2/3/4/5 Pin

OPTICS

Light Source	1PCS COB	Lumen（Luminaire):	1350LM-2160LM
LED Brand	CREE/BRIDGELUX/CITILED/TYANSHINE COB	Luminaire Lminous Efficacy	90LM/W
Full White LED(FW)	2700K/3000K/4000K/5000K/5700K	Tunable White	2700K/6500K
Multi Color	RGB, RGBW	CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Angle	15°,18°,34°,60°(Reflector Cup)/15°,24°,36°,50°,60°(Lens)
MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Cylindrical Hood Angle 45°, Cylindrical Hood, Honeycomb Louver

CONTROL SYSTEM

Control	ON/OFF, 0-10V, DALI, Triac, DMX	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	ADC12# Die-casting aluminum housing
Compliance	IK08, IP66, Class I	Certificate	IP66, CE, ETL, RoHS, CCC

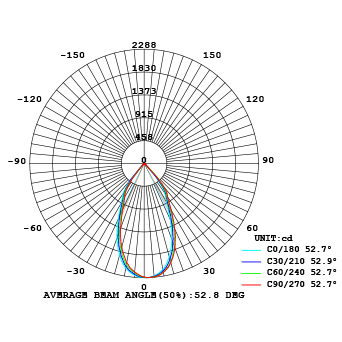

LIGHT DISTRIBUTION

MECHANICS

Dimension	86x146mm	Weight	1.05KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	ADC12# Die-casting aluminum housing
Finish	Black/Grey/White	Mounting Type	Floor/Ground

OPTIONAL ACCESSORIES

Cylindrical Hood
CylindricalHood Angle45°
Honeycomb Grille
Honeycomb Louver
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

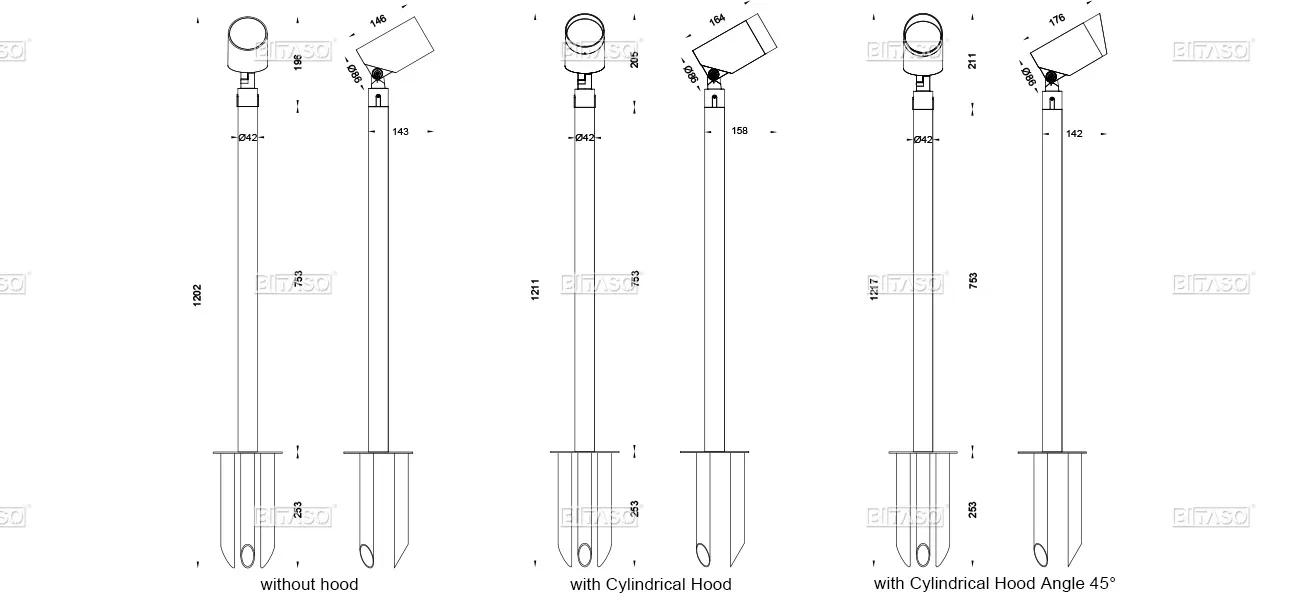

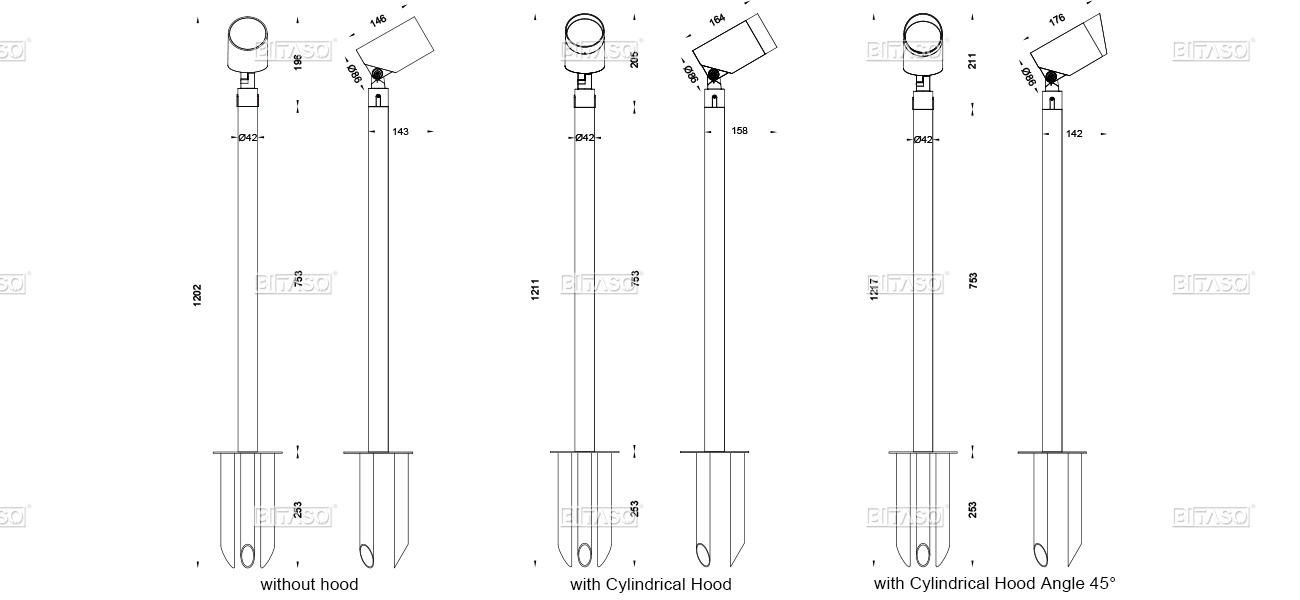

LUMINAIRE DIMENSION

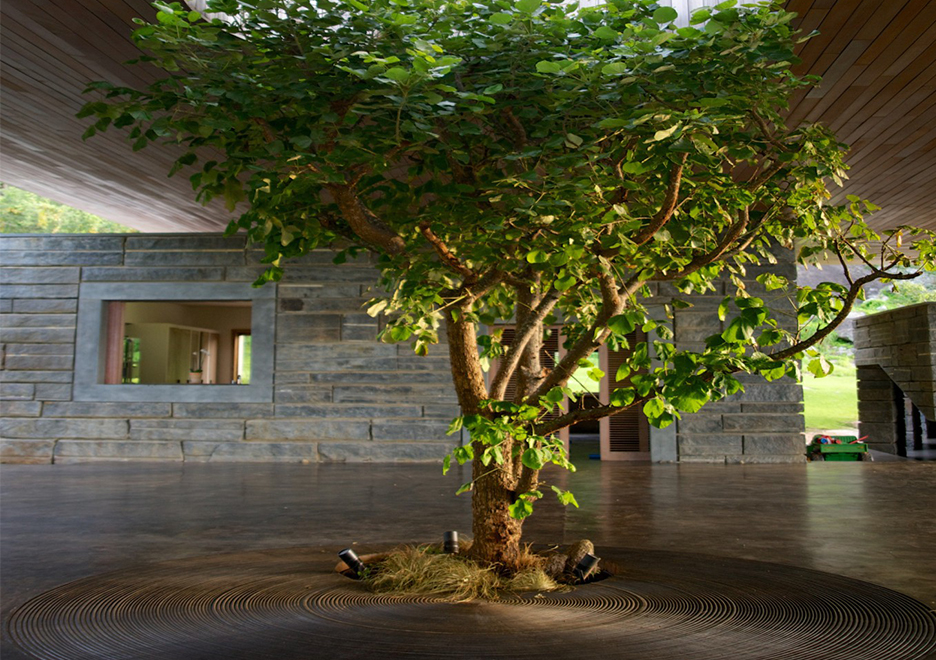

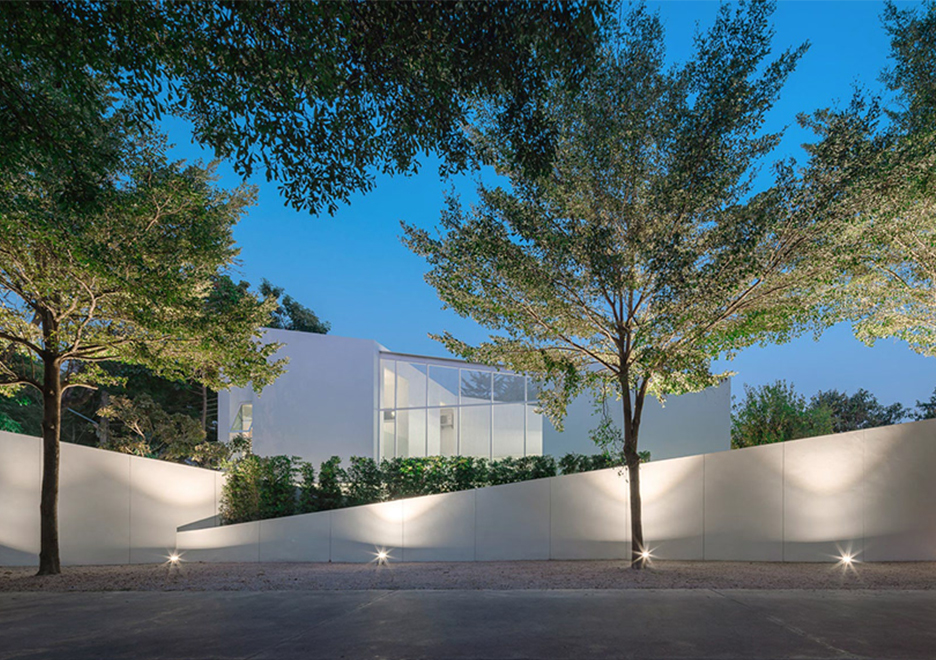

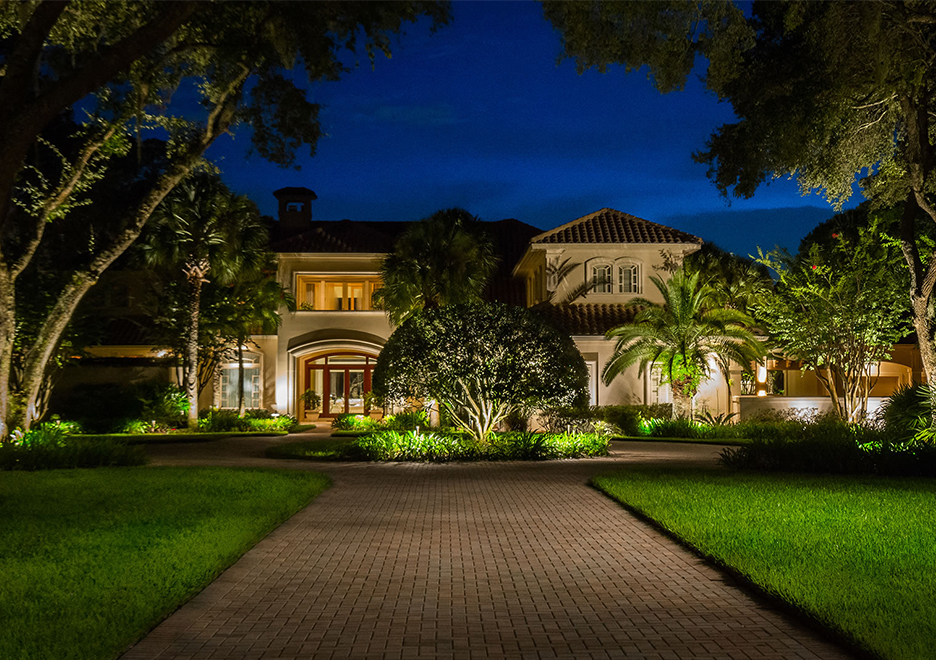

PROJECT REFERENCE

BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.

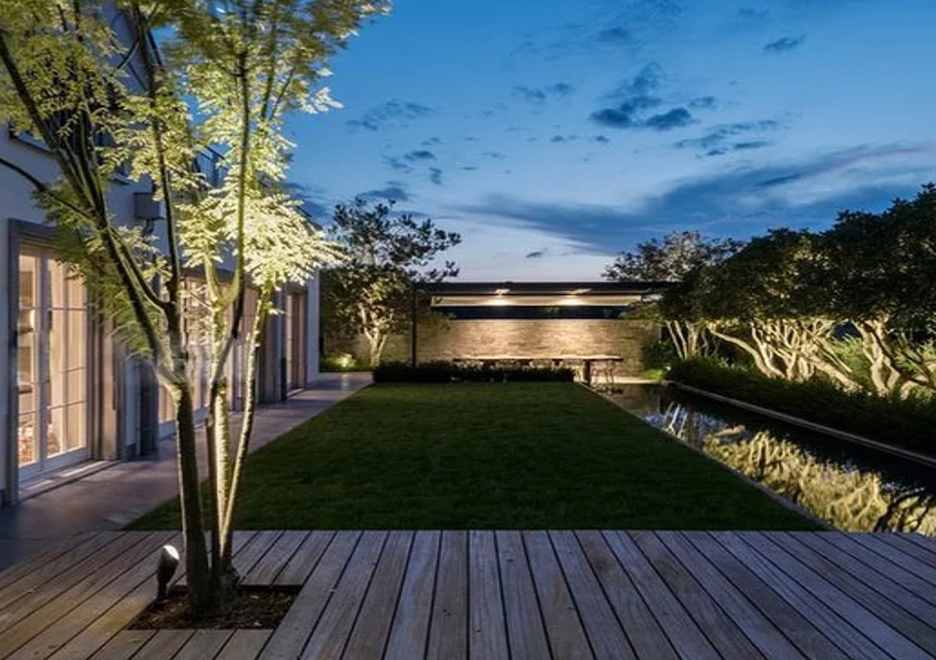

PROJECT REFERENCE
