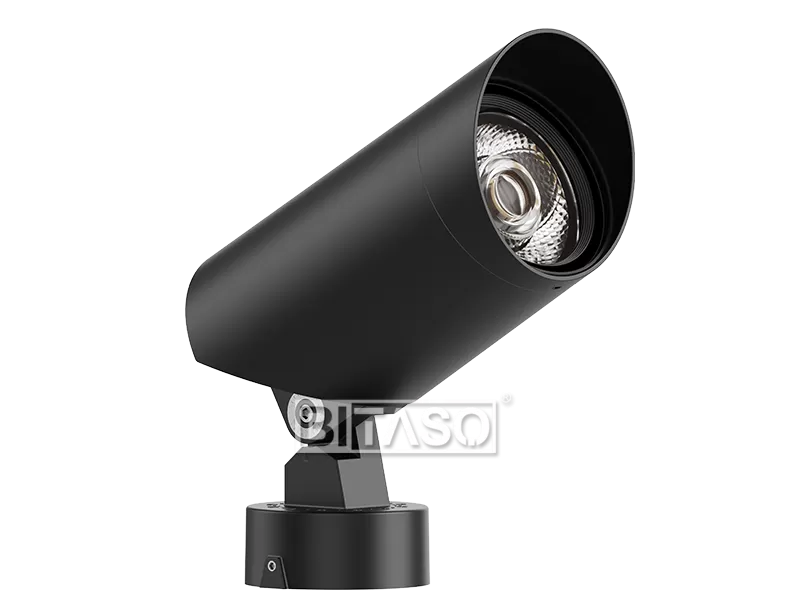

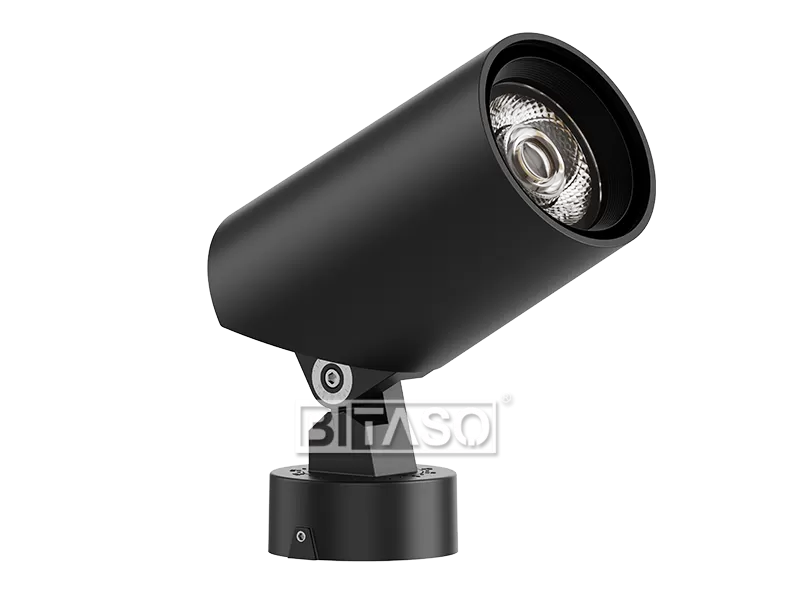

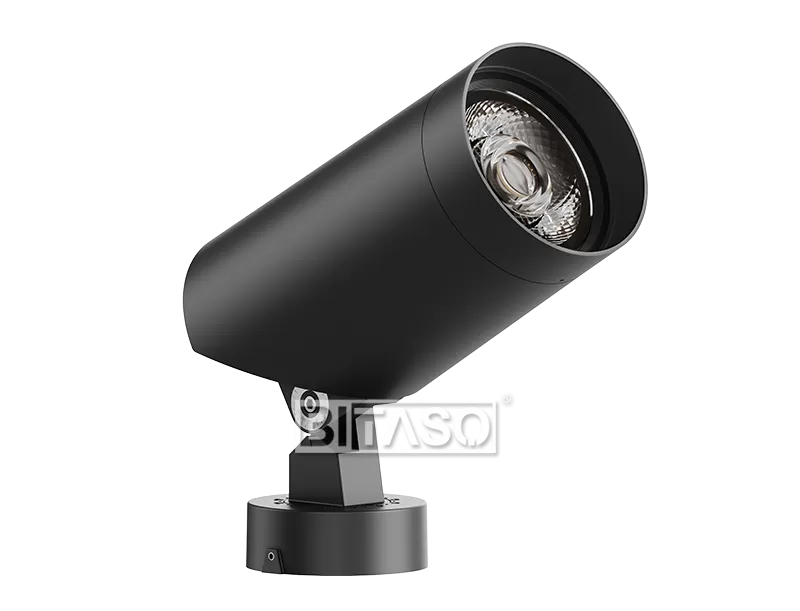

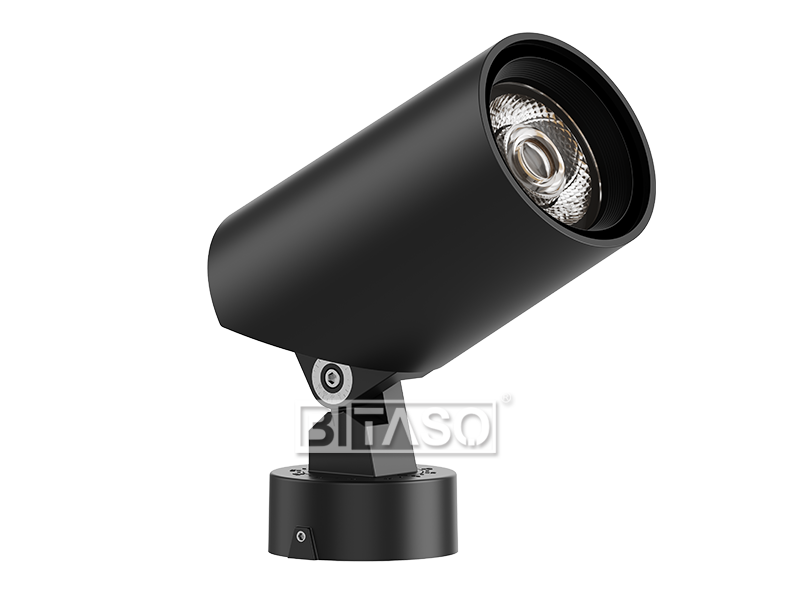

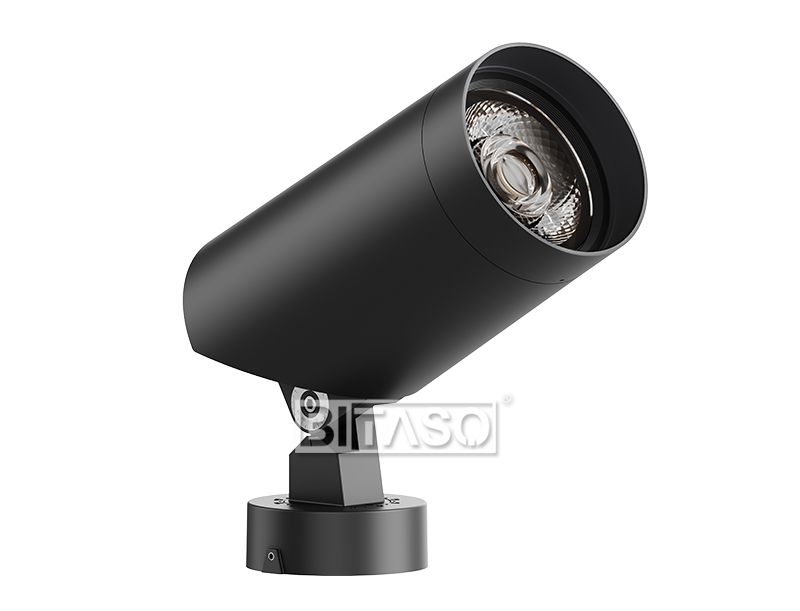

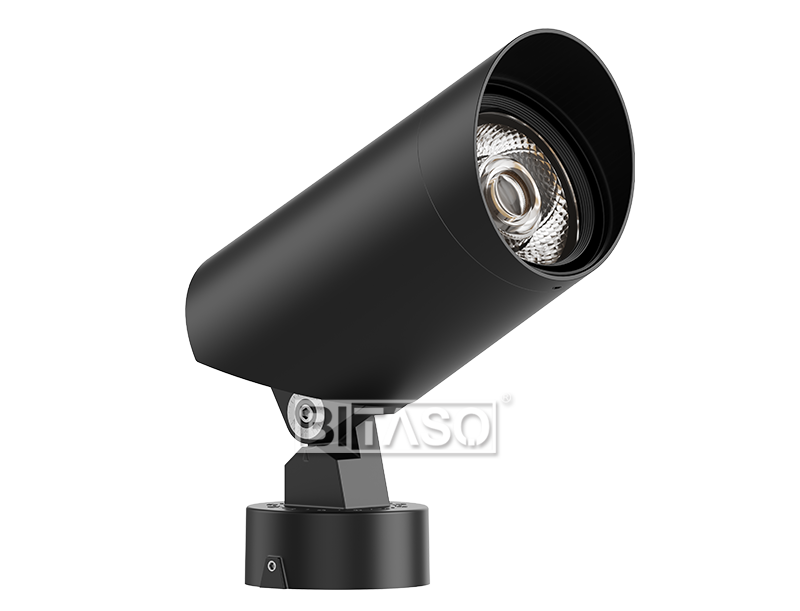

AGLAIA D86 COB Lens landscape spotlight, 15W/20W/22W/24W, 2700-6500K, Tunable White (2700/6500K), RGB, RGBW, 15°/24°/36°/50°/60° beam angle, 110-240VAC, 24VDC, 48VDC, Triac/0-10V/DALI/DMX512 dimmable led architectural lighting.
Made of ADC12# die-cast aluminum, the AGLAIA series surface mounted projector light have good sealing and IP66 waterproof.
ELECTRONICS
| Power(Luminaire) | 15-24W | Power Factor | >0.9 |
| Input Voltage | DC24V DC48V AC110-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 1PCS COB | Lumen（Luminaire): | 1350LM-2160LM |
| LED Brand | CREE/BRIDGELUX/CITILED/TYANSHINE COB | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2700K/3000K/4000K/5000K/5700K | Tunable White | 2700K/6500K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 15°,18°,34°,60°(Reflector Cup)/15°,24°,36°,50°,60°(Lens) |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Cylindrical Hood Angle 45°, Cylindrical Hood, Honeycomb Louver |
CONTROL SYSTEM
| Control | ON/OFF, 0-10V, DALI, Triac, DMX | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP66, Class I | Certificate | IP66, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
| Dimension | 86x146x169mm | Weight | 0.55KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | Black/Grey/White | Mounting Type | Floor/Ground/Tree |
OPTIONAL ACCESSORIES
Cylindrical Hood
CylindricalHood Angle45°
Honeycomb Grille
Honeycomb Louver
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector
LUMINAIRE DIMENSION
PROJECT REFERENCE
