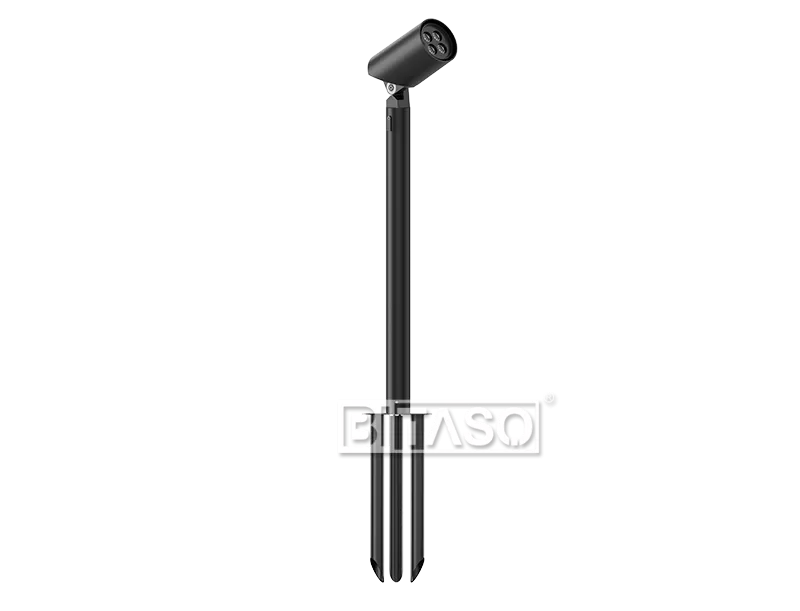

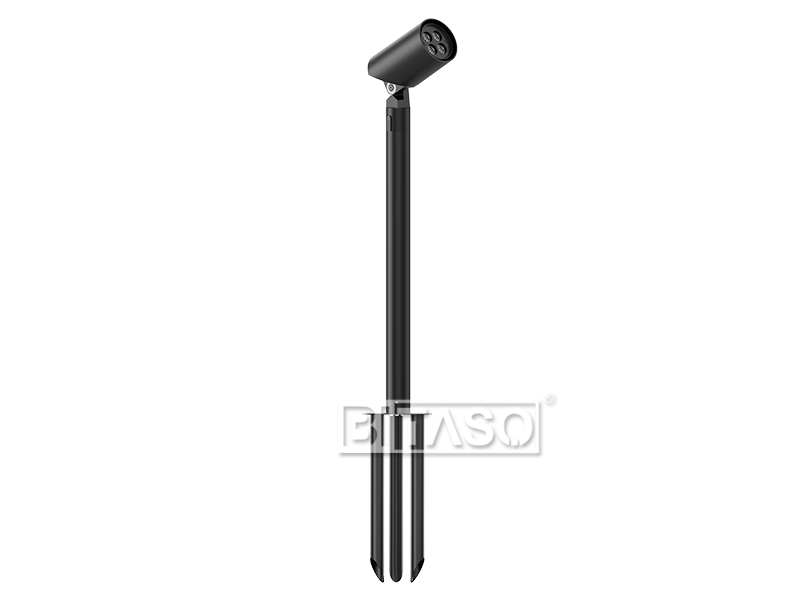

AGLAIA 2.0 D86 SMD 3 LEGS SPIKE

AGLAIA outdoor ground three legs spike light is constructed with ADC12# Die-casting aluminum, black/grey/white finished color. Better weatherproof performance, withstand different outdoor weather.

AGLAIA LED projector lighting garden landscape three legs spike spot light, 2200-6500K, RGB, RGBW, IP66 waterproof outdoor wall lights, 6-48W, AC220-240V, DC24V. Bright and warm led garden yard spike lighting. Great for illuminating villa gardens, garden roads, shrubs and other landscapes so that your house, roads, trees are eye-catching even in the dark.

ELECTRONICS

Power(Luminaire)10-24WPower Factor>0.9
Input VoltageDC12V DC24V DC36V DC48V AC110-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light Source4PCS SMDLumen(Luminaire):1350LM-2160LM
LED BrandOSRAM/CREE/TYANSHINE/LUMINUS SMDLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700K/3000K/3500K/4000K/5000K/6500KTunable White2700K/6500K
Multi ColorGreen, Red, Blue, Yellow, Amber, RGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,10°x22°,15°x55°,20°x60°,etc.
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesCylindrical Hood Angle 45°, Cylindrical Hood, Honeycomb Louver


CONTROL SYSTEM

ControlON/OFF, 0-10V, DALI, Triac, DMX512DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

MECHANICS

Dimension86x146mmWeight1.05KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishBlack/Grey/WhiteMounting TypeFloor/Ground


OPTIONAL ACCESSORIES

  • Cylindrical Hood

    Cylindrical Hood

  • CylindricalHood Angle45°

    CylindricalHood Angle45°

  • Honeycomb Grille

    Honeycomb Grille

  • Honeycomb Louver

    Honeycomb Louver

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

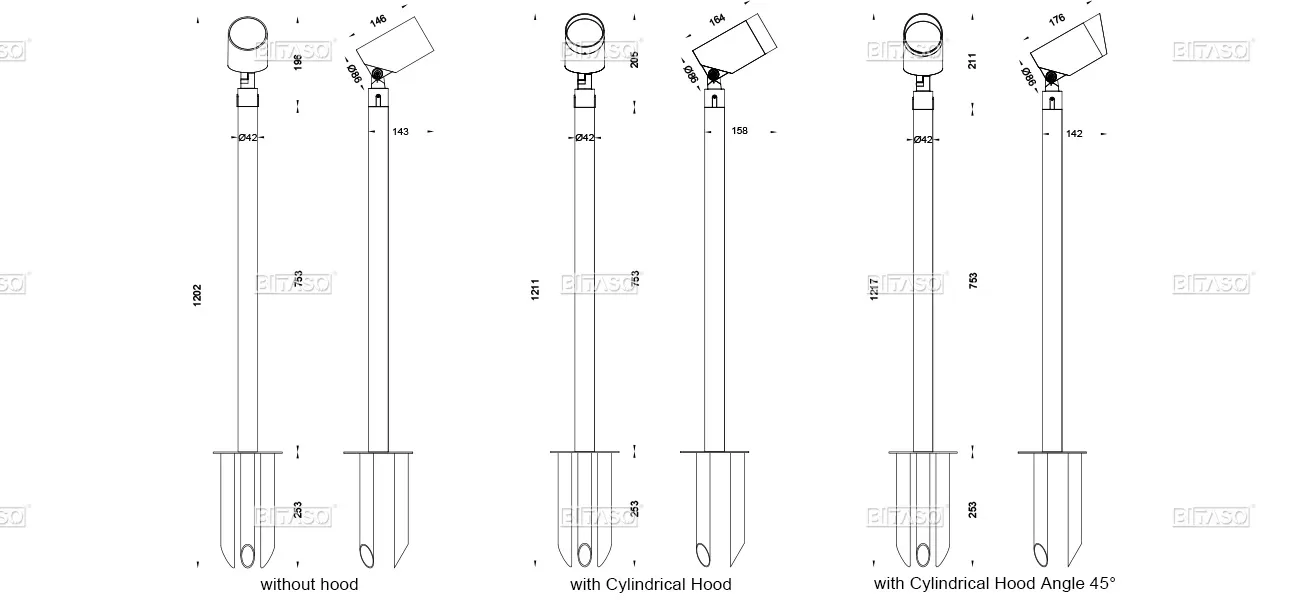

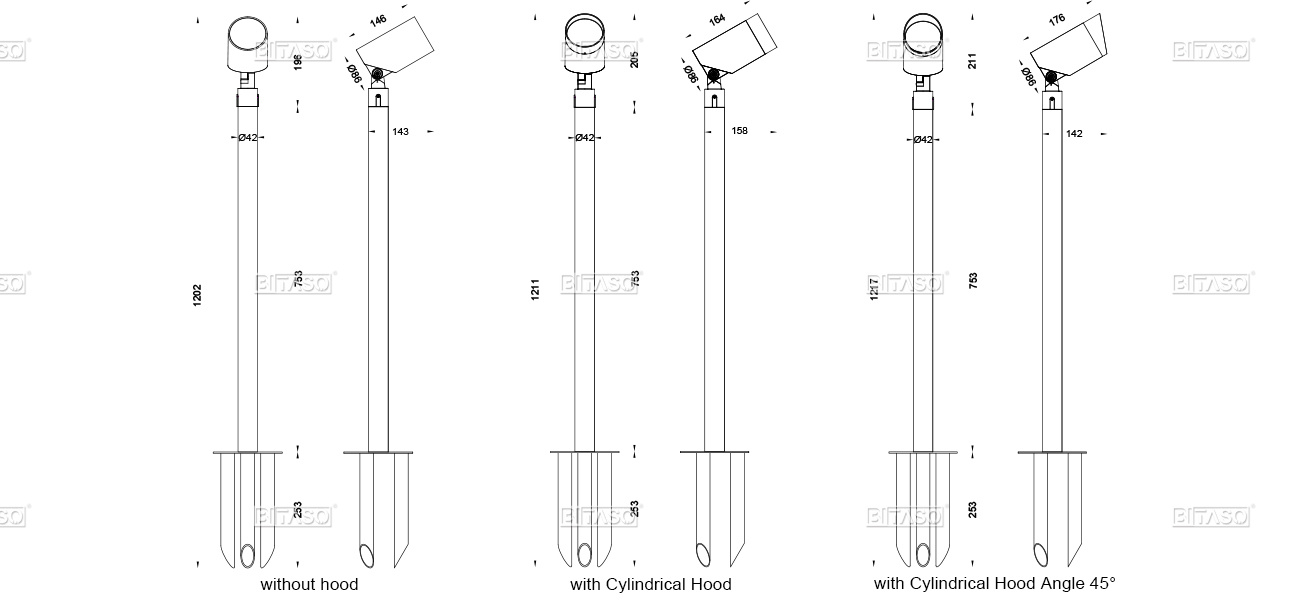

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.
