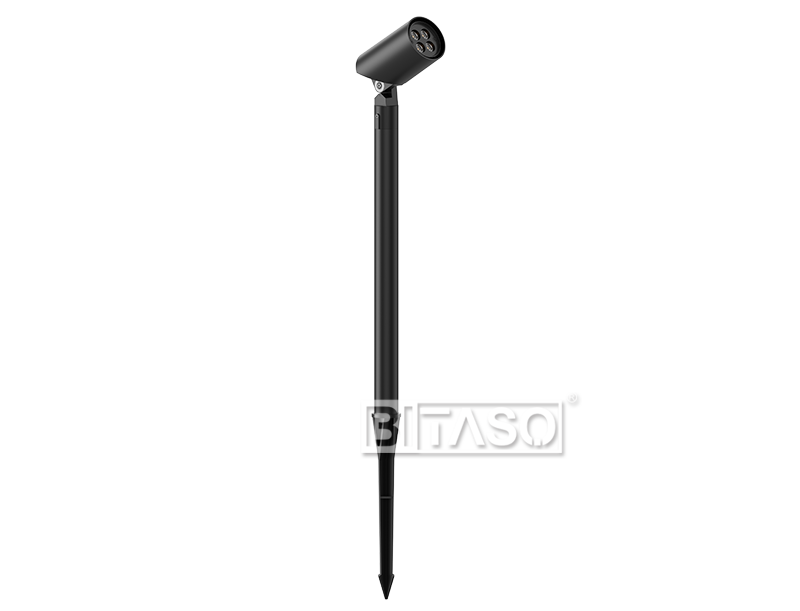

AGLAIA 2.0 D86 SMD Spike+Pole

AGLAIA outdoor ground spike light is constructed with ADC12# die-casting aluminum, not rusty and corroded. Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort. Discreet and compact aesthetically designed architectural outdoor spotlight, ideal for glare-free accent lighting, floodlighting and wall washing in the outdoor area.

AGLAIA LED projector lighting garden landscape spike light, 2200-6500K, RGB, RGBW, IP66 waterproof outdoor wall lights, 6-48W, AC220-240V, DC24V.

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	10-24W	Power Factor	>0.9
Input Voltage	DC12V DC24V DC36V DC48V AC110-240V 50/60Hz	Driver Option	Integral control gear
Dmming Type	ON/OFF, 0-10V, DALI, Triac, DMX512	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	2/3/4/5 Pin

OPTICS

Light Source	4PCS SMD	Lumen（Luminaire):	1350LM-2160LM
LED Brand	OSRAM/CREE/TYANSHINE/LUMINUS SMD	Luminaire Lminous Efficacy	90LM/W
Full White LED(FW)	2700K/3000K/3500K/4000K/5000K/6500K	Tunable White	2700K/6500K
Multi Color	Green, Red, Blue, Yellow, Amber, RGB, RGBW	CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Angle	5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,10°x22°,15°x55°,20°x60°,etc.
MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Cylindrical Hood Angle 45°, Cylindrical Hood, Honeycomb Louver

CONTROL SYSTEM

Control	ON/OFF, 0-10V, DALI, Triac, DMX512	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	ADC12# Die-casting aluminum housing
Compliance	IK08, IP66, Class I	Certificate	IP66, CE, ETL, RoHS, CCC

LIGHT DISTRIBUTION

MECHANICS

Dimension	86x146mm	Weight	0.75KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	ADC12# Die-casting aluminum housing
Finish	Black/Grey/White	Mounting Type	Floor/Ground/Tree

OPTIONAL ACCESSORIES

Cylindrical Hood
CylindricalHood Angle45°
Honeycomb Grille
Honeycomb Louver
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

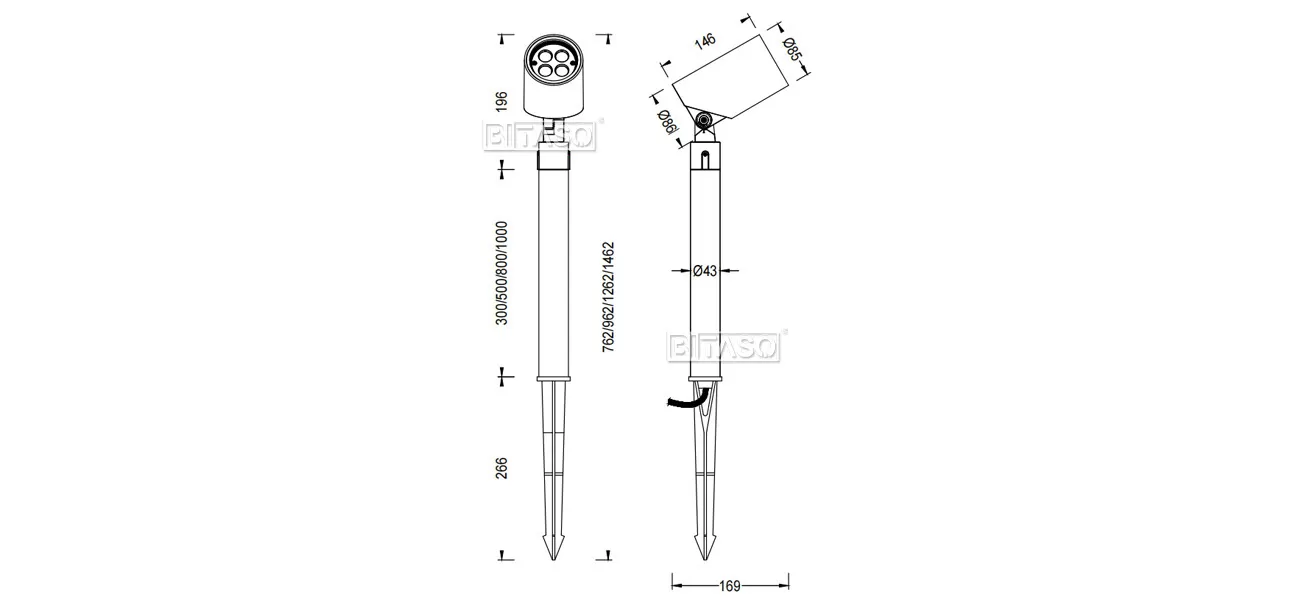

LUMINAIRE DIMENSION

PROJECT REFERENCE
